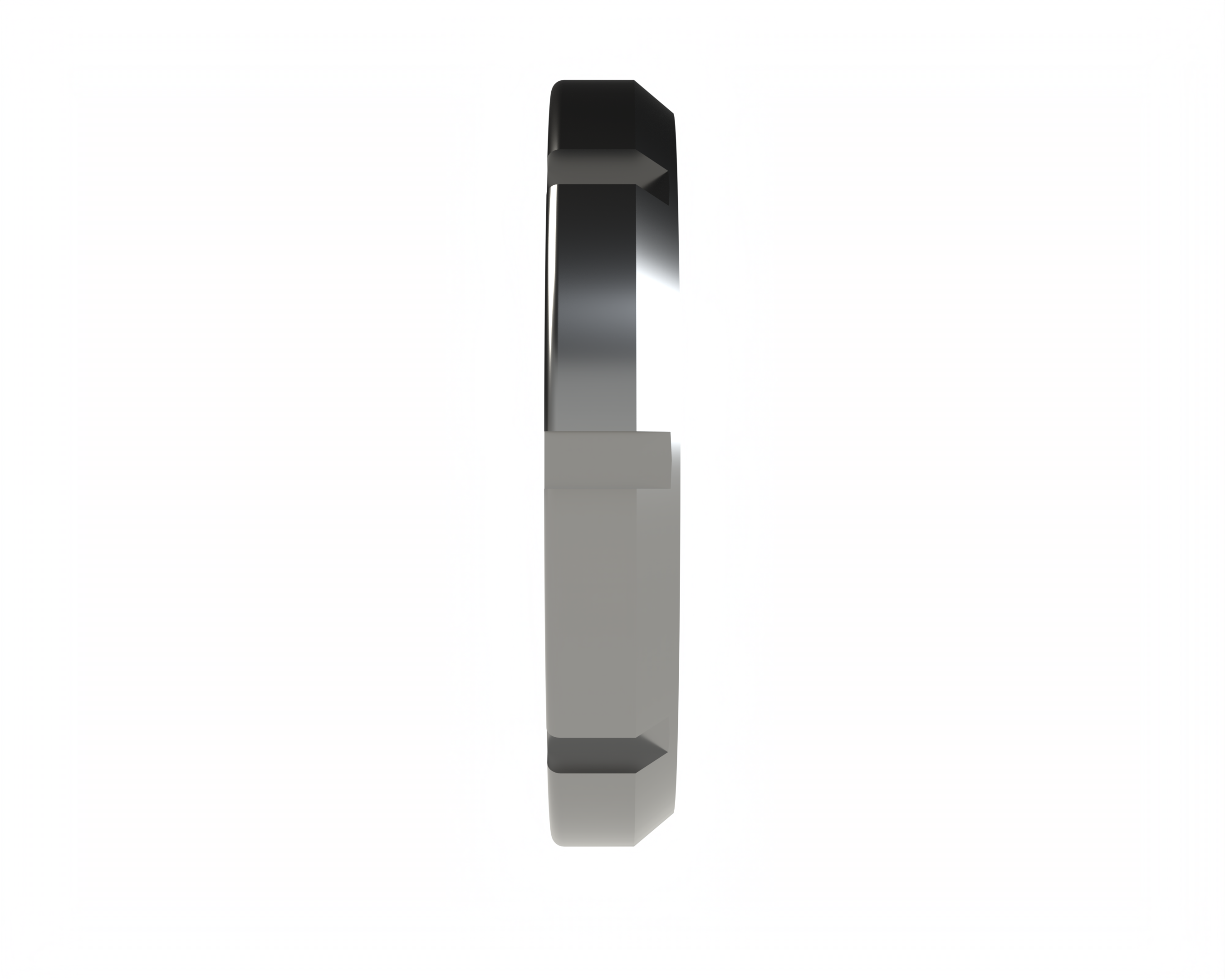

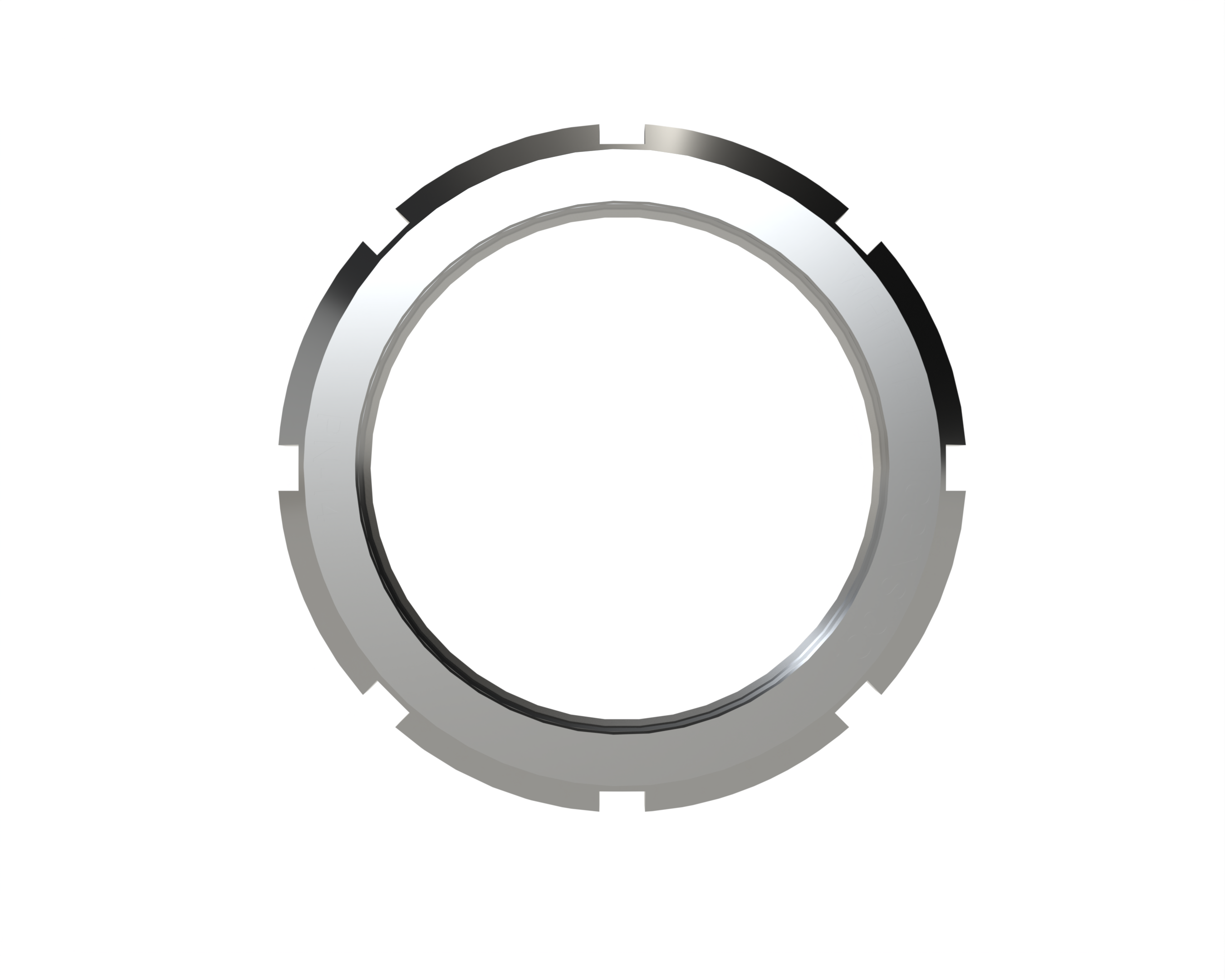

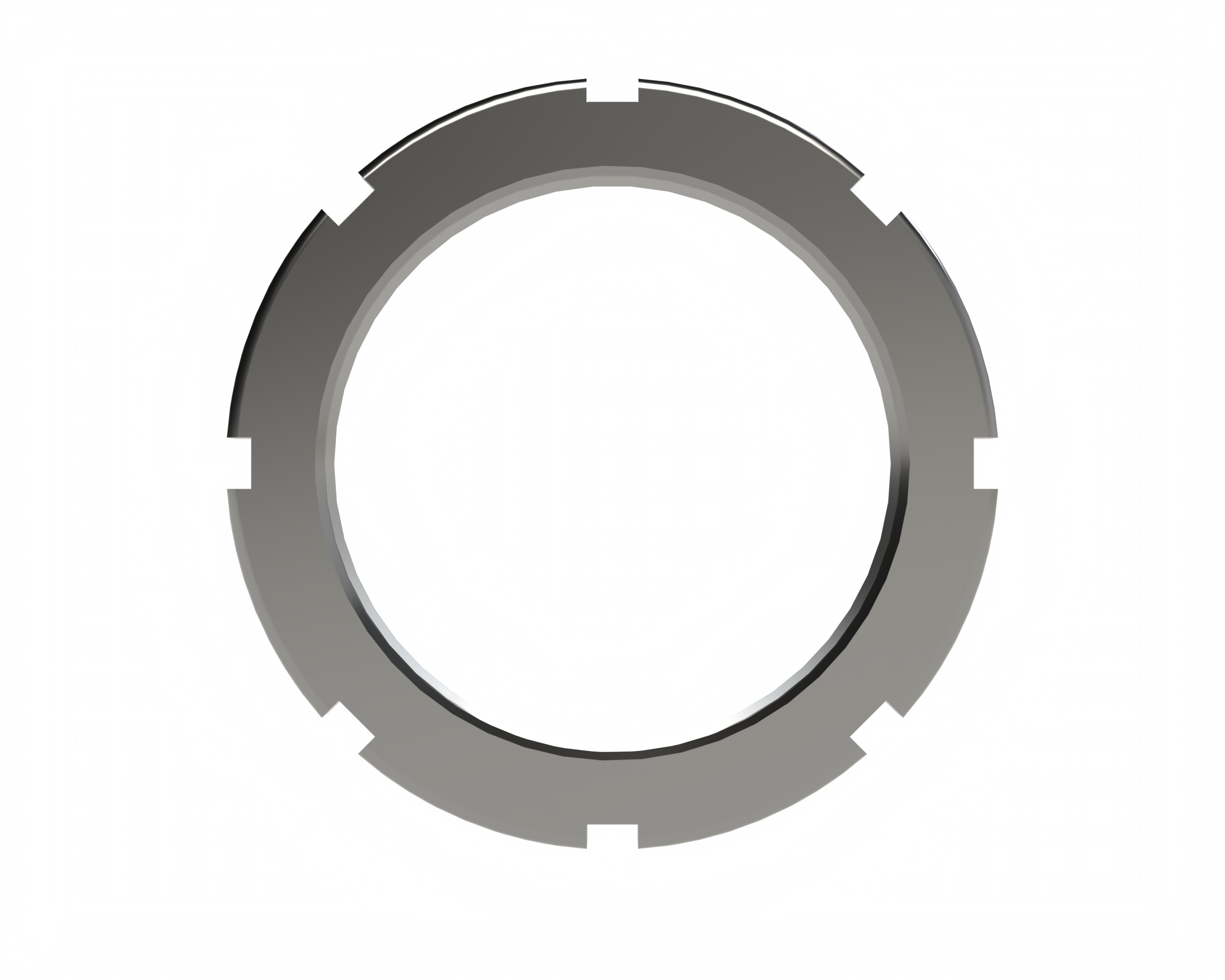

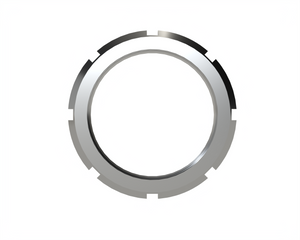

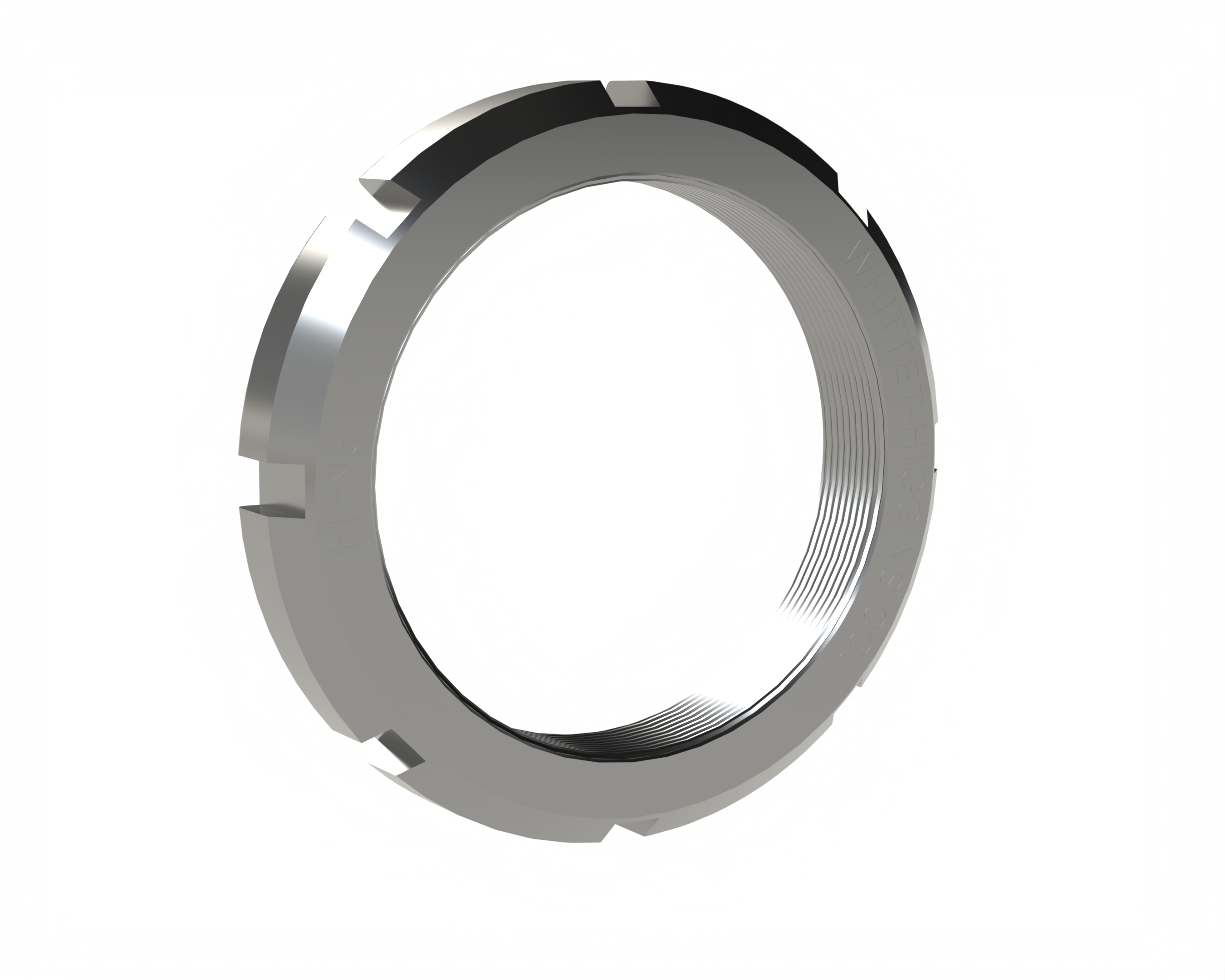

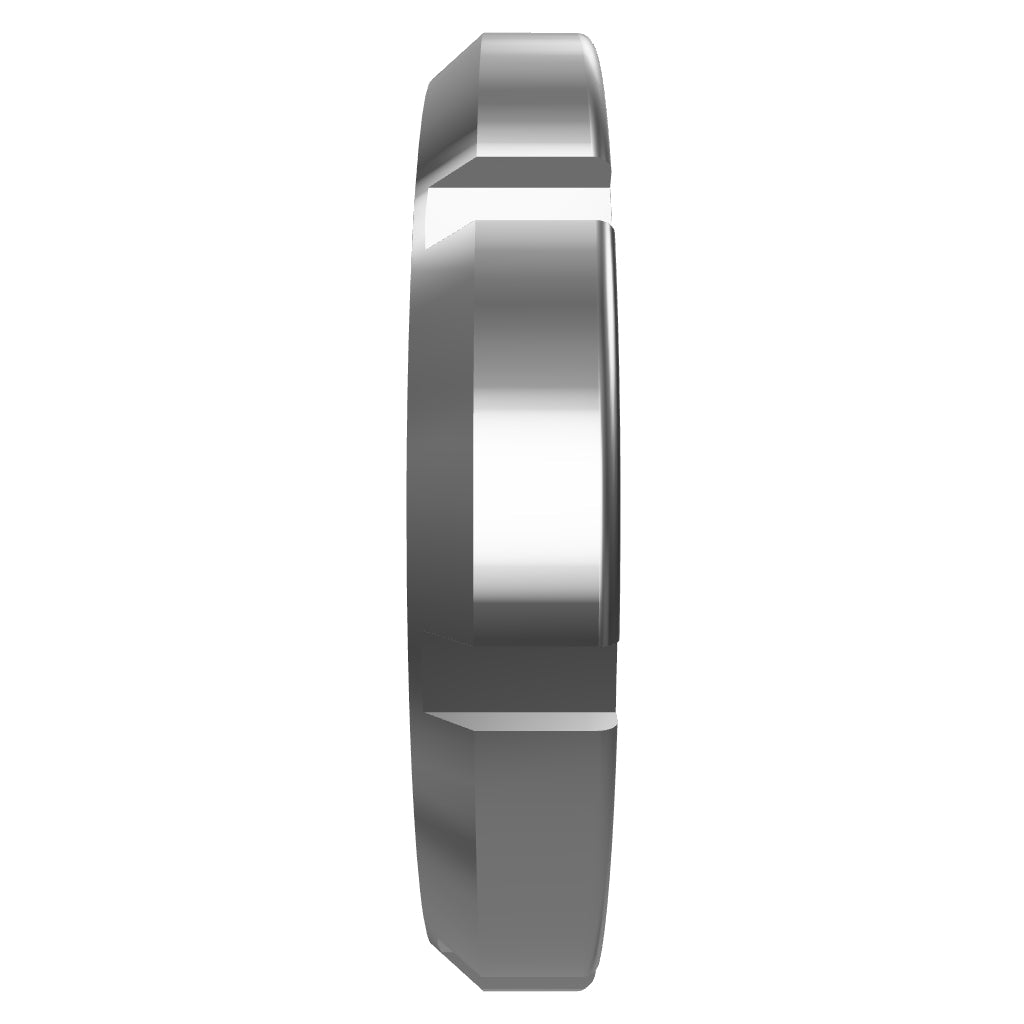

Whittet Higgins PN-44 Locknut Precision

Brand: Whittet-Higgins
$588.08
$588.08
Shipping calculated at checkout.
1000 in Stock Now

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Quantity Discount Table
Quantity Discounti
Quantity Discount
1 Unit No Discount
20-49 Units 5%
50-99 Units 8%
100-199 Units 15%
200-499 Units 18%
500+ Units 25%
Powered by Omni Themes
Need Help?
Call us 1 (248) 429-9073
Map showing Oxford, Michigan
Oxford, Michigan
Promotional banner

Need tax exemption or quantity pricing? We offer special rates for businesses and bulk orders.

Contact Us

FREE SHIPPING

All Orders Over $100 Ship Free Ground

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Full policy

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

PRICE MATCH

Simply provide proof of a competitor's advertised price on the same item, and we'll match it.

Full policy
Whittet-Higgins

Whittet-Higgins

Whittet-Higgins specializes in high-quality bearing retention and shaft-locking products used in demanding industrial applications. Its core product range includes precision locknuts, lockwashers, adapter and withdrawal sleeves, shaft nuts, and related installation tools designed to securely position bearings and rotating components. The company offers both inch and metric options, including heavy-duty and corrosion-resistant designs for power transmission, machinery, and other industrial equipment.

Key Features

  • Carbon steel construction
  • Double the locking positions of a standard N/AN locknut for tighter, more precise adjustment
  • Matched with PW series lockwashers to secure, lock, and retain bearings and power transmission assemblies
  • Meets and exceeds ANSI / ABMA 8.2-1999 specification
  • Maximum operating temperature of 300 degrees F
  • Effective on soft and hardened shafts with no special tools required for installation
  • Prevents assembly loosening due to vibration, shock, and torque
  • Made in USA and RoHS compliant

Description

The Whittet-Higgins PN precision locknut is the most precise basic inch-series locknut available, providing double the locking positions of a standard N/AN locknut for tighter, more accurate adjustment and setting of bearings and power transmission assemblies.

Used together with matched PW series lockwashers, it secures, locks, and retains bearings and shaft-mounted components on both soft and hardened shafts, preventing assembly loosening due to vibration, shock, and torque with no special tools required for installation.

Manufactured from carbon steel, this locknut meets and exceeds ANSI / ABMA 8.2-1999, carries a maximum operating temperature of 300 degrees F, and is made in the USA and RoHS compliant.

Specifications

PN-44

Specification Value
Thread 8.628-8
Outside Diameter (inches) 11.000
Face Diameter (inches) 9.843
Width (inches) 0.980-1.010
Material Steel
Weight 10.98 lb (4980.44 g)
Country of Origin USA
