Whittet higgins SNC24-6 Splitnut UNC Coarse Thread - Steel
- Regular price
- $60.20
- Sale price
- $60.20
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
| Quantity | Discount |
|---|---|
| 1 Unit | No Discount |
| 20-49 Units | 5% |
| 50-99 Units | 8% |
| 100-199 Units | 15% |
| 200-499 Units | 18% |
| 500+ Units | 25% |
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policy
Key Features
- Two-piece coarse-thread splitnut, mechanical self-locking
- Carbon steel base threaded nut with hardened alloy fastener
- Black oxide coating with wax finish to help prevent corrosion
- Tangential (X-axis) socket-head cap screw clamps the split nut to lock and adjust
- Installs onto the shaft without removing other power-transmission components
- Replaces a traditional locknut and lockwasher; does not damage shaft threads
- Maximum operating temperature 300°F
- Manufactured in the USA and RoHS compliant
Description

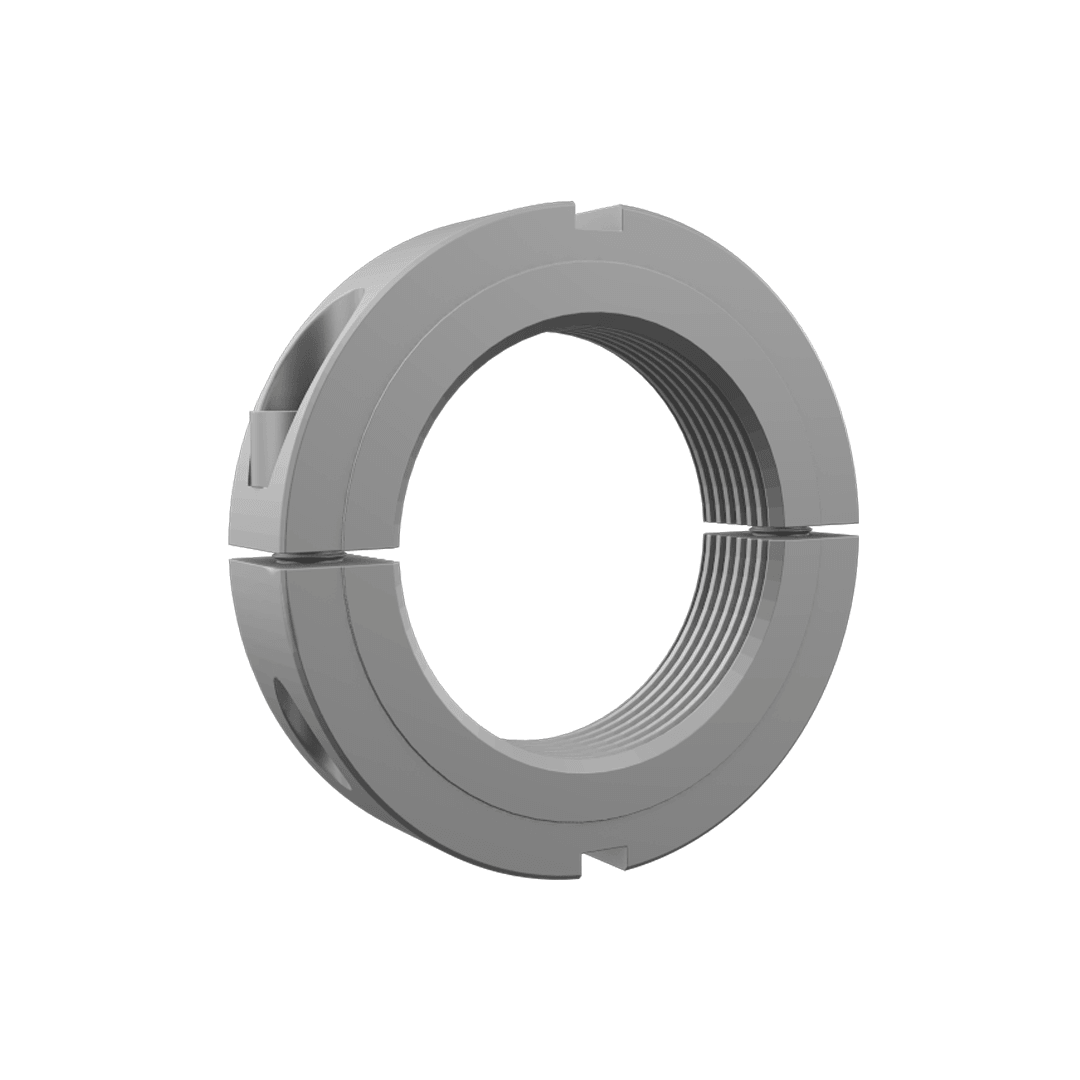

The Whittet-Higgins SNC24-6 is a two-piece, coarse-thread splitnut that mechanically self-locks to retain bearings and other components on a threaded shaft. It assembles onto the shaft without removing existing power-transmission components and reduces the chance of cross-threading during installation.
Locking is achieved tangentially: a hardened alloy socket-head cap screw clamps the split base nut closed, providing increased holding power with X-axis access for adjustment and removal. This splitnut design replaces a traditional locknut and lockwasher, does not damage shaft threads when secured, and resists assembly seizure in cold or corrosive conditions.
The base threaded nut is carbon steel with a hardened alloy fastener, finished in black oxide with a wax coating to help prevent corrosion. Rated to a 300°F maximum operating temperature, it is manufactured in the USA and RoHS compliant.
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Specifications
SNC24-6
| Specification | Value |
|---|---|
| Series | Whittet-Higgins SNC Series |
| Thread | 1.500-6 |
| Nominal Thread Diameter | 1.5 in (38.1 mm) |
| Outside Diameter | 2.375 in (60.32 mm) |
| Face Diameter | 1.844 in (46.84 mm) |
| Width | 0.563 in (14.3 mm) |
| Clamp Screw | 1/4-28 |
| Suggested Tightening Torque | 150 in-lb |
| Theoretical Axial Holding Capacity | 15600 lbf |
| Material | Carbon Steel (alloy fastener) |
| Standard | Mechanical Self-Locking |
| Weight (approx.) | 0.4 lb (181.437 g) |
| Country of Origin | USA |
