Authorized Retailer Made in the USA Top Rated

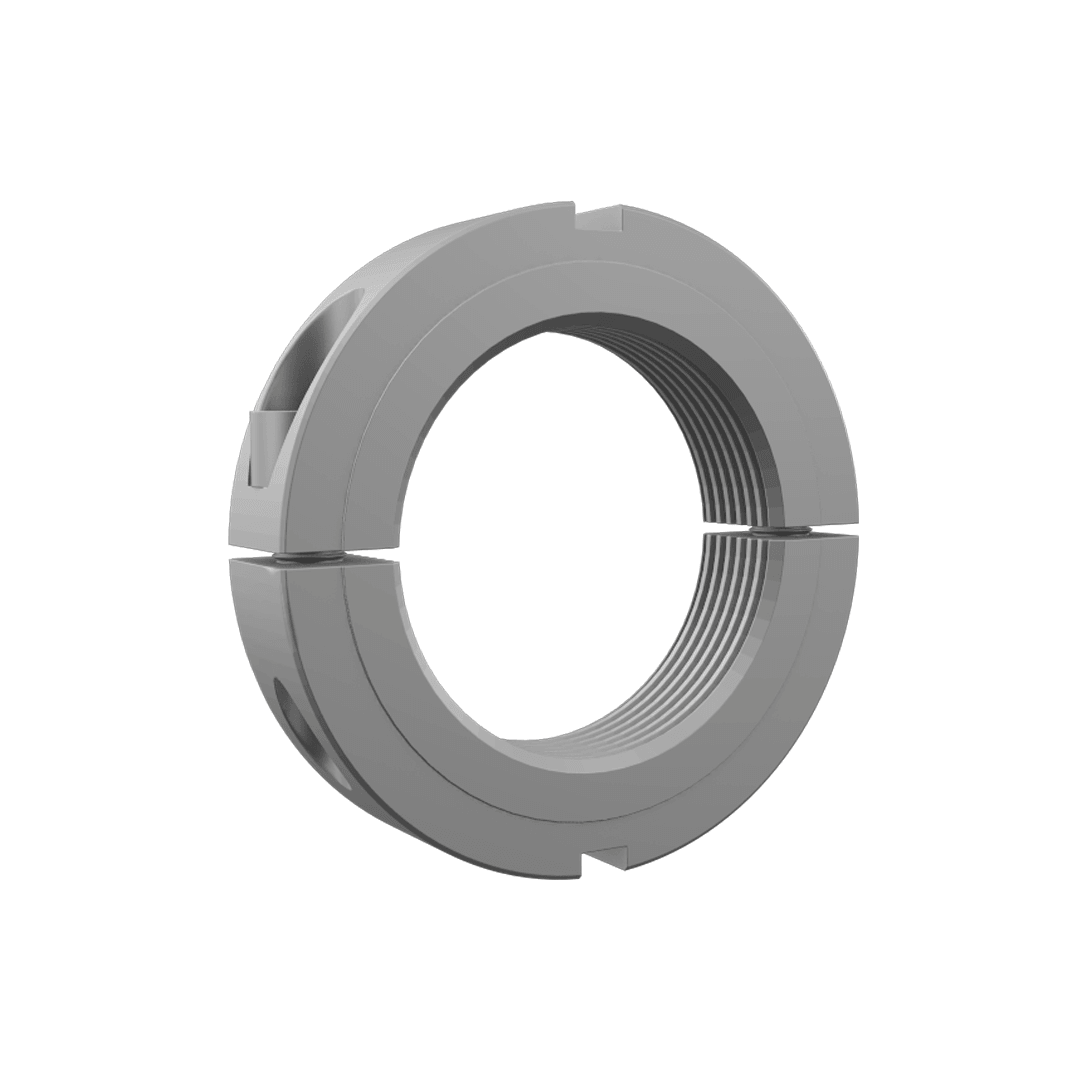

Whittet higgins SNF16-12S Splitnut UNF Fine Thread - Stainless Steel

  • T 1.000-12
  • D 1.750″
  • B 0.500″

Genuine Whittet-Higgins product, Whittet-Higgins

Regular price
$75.62
Sale price
$75.62
Regular price
Shipping calculated at checkout.
green lightning bolt icon for industrial tools and equipment
1000 in Stock Now

Quantity pricingApplied at checkout

  • 20–49 5% off$71.84 ea
  • 50–99 8% off$69.57 ea
  • 100–199 15% off$64.28 ea
  • 200–499 18% off$62.01 ea
  • 500+ 25% off$56.72 ea

Same-day shipping

Order by 3 PM ET for same-day shipping

Free shipping on orders over $100

Use code at checkout.

Request a quote

Tell us the part number and quantity. We reply with pricing and lead time.

Why Apollo USA

Bearing locknuts and retaining parts from Apollo Industries, Oxford, Michigan

Apollo Industries supplies bearings, locknuts, lockwashers and maintenance tools to businesses across the US, with real people on the phone when you need a part matched.

  • Same-day shipping

    Order by 3 PM EST for same-day shipping.

  • Free shipping over $100

    All orders over $100 ship free by ground with code FREESHIP.

  • 90-day returns

    Hassle-free returns on unused items within 90 days.

  • Price match

    Show us a competitor's advertised price on the same item and we will match it.

  • Expert support

    Support staff available by phone, web chat or email.

  • Need tax exemption or quantity pricing?

    We offer special rates for businesses and bulk orders.

    Contact us

Map of Oxford, Michigan
Oxford, Michigan

Talk to a parts specialist

(248) 429-9073

sales@apollousa.com

2695 Lake George Rd
Oxford, MI 48370

Overview

Whittet-Higgins SNF16-12S Splitnut

The Whittet-Higgins SNF16-12S is a two-piece, fine-thread splitnut that provides mechanical self-locking retention for threaded shafts and bearing assemblies. The split-nut body is drawn together by a tangential (X-axis) socket-head cap screw, clamping it onto the shaft threads to lock and preload the assembly without a separate lockwasher or keyway. It can be installed onto the shaft without removing existing power-transmission components and will not damage the shaft threads when secured.

The fine-thread form delivers greater axial holding strength and finer assembly adjustment than the coarse-thread SNC series, with infinite adjustment and preloading capacity. The base threaded nut is carbon steel with a black-oxide and wax finish for corrosion protection (a stainless steel version is also offered), and it is rated for a maximum operating temperature of 300 degrees F. Manufactured in the USA and RoHS compliant.

Key features

  • Two-piece splitnut design, fine thread form, for increased assembly holding power
  • Mechanical self-locking via a tangential (X-axis) socket-head cap screw clamp — no lockwasher required
  • Greater axial strength and finer adjustment than the coarse-thread SNC series
  • Infinite adjustment and preloading capacity; locks and adjusts without damaging shaft threads
  • Installs onto the shaft without removing existing power-transmission components or machining a keyway
  • Base threaded nut in carbon steel with black-oxide and wax finish; hardened alloy fastener (stainless steel option available)
  • Maximum operating temperature 300 degrees F
  • Manufactured in the USA and RoHS compliant

Specifications

Whittet-Higgins SNF16-12S dimensions & specifications

Drawing of the Whittet-Higgins SNF16-12S two-piece clampnut, Thread 1.000-12, Outside diameter (max.) 1.750 in, Face diameter (max.) 1.313 in, Width (max.) 0.500 in T 1.000-12 D 1.750″ F 1.313″ B 0.500″
Drawn from Whittet-Higgins catalog dimensions (maximum sizes). Slots, tangs and screws are shown for reference.

Files from Whittet-Higgins. They open in a new tab.

Type
Two-piece clampnut
Thread T
1.000-12 (25.40 mm, 12 threads per inch)
Outside diameter (max.) D
1.750 in (44.45 mm)
Face diameter (max.) F
1.313 in (33.35 mm)
Width (max.) B
0.500 in (12.70 mm)
Theoretical axial load
23,100 lbf (102.8 kN)
Socket head cap screw
1/4-28
Suggested screw torque
13400 in-lb (1514.0 N·m)
Material
Stainless Steel
Country of origin
USA
Series
Two-piece clampnut SNF series (stainless)
Weight
0.21 lb
Brand
Whittet-Higgins
Part number
SNF16-12S also written SNF1612S
UPC / EAN
751968271628

Same size, other versions

Other versions of the SNF16-12S

The same size in other Whittet-Higgins series: left-hand thread, stainless steel, high strength, precision or self-locking designs.

  • Whittet-Higgins

    SNF16-12

    Whittet higgins SNF16-12 Splitnut UNF Fine Thread - Steel

    Two-piece clampnut SNF series (fine)

    $34.75

    In stock

  • Whittet-Higgins

    CNF16-12

    Whittet Higgins CNF16-12 One Piece Clampnut UNF Fine Thread - Steel

    One-piece clampnut CNF series (fine)

    $11.21

    In stock

  • Whittet-Higgins

    CNF16-12A

    Whittet Higgins CNF16-12A One Piece Clampnut UNF Fine Thread - Aluminum

    One-piece clampnut CNF series (aluminum)

    $10.24

    In stock

  • Whittet-Higgins

    CNF16-12S

    Whittet Higgins CNF16-12S One Piece Clampnut UNF Fine Thread -Stainless Steel

    One-piece clampnut CNF series (stainless)

    $19.78

    In stock

Part number explained

What every part of SNF16-12S means

SNF
Two-piece clampnut, Two-piece clampnut SNF series (stainless)
16-12
Size 16-12: 1.000-12 thread
S
Stainless steel

Catalogs & documents

Whittet-Higgins SNF16-12S catalogs & documents

Official catalogs and data from the manufacturer. They open as PDFs in a new tab.

About the brand

About Whittet-Higgins

Bearing locknuts, lockwashers and retaining devices from Rhode Island since 1914.

Henry Whittet and John Higgins founded the Whittet-Higgins Manufacturing Company in 1914 in the basement of a mill on Congress Avenue in Providence, Rhode Island, making super-precision bearing retaining components and machined parts for local machine builders such as Brown & Sharpe.

In 1967 the company was sold to a young mechanical engineer, and in 1969 it moved to 33 Higginson Avenue in Central Falls, Rhode Island, where it still makes its products. Its first line of 66 locknuts and lockwashers has grown to more than 4,300 standard parts, made on robotic CNC systems.

Besides the standard N/AN and KM locknuts with W and MB lockwashers, Whittet-Higgins makes its own self-locking designs: Bearhug prevailing-torque locknuts, Bearlok, Shoelok and Tangentlok clamping locknuts, clampnuts and splitnuts, plus adapter sets, clamp collars and installation tools. The company is family owned and operated.

Genuine Whittet-Higgins product from an authorized retailer

  • Founded

    1914

  • Headquarters

    Central Falls, Rhode Island, USA

  • Standard parts

    More than 4,300

  • Made in

    Central Falls, Rhode Island

Known for

  • Bearing locknuts and lockwashers, inch and metric
  • Bearhug self-locking locknuts
  • Clampnuts, splitnuts and clamp collars
  • Adapter sets and installation tools
Whittet-Higgins website (opens in a new tab)

Apollo Industries is an authorized Whittet-Higgins retailer. All Whittet-Higgins trademarks and product names are the property of their respective owners.

FAQ

SNF16-12S questions & answers

What size is the Whittet-Higgins SNF16-12S?

The Whittet-Higgins SNF16-12S is a two-piece clampnut. Thread: 1.000-12 (25.40 mm, 12 threads per inch). Outside diameter: 1.750 in (44.45 mm). Face diameter: 1.313 in (33.35 mm). Width: 0.500 in (12.70 mm). These are Whittet-Higgins' maximum sizes from its spec sheet.

What thread does the SNF16-12S fit?

The Whittet-Higgins SNF16-12S fits a 1.000-12 right-hand shaft thread (25.40 mm, 12 threads per inch).

Does the SNF16-12S need a lockwasher?

No. The Whittet-Higgins SNF16-12S locks itself: its two halves are clamped onto the thread with cap screws, so it also goes onto a shaft without taking other parts off. It needs no lockwasher and no keyway in the shaft.

What temperature can the SNF16-12S take?

Whittet-Higgins rates the Two-piece clampnut SNF series (stainless) for up to 300 °F (149 °C).

What is the SNF16-12S made of?

Base threaded nut: stainless steel; Fastener: stainless steel.

Is there a drawing or CAD model of the SNF16-12S?

Yes. Whittet-Higgins publishes a part print (PDF) and a 3D CAD model (STEP) for the SNF16-12S. The drawing on this page is made from the same catalog dimensions.

How do I install the SNF16-12S?
Is this a genuine Whittet-Higgins clampnut?

Yes. Apollo Industries is an authorized Whittet-Higgins retailer, and every Whittet-Higgins part we sell is genuine, made by Whittet-Higgins in Central Falls, Rhode Island, USA.

Do you ship the SNF16-12S the same day?

In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.

Can I get quantity pricing or buy tax-exempt?

Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.
