Whittet higgins SNF16-14S Splitnut UNF Fine Thread - Stainless Steel
- Regular price
- $75.62
- Sale price
- $75.62
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
| Quantity | Discount |
|---|---|
| 1 Unit | No Discount |
| 20-49 Units | 5% |
| 50-99 Units | 8% |
| 100-199 Units | 15% |
| 200-499 Units | 18% |
| 500+ Units | 25% |
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policy
Key Features
- Two-piece splitnut design, fine thread form, for increased assembly holding power
- Mechanical self-locking via a tangential (X-axis) socket-head cap screw clamp — no lockwasher required
- Greater axial strength and finer adjustment than the coarse-thread SNC series
- Infinite adjustment and preloading capacity; locks and adjusts without damaging shaft threads
- Installs onto the shaft without removing existing power-transmission components or machining a keyway
- Base threaded nut in carbon steel with black-oxide and wax finish; hardened alloy fastener (stainless steel option available)
- Maximum operating temperature 300 degrees F
- Manufactured in the USA and RoHS compliant
Description

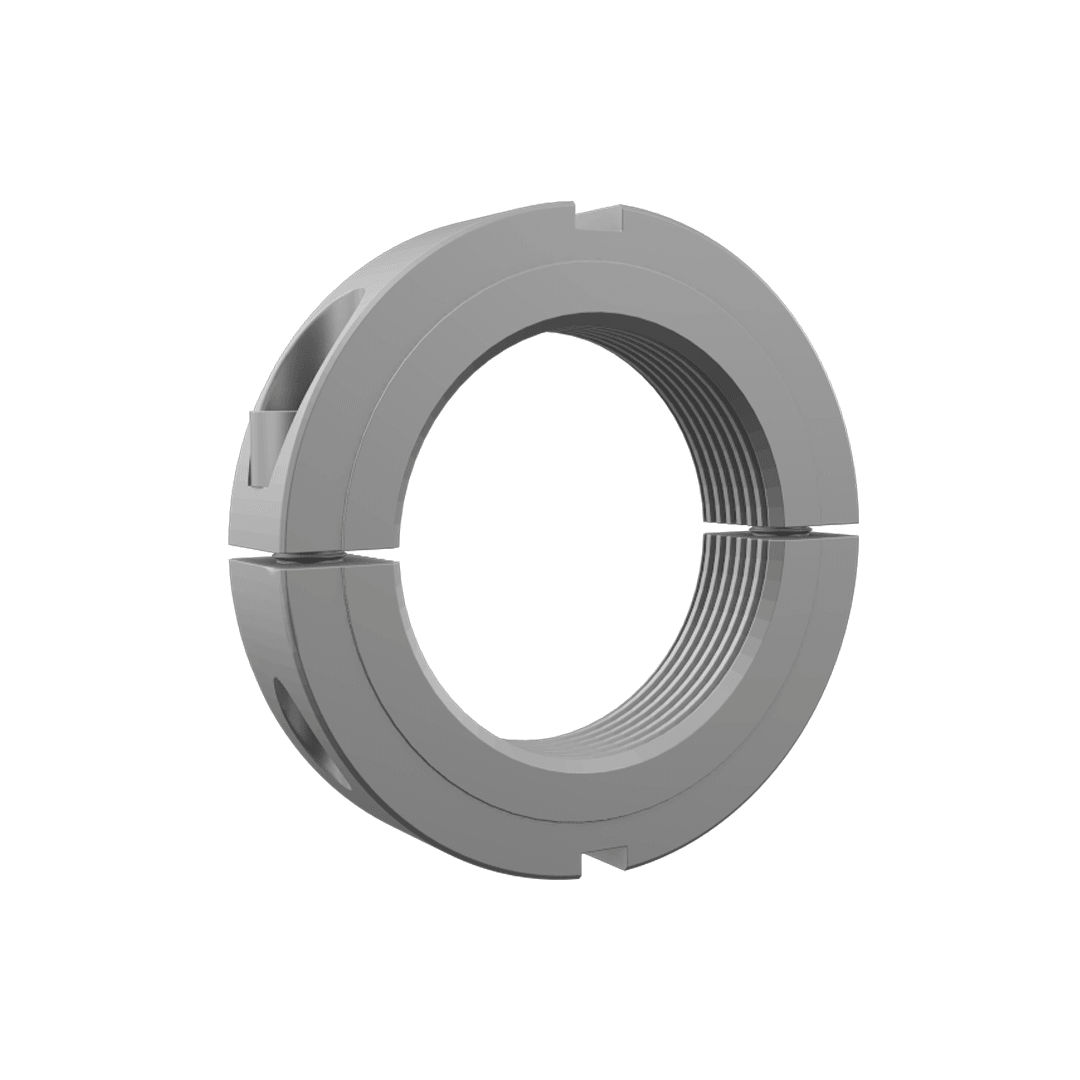

The Whittet-Higgins SNF16-14S is a two-piece, fine-thread splitnut that provides mechanical self-locking retention for threaded shafts and bearing assemblies. The split-nut body is drawn together by a tangential (X-axis) socket-head cap screw, clamping it onto the shaft threads to lock and preload the assembly without a separate lockwasher or keyway. It can be installed onto the shaft without removing existing power-transmission components and will not damage the shaft threads when secured.
The fine-thread form delivers greater axial holding strength and finer assembly adjustment than the coarse-thread SNC series, with infinite adjustment and preloading capacity. The base threaded nut is carbon steel with a black-oxide and wax finish for corrosion protection (a stainless steel version is also offered), and it is rated for a maximum operating temperature of 300 degrees F. Manufactured in the USA and RoHS compliant.
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Specifications
SNF16-14S
| Specification | Value |
|---|---|
| Series | Whittet-Higgins SNF Series |
| Thread | 1.000-14 |
| Nominal Thread Diameter | 1 in (25.4 mm) |
| Outside Diameter | 1.75 in (44.45 mm) |
| Face Diameter | 1.313 in (33.35 mm) |
| Width | 0.5 in (12.7 mm) |
| Clamp Screw | 1/4-28 |
| Suggested Tightening Torque | 150 in-lb |
| Theoretical Axial Holding Capacity | 12000 lbf |
| Material | Stainless Steel |
| Standard | Mechanical Self-Locking |
| Weight (approx.) | 0.22 lb (99.79 g) |
| Country of Origin | USA |
