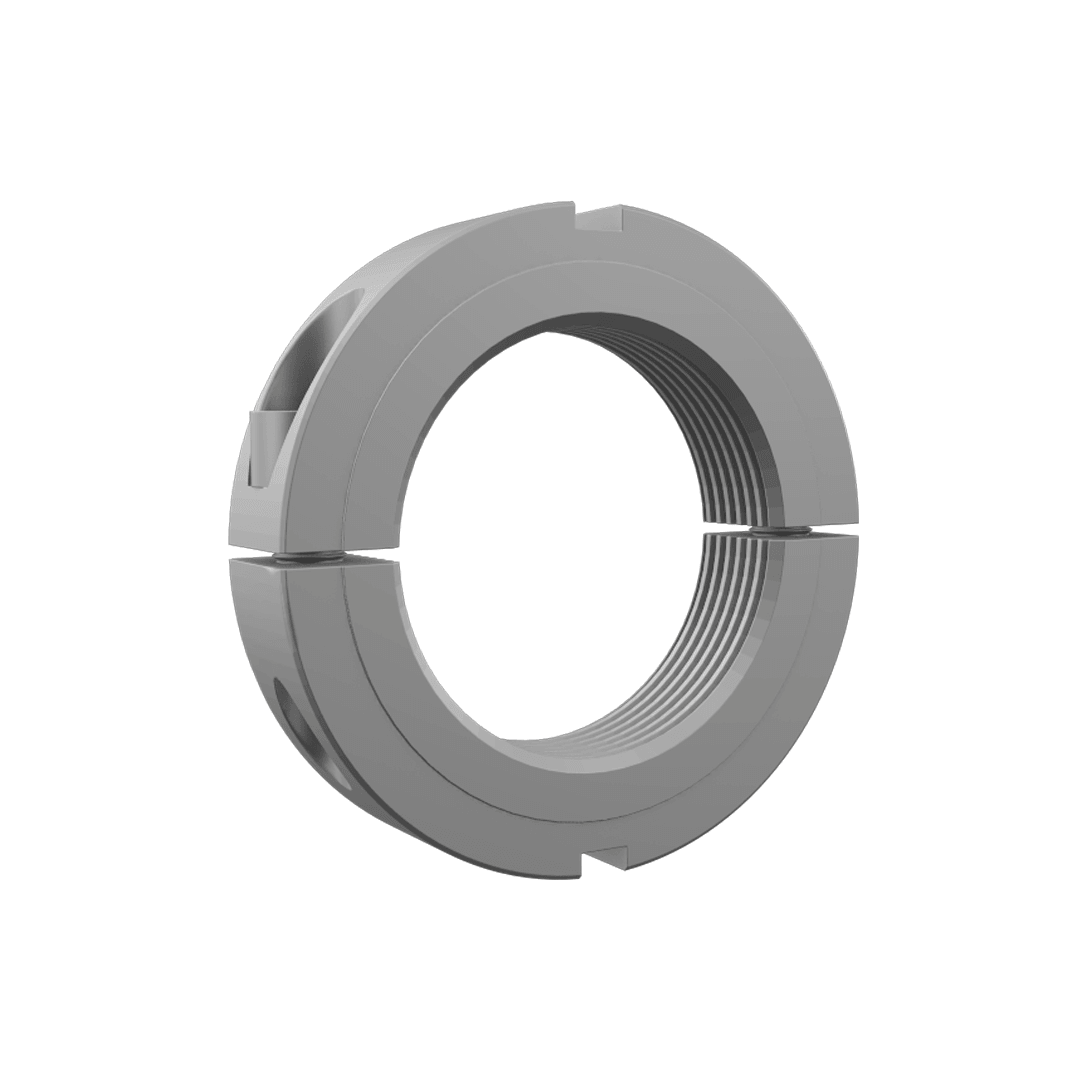

Whittet higgins SNS16-16S Splitnut UNS 16 TPI Thread - Stainless Steel
- Regular price
- $185.87
- Sale price
- $185.87
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
| Quantity | Discount |
|---|---|
| 1 Unit | No Discount |
| 20-49 Units | 5% |
| 50-99 Units | 8% |
| 100-199 Units | 15% |
| 200-499 Units | 18% |
| 500+ Units | 25% |
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policy
Key Features
- Two-piece splitnut design provides increased assembly holding power
- Fine 16 TPI thread pitch delivers greater axial loading capacity and finer adjustment and preloading
- Mechanically self-locking via a tangential (X-axis) socket head cap screw that clamps the split nut onto the shaft thread
- Carbon steel base threaded nut with hardened alloy fastener; black oxide coating with wax finish for corrosion protection
- Corrosion-resistant all-stainless-steel variant available
- Maximum operating temperature 300 degrees F
- Installs without removing other power transmission components; does not damage shaft threads and eliminates keyway cutting or repair
- Suggested clamp screw torque from 150 to 260 N-m depending on size
- Manufactured in the USA and RoHS compliant
Description
The Whittet-Higgins SNS16-16S is a two-piece splitnut shaft locknut with a fine 16-threads-per-inch pitch, used to retain, preload, and finely adjust bearings and other power transmission components on a threaded shaft or spindle. It is mechanically self-locking: a tangential (X-axis) socket head cap screw closes the split nut body to clamp it onto the shaft thread, delivering high assembly holding power without damaging the threads and without cutting or repairing a keyway.
The base threaded nut is carbon steel paired with a hardened alloy fastener and protected by a black oxide coating with a wax finish to resist corrosion, with a stainless steel version available for corrosive environments. Rated for operation up to 300 degrees F, the SNS16-16S installs without removing existing power transmission components, provides finer adjustment and greater axial loading capacity in larger diameters, and is manufactured in the USA to be RoHS compliant. It conforms to the Mechanical Self-Locking design standard.
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Specifications
SNS16-16S
| Specification | Value |
|---|---|
| Series | Whittet-Higgins SNS Series |
| Thread | 1.000-16 |
| Nominal Thread Diameter | 1 in (25.4 mm) |
| Outside Diameter | 1.75 in (44.45 mm) |
| Face Diameter | 1.313 in (33.35 mm) |
| Width | 0.5 in (12.7 mm) |
| Clamp Screw | 1/4-28 |
| Suggested Tightening Torque | 150 in-lb |
| Theoretical Axial Holding Capacity | 12200 lbf |
| Material | Stainless Steel |
| Standard | Mechanical Self-Locking |
| Weight (approx.) | 0.212 lb (96.162 g) |
| Country of Origin | USA |
