Key Features
- Carbon steel construction
- Matched with N / AN / NL series bearing locknuts to lock and retain bearings
- Locks via an inner keying tang and bendable outer tabs that engage the locknut slots
- Provides accurate angular positioning with numerous locking positions
- Prevents loosening due to vibration, shock, and torque
- Meets and exceeds ANSI / ABMA 8.2-1999
- Maximum operating temperature 300°F
- Effective on soft and hardened shafts with no special tools required
- Manufactured in USA and RoHS compliant
Description

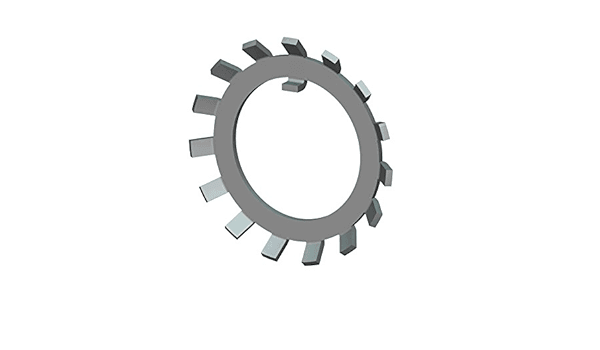

The Whittet-Higgins W series bearing lockwasher is a carbon steel retaining washer used with N / AN / NL series bearing locknuts to secure, lock, and retain bearings and power transmission assemblies on a shaft. An inner tang keys into the shaft keyway while the washer's outer tabs bend into the slots of the mating locknut, delivering accurate angular positioning across numerous locking positions and preventing assembly loosening caused by vibration, shock, and torque.
Effective on both soft and hardened shafts and requiring no special installation tools, it meets and exceeds ANSI / ABMA 8.2-1999. Each lockwasher is manufactured in the USA, is RoHS compliant, and is rated for operating temperatures up to 300°F.
$1,161.21
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Specifications
W-17
| Specification | Value |
|---|---|
| Series | Whittet-Higgins W Series |
| Bore Size | 3.395 in (86.23 mm) |
| Outside Diameter | 4.625 in (117.47 mm) |
| Face Diameter | 4.061 in (103.15 mm) |
| Thickness | 0.077 in (1.96 mm) |
| Material | Carbon Steel |
| Used With | N / AN / NL series locknuts |
| Standard | ANSI / ABMA 8.2-1999 |
| Weight (approx.) | 0.123 lb (55.792 g) |
| Country of Origin | USA |
