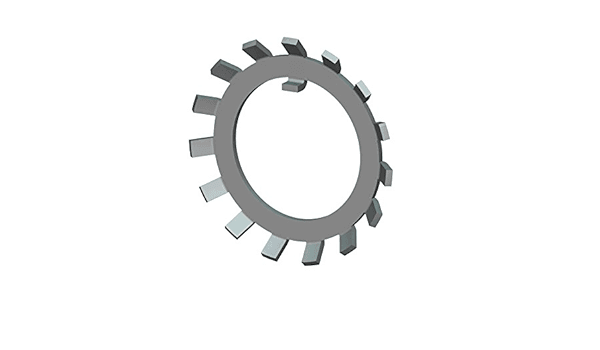

Metal tab washer for industrial and power transmission applications, isolated on white
Metal tab washer for industrial and power transmission applications, isolated on white
    Metal tab washer for industrial and power transmission applications, isolated on white
Metal tab washer for industrial and power transmission applications, isolated on white
Authorized Retailer Made in the USA Top Rated

Whittet higgins W-20 Lockwasher

Brand: Whittet-Higgins
Regular price
$11.00
Sale price
$11.00
Regular price
Shipping calculated at checkout.
1000 in Stock Now

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Quantity Discount Table
Quantity Discounti
Quantity Discount
1 Unit No Discount
20-49 Units 5%
50-99 Units 8%
100-199 Units 15%
200-499 Units 18%
500+ Units 25%
Powered by Omni Themes
Need Help?
Call us 1 (248) 429-9073
Map showing Oxford, Michigan
Oxford, Michigan
Promotional banner

Need tax exemption or quantity pricing? We offer special rates for businesses and bulk orders.

Contact Us

FREE SHIPPING

All Orders Over $100 Ship Free Ground

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Full policy

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

PRICE MATCH

Simply provide proof of a competitor's advertised price on the same item, and we'll match it.

Full policy

Key Features

  • Positive anti-rotation locking mechanism
  • Inner tab engages shaft keyway
  • Outer tab bends into locknut slot
  • Prevents locknut loosening during operation
  • Precision-stamped for accurate fit
  • Compatible with corresponding locknut series
  • Durable steel construction
  • Easy installation and removal
  • Manufactured in USA & RoHS / REACH compliant

Description


Bore (inches): 3.988
Outside Dia (inches): 5.531
Face Dia (inches): 4.858
Thickness (inches): 0.132
Most commonly used lockwashers, these multi-tang lockwashers are the least expensive. They are made of a material sufficiently soft so the tangs will withstand several bends of locking and unlocking in assembly, but of a material sufficiently hard to resist the shearing action which may be exerted by the corner of the spanner slots. The key is bent in the opposite direction of the tang and axially to the shaft to fit in a shaft keyway under the bearing race to provide greater resistance to the shearing action and to provide support with the inner race of the bearing.
