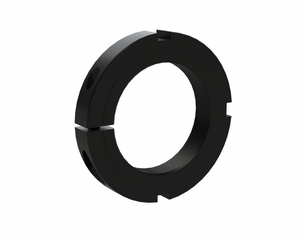

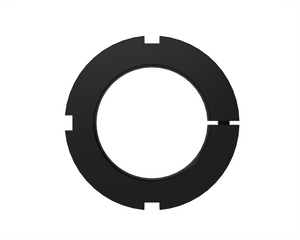

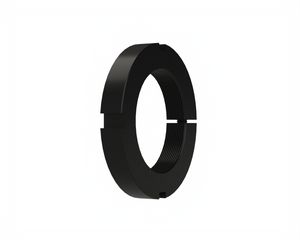

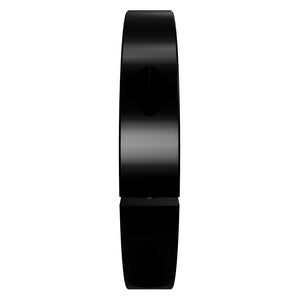

Whittet Higgins CNB-05 Clamp Nut

Brand: Whittet-Higgins
Regular price
€15,95
Sale price
€15,95
Regular price
Shipping calculated at checkout.
1000 in Stock Now

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Quantity Discount Table
Quantity Discounti
Quantity Discount
1 Unit No Discount
20-49 Units 5%
50-99 Units 8%
100-199 Units 15%
200-499 Units 18%
500+ Units 25%
Powered by Omni Themes
Need Help?
Call us 1 (248) 429-9073
Left banner
Logo
Authorized Retailer

Whittet-Higgins manufactures premium bearing locknuts, shaft collars, and mechanical locking devices designed for secure, precise component retention. Trusted in industrial, aerospace, and power transmission applications, their products deliver strength, reliability, and precision engineering for critical assemblies.

Bottom image 1

FREE SHIPPING

All Orders Over $100 Ship Free Ground

Bottom image 2

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Bottom image 3

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

Bottom image 4

PRICE MATCH GUARANTEE

Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it

Key Features

  • Single-point self-locking design
  • Manufactured from low carbon steel
  • Unbalanced for low to medium speed applications
  • Prevents assemblies from loosening due to vibration, shock, and torque
  • Radial locking and adjustment of assembly
  • Easier and faster to install than a traditional locknut & lockwasher
  • Eliminates the need for cutting or repairing shaft keyways
  • Infinite adjustment and preloading capability
  • Does not deform or damage shaft threads
  • Black oxide & wax coating to prevent corrosion
  • Unified Special (UNS) Class 3 threads per ASME B1.1:2003
  • Manufactured in USA & RoHS / REACH compliant

Description


Thread: .969-32
Outside Dia (inches): 1.875
Face Dia (inches): 1.280
Width (inches): 0.510
Axial Load (lbs): 19800
Lockscrew: M6
Installation instructions for Clampnut

This series of CLAMP NUTS has the bearing threads specified to the AFBMA/ANSI standards, fits, and tolerances thus are fully interchangeable with the retaining devices generally used in bearing and other power transmission assemblies. These threads are in accordance with the American National Form of the National Standard Class 3 with thread length based on a 45° chamfer as specified in the Screw Thread Standards as set forth in the Federal Services Handbook H-28-1957.

The bearing face - the side with the clearance relief above the face diameter - is machined square to the axis of the pitch diameter of the threads whereby the runout for one revolution has a total indicator reading variance no greater than: .002 for sizes 00 to 14, .004 for sizes 15 to 40.

As with all precision retaining devices, care must be taken during assembly to assure premium performance. Please open and review our installation instructions for proper technique and best results.
