ACOEM (100-ECO333-EVD) Eco Pro Wireless Laser Shaft Alignment Tool – High-Precision Alignment System
- Regular price
- $9,250.00
- Sale price
- $9,250.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features

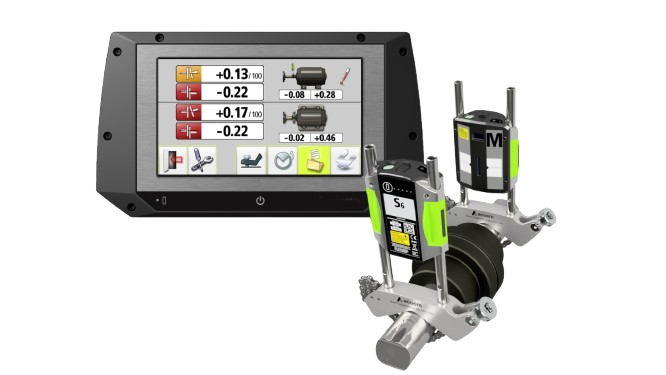

- Precision Alignment System – Designed to deliver accurate, efficient shaft alignment with a simple, user-friendly approach.
- GuideU™ Visual Interface – Icon-driven, color-coded 3D interface guides users step-by-step, minimizing errors and simplifying the alignment process.
- TrueLive™ Measurement Technology – Dual sensors track shaft positions in real time, providing continuous live values—even if the laser beam is interrupted.
- VertiZontal™ Alignment Function – Automatically calculates vertical and horizontal corrections in a single step, reducing measurement time and improving efficiency.
- Wireless Bluetooth™ Connectivity – Enables cable-free communication between sensors and display unit for faster setup and operation.
- High-Precision CCD Sensor Technology – 20 mm detectors and dual inclinometers provide accurate measurements across distances up to 3 meters.
- Pre-Mounted Smart Sensors – Sensors are ready to use out of the case, reducing setup time and simplifying installation.
- Softcheck™ Functionality – Detects and corrects soft foot conditions to prevent vibration, misalignment, and premature wear.
- Rugged, Industrial Design (IP65 Rated) – Built to withstand dust, water, and harsh environments with a durable, sealed construction.

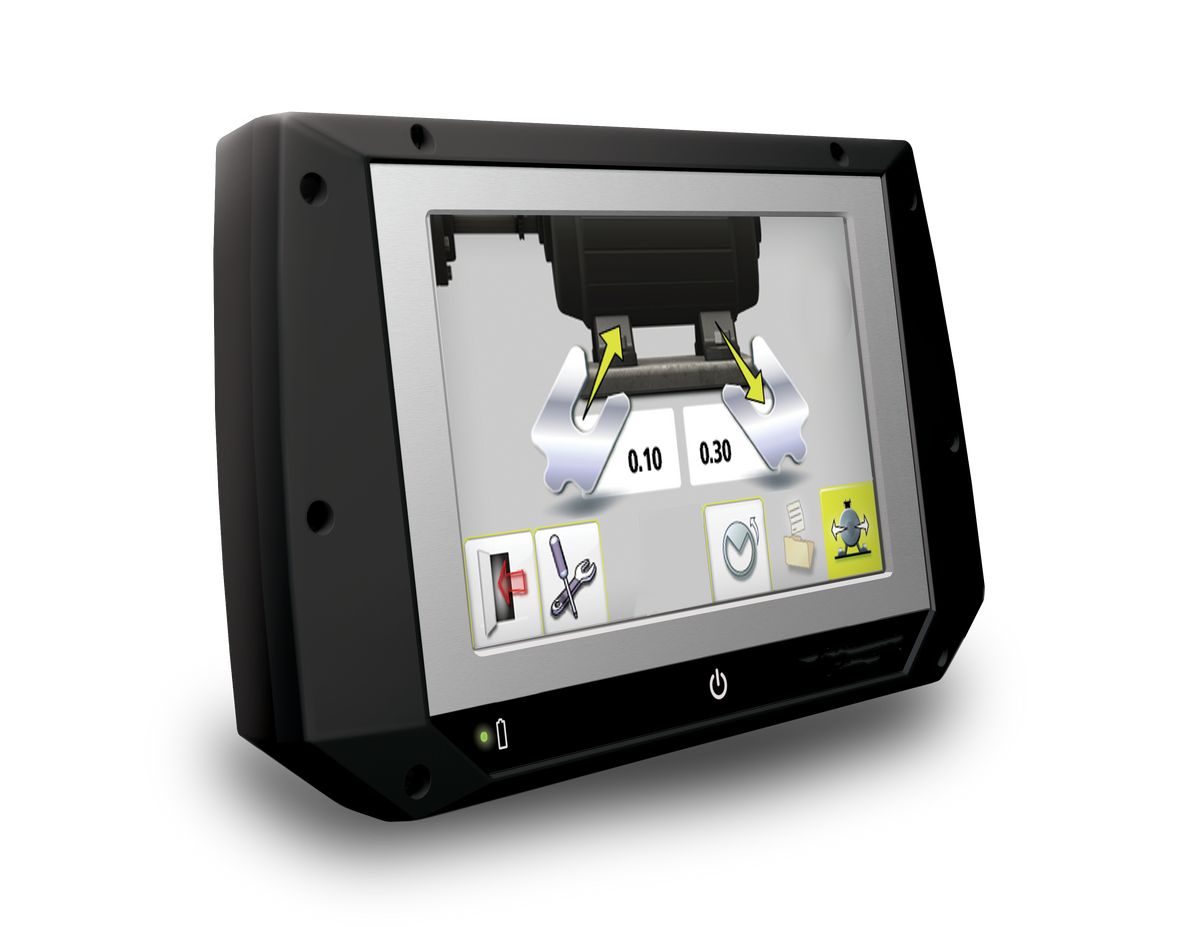

- Compact 5” Touchscreen Display – Industrial-grade display unit provides clear visuals and intuitive operation in the field.
- Efficient Data Management & Reporting – Organize measurements, store data, and export results easily for documentation and analysis.
Description
Precision Shaft Alignment Made Simple
The ECO Pro Shaft Alignment System combines state-of-the-art technology with an intuitive design to make shaft alignment smoother and more precise. With its user-friendly interface, it guides operators step-by-step through alignment processes, reducing setup time and improving accuracy. The system leverages advanced measurement tools that provide real-time data, helping users optimize adjustments and minimize errors.
This design allows both new and experienced technicians to achieve high-quality alignments efficiently, leading to longer equipment lifespan, reduced maintenance needs, and overall improved operational reliability.

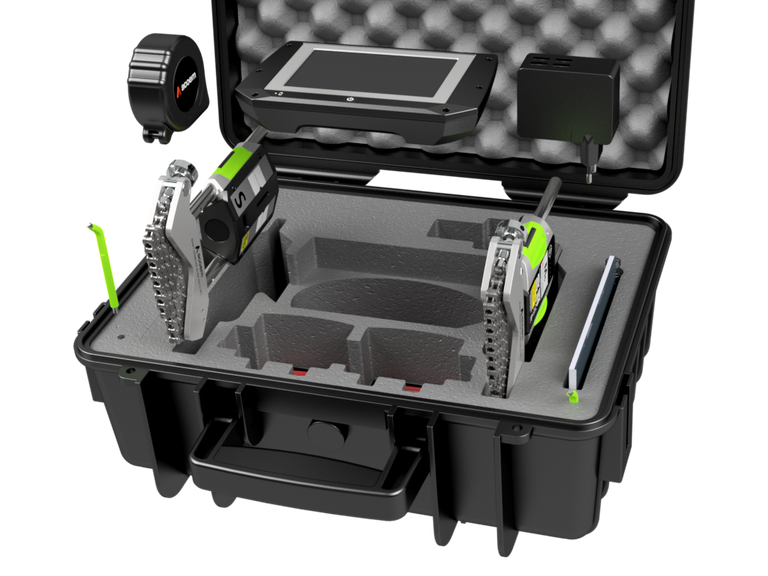

WHAT'S INCLUDED
-
ECO Pro package with case
-

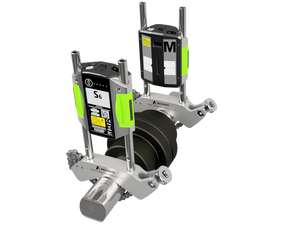

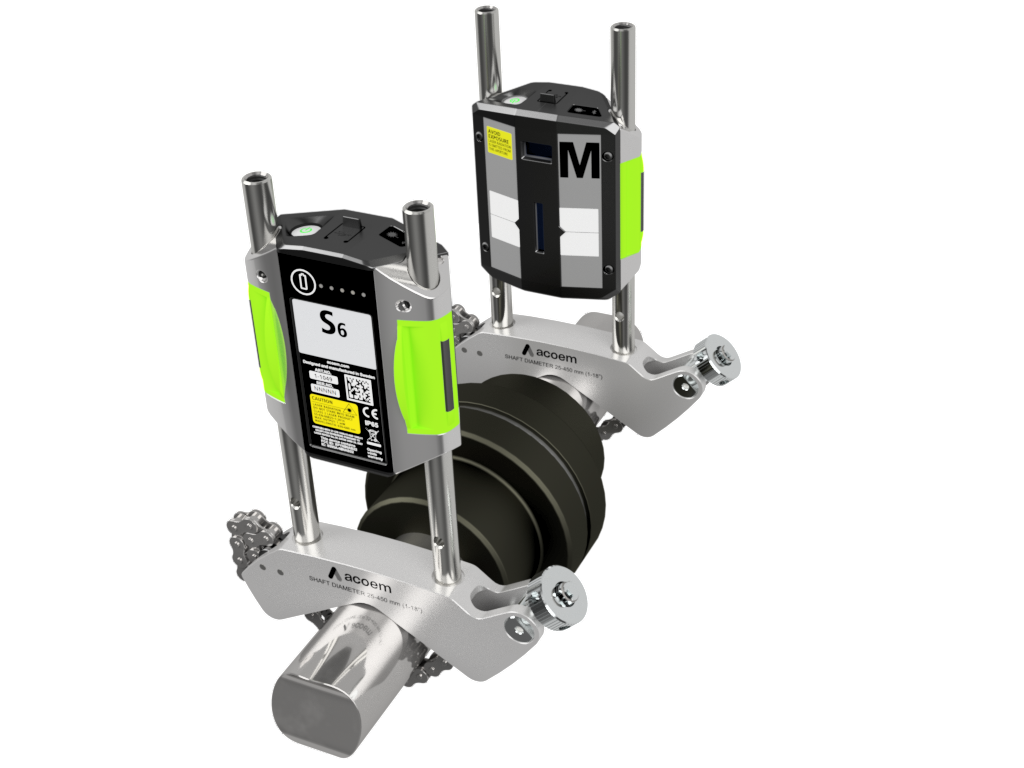

2 Sensors, M6 & S6
-
2 V-brackets complete with chain
-
Tape measure 16 ft
-
Power supply, 4 USB ports, 5 VDC
-
2 Universal tools
-
3 pcs of USB cables, A–mini B, 6 ft
-
Waterproof case
-
Quick Guide
Specifications
Hardware
| Hardware Type | M8 / S8 |
Sensors
| Housing Material | Anodized Aluminum frame and high impact ABS plastic |
| Weight | M8: 222 g (7.8 oz), S8: 222 g (7.8 oz) |
| Dimensions | 94 mm x 87 mm x 37 mm (3.7 in x 3.4 in x 1.4 in) |
Environment
| Operating Temp | 0 to 50 °C (32 to 122 °F) |
| Storage Temp | -20 to 70 °C (-4 to 158 °F) |
| Long Term Storage Temp | Room Temp 18 to 28 °C (64 to 82 °F) |
| Battery Charging Temp | 0 to 40 °C (32 to 104 °F) |
| Relative Humidity | 10 – 90 % |
| Environmental Protection | IP54 (Dust and splash-proof) |
Sensing Technology
| Laser | 650 nm class II diode laser |
| Laser Power | < 1 mW |
| Measurement Distance | Up to 2 m |
| Detector | Digital line sensor |
| Detector Length | 20 mm (1.2 in) |
| Detector Resolution | 0.01 mm |
| Measurement Accuracy | 1% ± 1 digit |
| Inclinometer Resolution | 1° |
| Inclinometer Accuracy | ±3° |
Battery
| Type | High performance Li-Ion battery or external power |
| Operating Time | 12 h |
| Charging Time | 8 h |
| Battery Capacity | 10.4 Wh |
| LED Indicators | Wireless communication, laser transmission, and battery status indicators |
Communication
| Wireless Communication | Class I Bluetooth transmitter |
| Communication Range | 10 m (33 ft) |
| Connectors | 1 USB Mini port (Charging: 5V, 0.5A) |
Handheld Algiz RT8 (Optional)
| Display | Sunlight-readable 8-inch capacitive multi-touch display with Gorilla Glass, plus rain and glove mode |
| Ruggedness | IP67 rating (fully waterproof and dust-tight, including ports) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
