Key Features

  • App-Based Shaft Alignment Platform – Works seamlessly with tablet or smartphone apps for intuitive, connected shaft alignment.
  • Entry-Level Simplicity, Professional Capability – Designed for both beginners and experienced users with minimal training required.
  • GuideU™ Visual Interface – Icon-driven, color-coded 3D interface guides users step-by-step, reducing errors and simplifying the alignment process.
  • TrueLive™ Measurement Technology – Dual sensors track both shaft positions simultaneously and deliver continuous live values, even if the laser beam is interrupted.

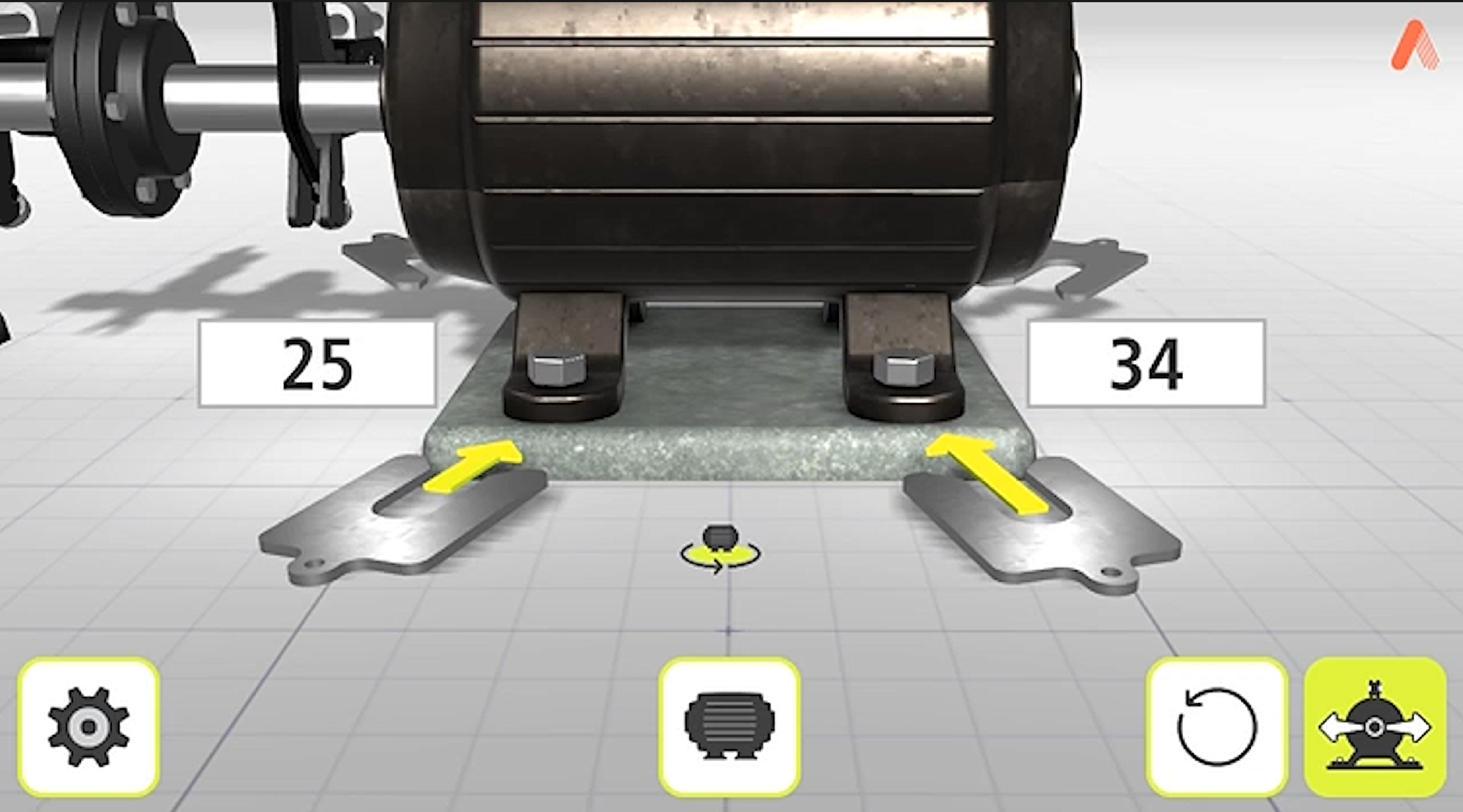

  • VertiZontal™ Alignment Function – Automatically calculates shim and horizontal corrections in one step, eliminating the need to remeasure between planes.
  • High Measurement Flexibility – Suitable for a wide range of horizontal shaft alignment applications across different machine types.
  • Wireless Connectivity (Bluetooth) – Enables easy communication between sensors and mobile devices for efficient setup and operation.
  • Fast, Accurate Results with Intelligent Sensors – Digital sensor technology provides precise measurements with strong resistance to environmental interference.

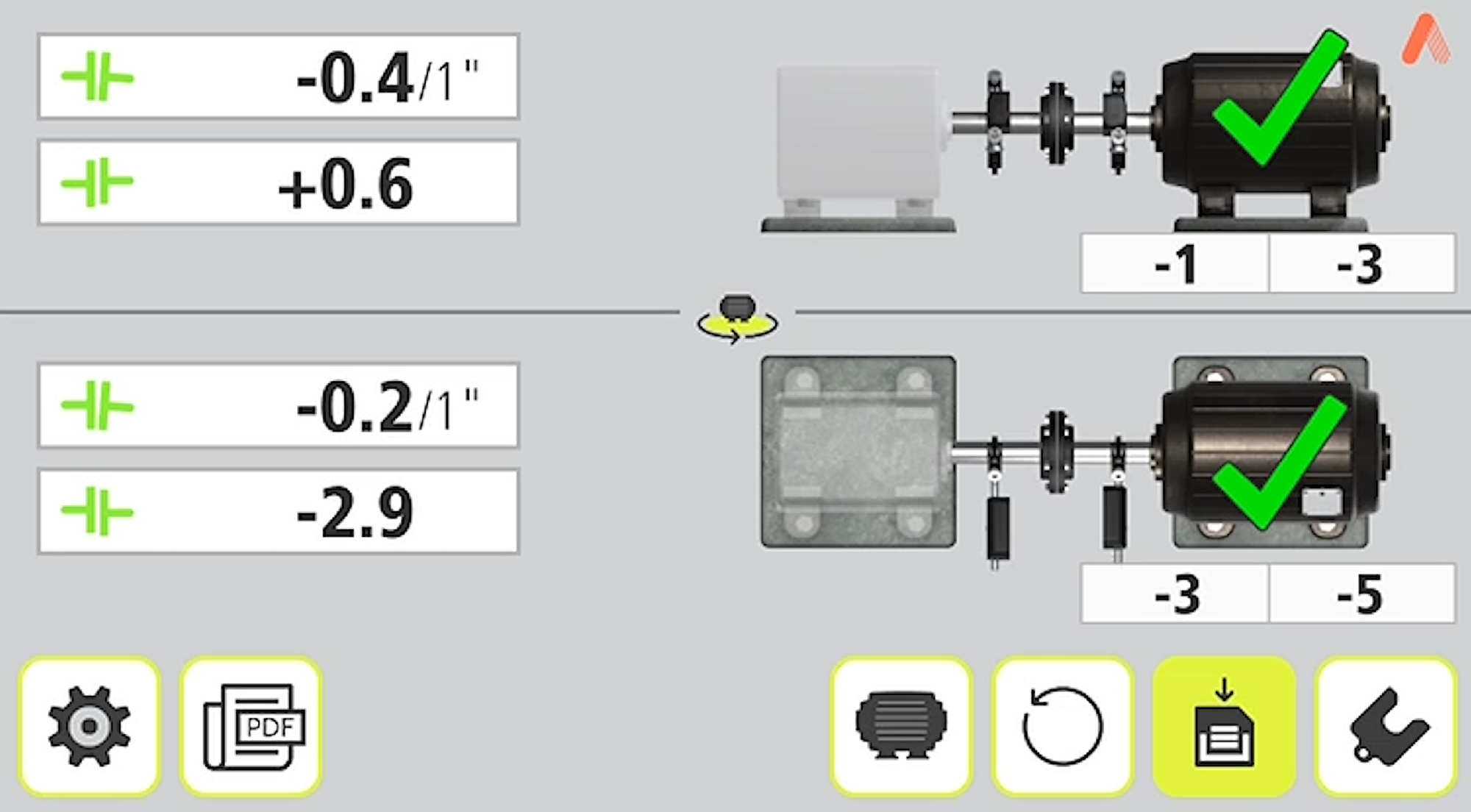

  • Instant PDF Reporting – Generate and share professional alignment reports directly from your mobile device on-site.
  • Rugged, Portable System – Durable sensors and compact hardware designed for industrial environments and field use.
  • App Compatibility - Works with the following Acoem applications, available for Android and iOS: • Shaft Alignment Horizontal • PDF Report
Acoem AT-100 complete shaft alignment tool

Acoem AT-100 complete shaft alignment tool

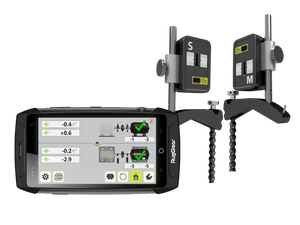

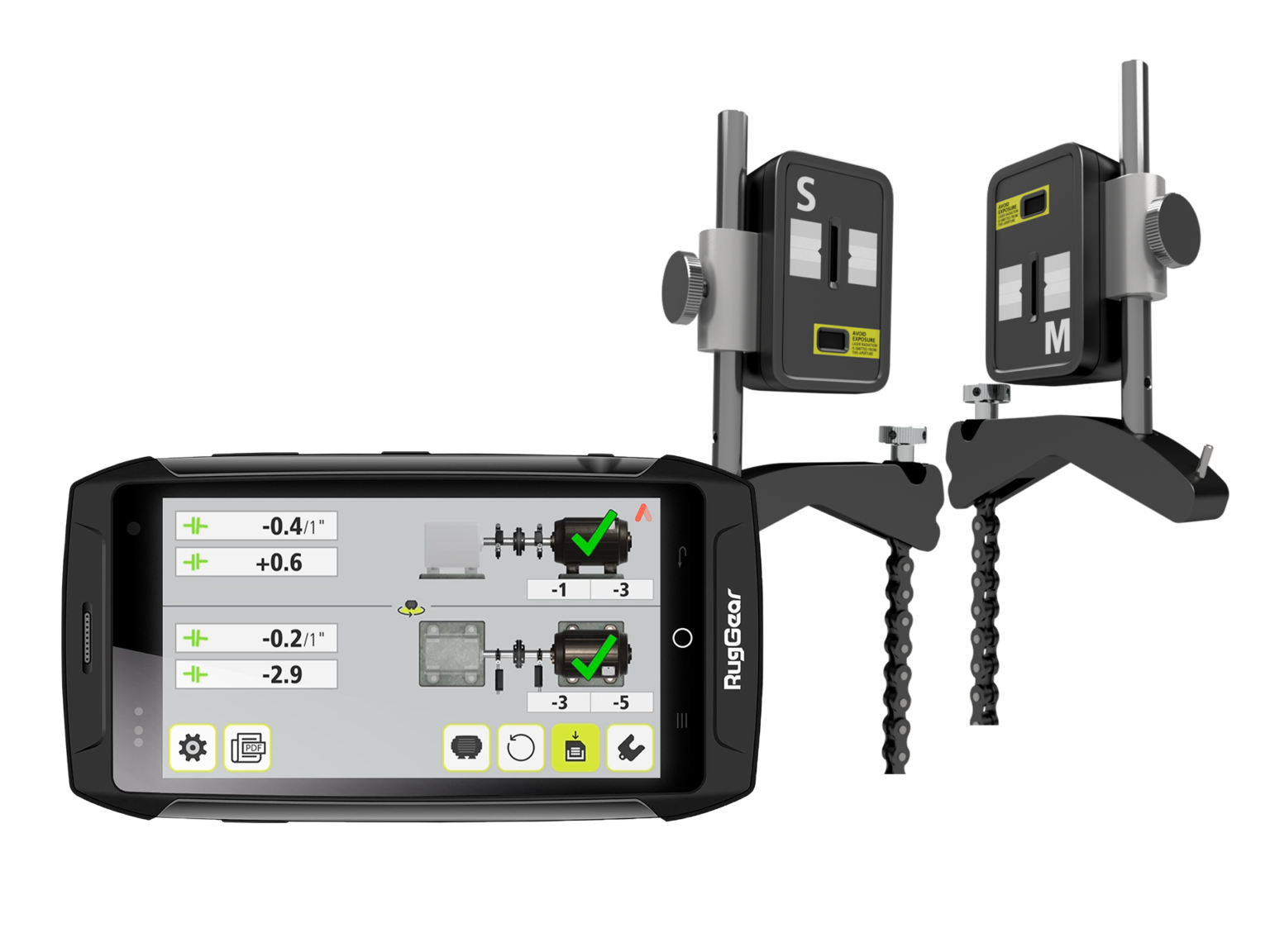

The AT-100 is a shaft alignment tool built by and for the user. Controlled by a rugged tablet, the system guides individuals through the alignment process with an intuitive application that couples with two wireless laser heads. Within minutes, the user can perform an alignment and save a report straight to their device.

Description

An app-based solution for shaft alignment

AT-100 is an app-based alignment tool that combines integrated apps, patented technology, and easy connectivity. The AT-100 is suitable for entry-level to expert shaft alignment work, the AT-100 shaft alignment tool provides high measurement flexibility. The intuitive tool works with the shaft alignment apps on a tablet or smartphone. It is simple to use and doesn’t require any special training. The AT-100 shaft alignment solution is the result of almost 40 years of shaft alignment expertise and innovation, leveraging the latest technology to enhance your user experience.

Horizontal Alignment Application

Navigate Your Alignments with Confidence

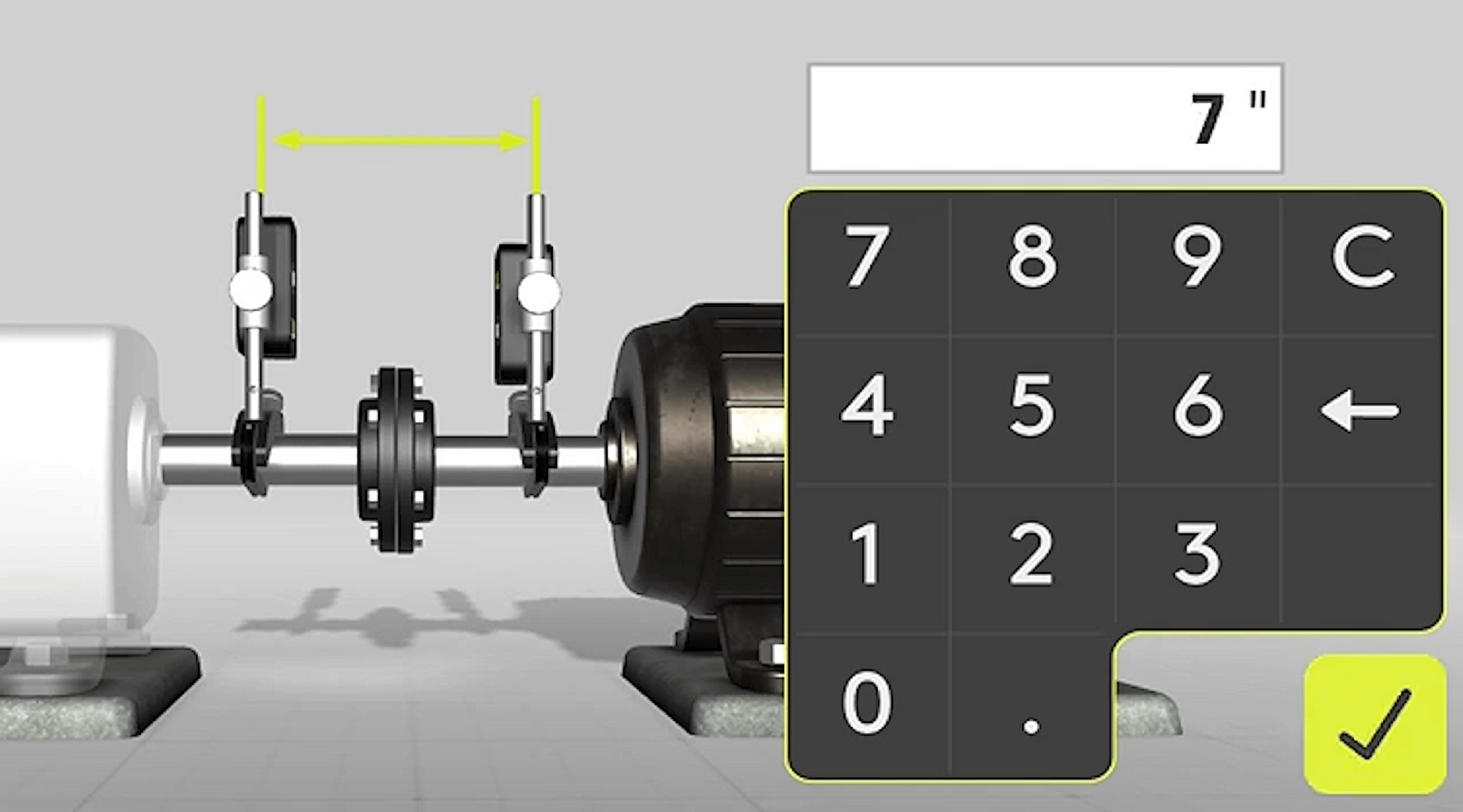

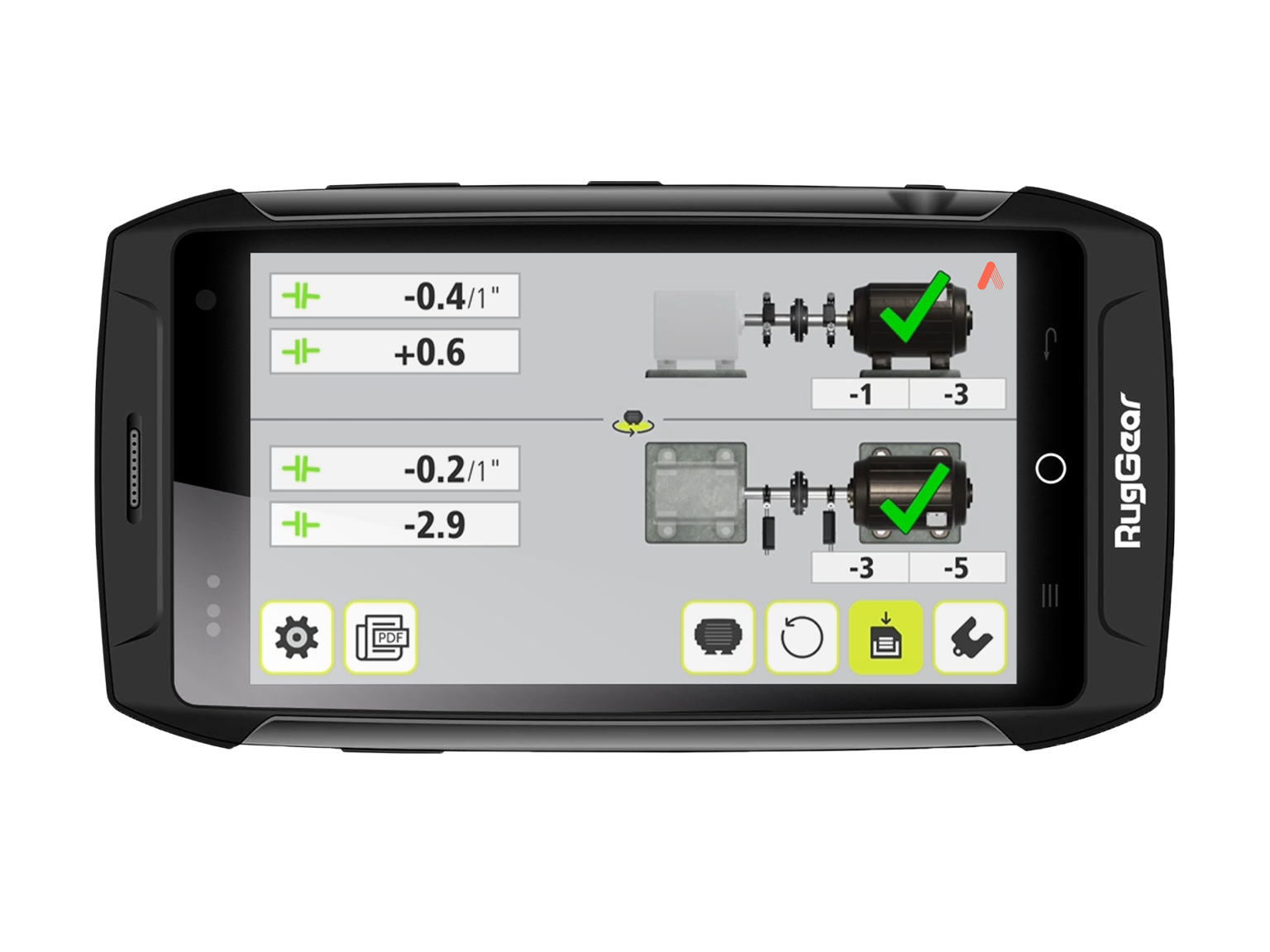

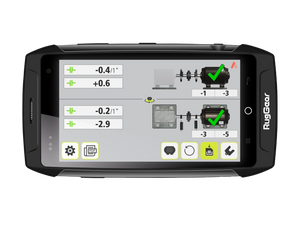

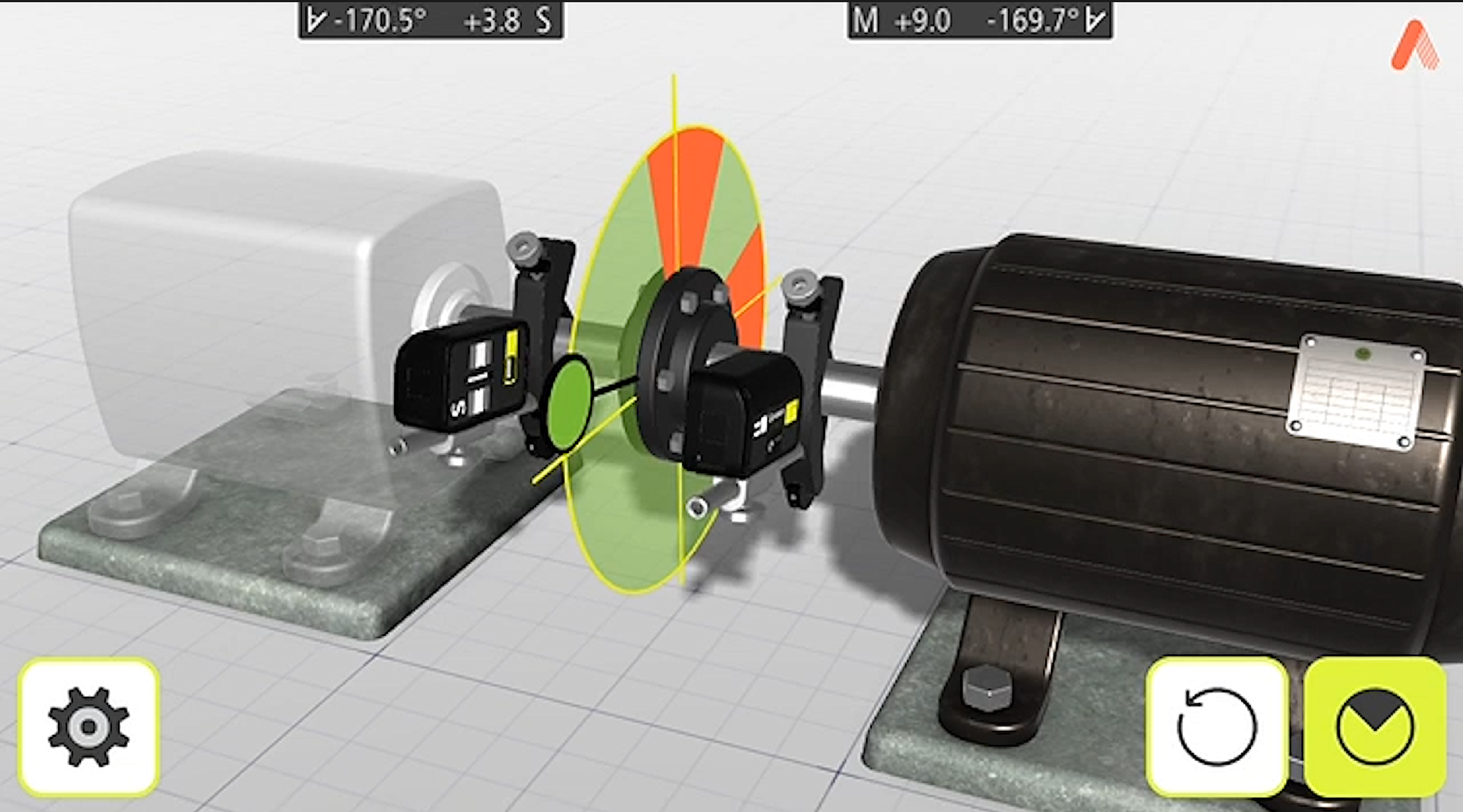

Acoem's Horizontal Alignment application was designed to take the mess out of aligning machines. The app utilizes our GuideU™ interface, which automatically guides the operator through 5 essential steps that take the guesswork out of alignment.

Setup

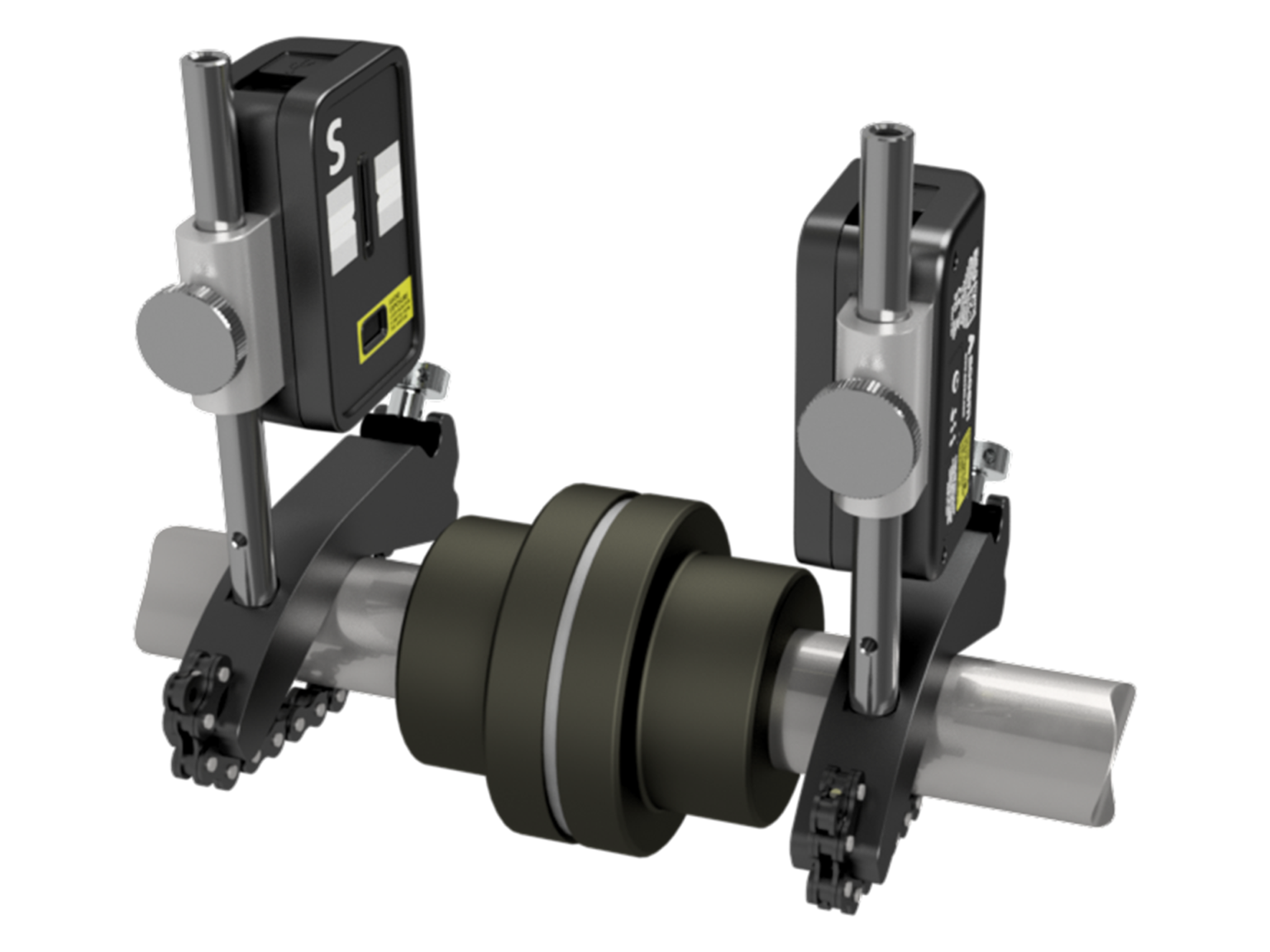

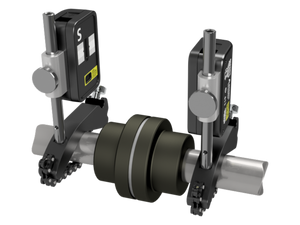

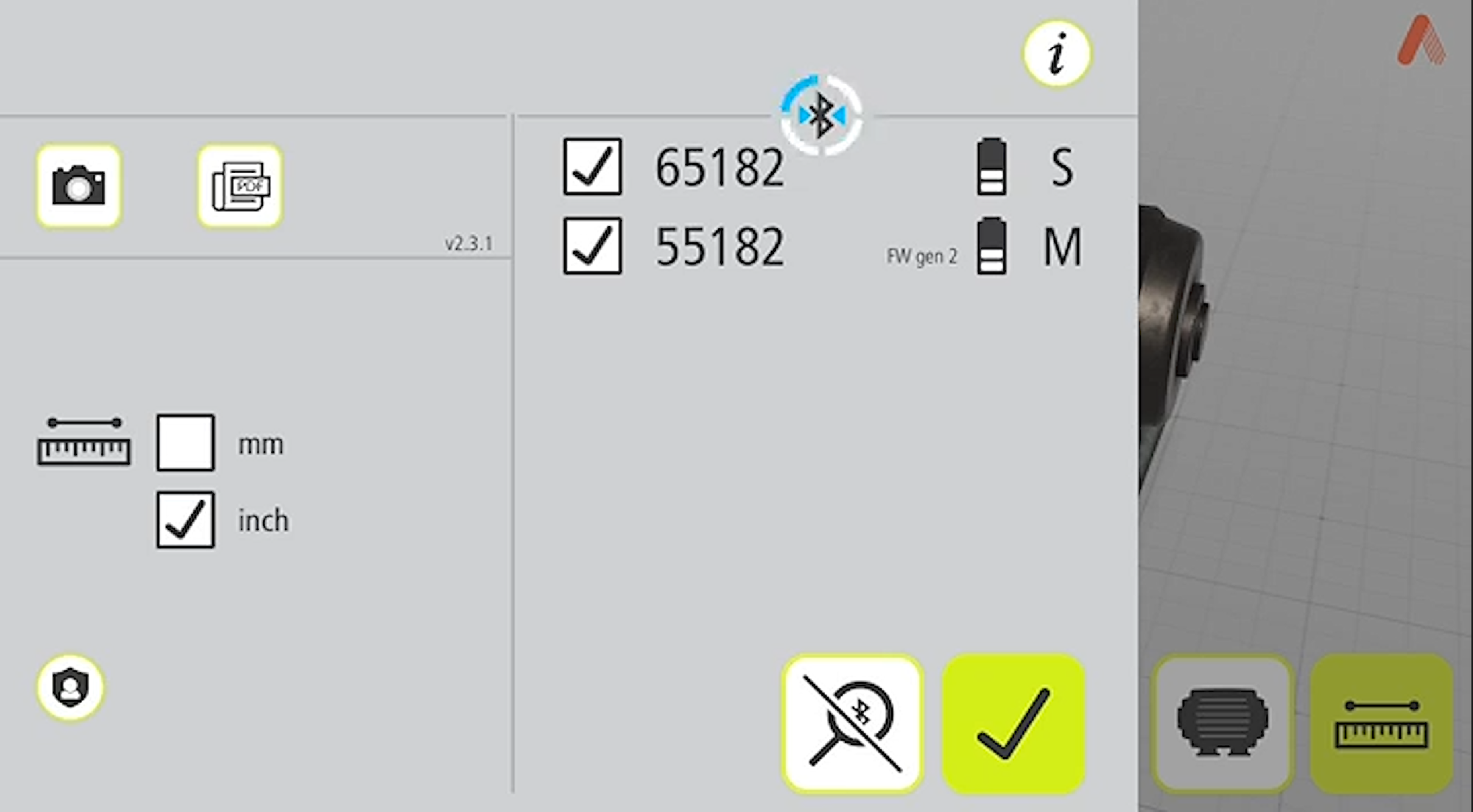

Mount wireless sensors to the machine shaft and connect them via Bluetooth to the Horizontal Alignment App on the tablet device.

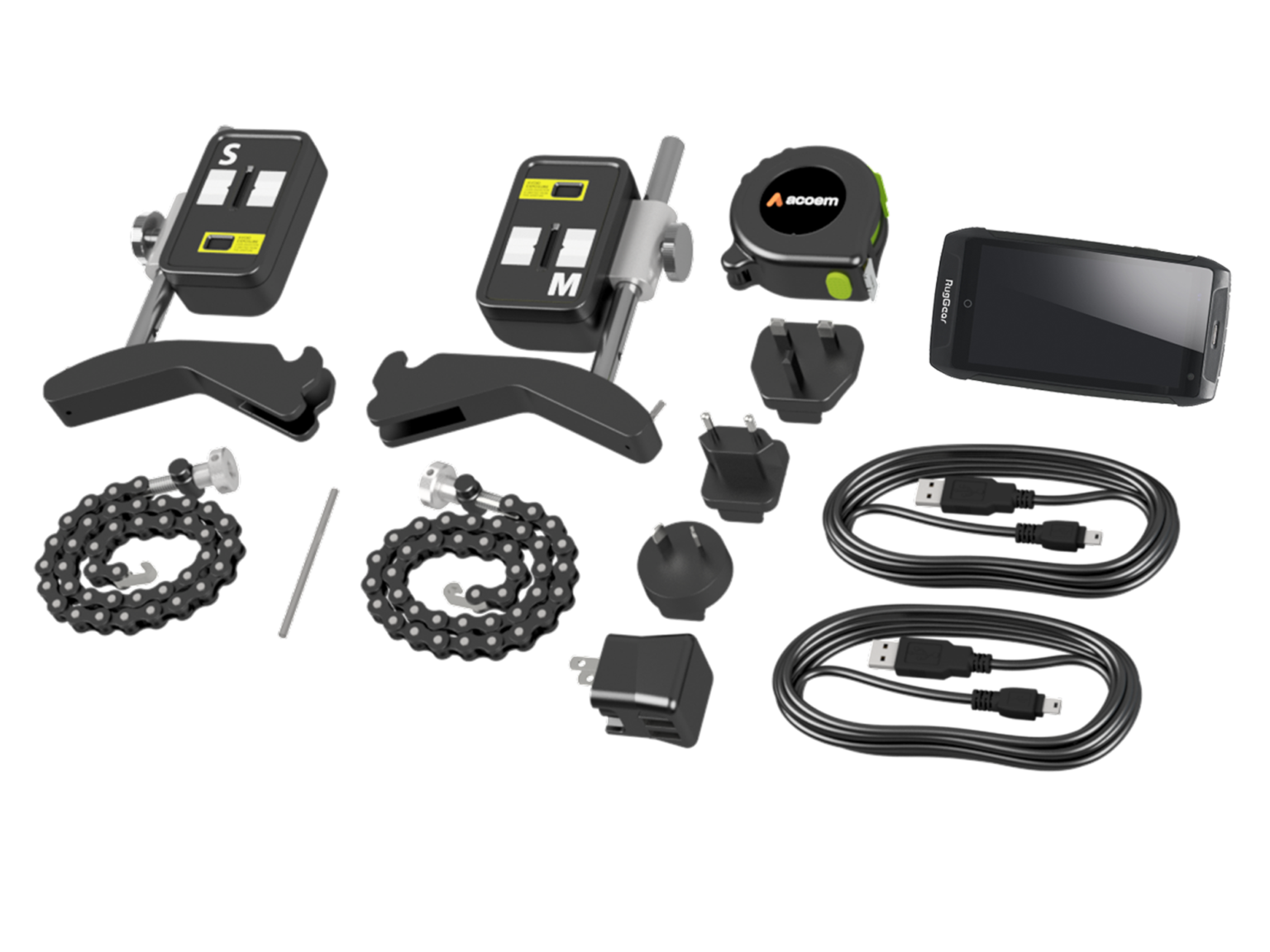

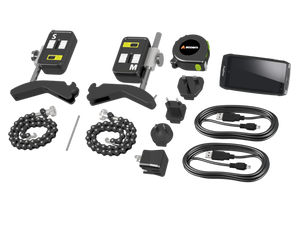

WHAT'S INCLUDED

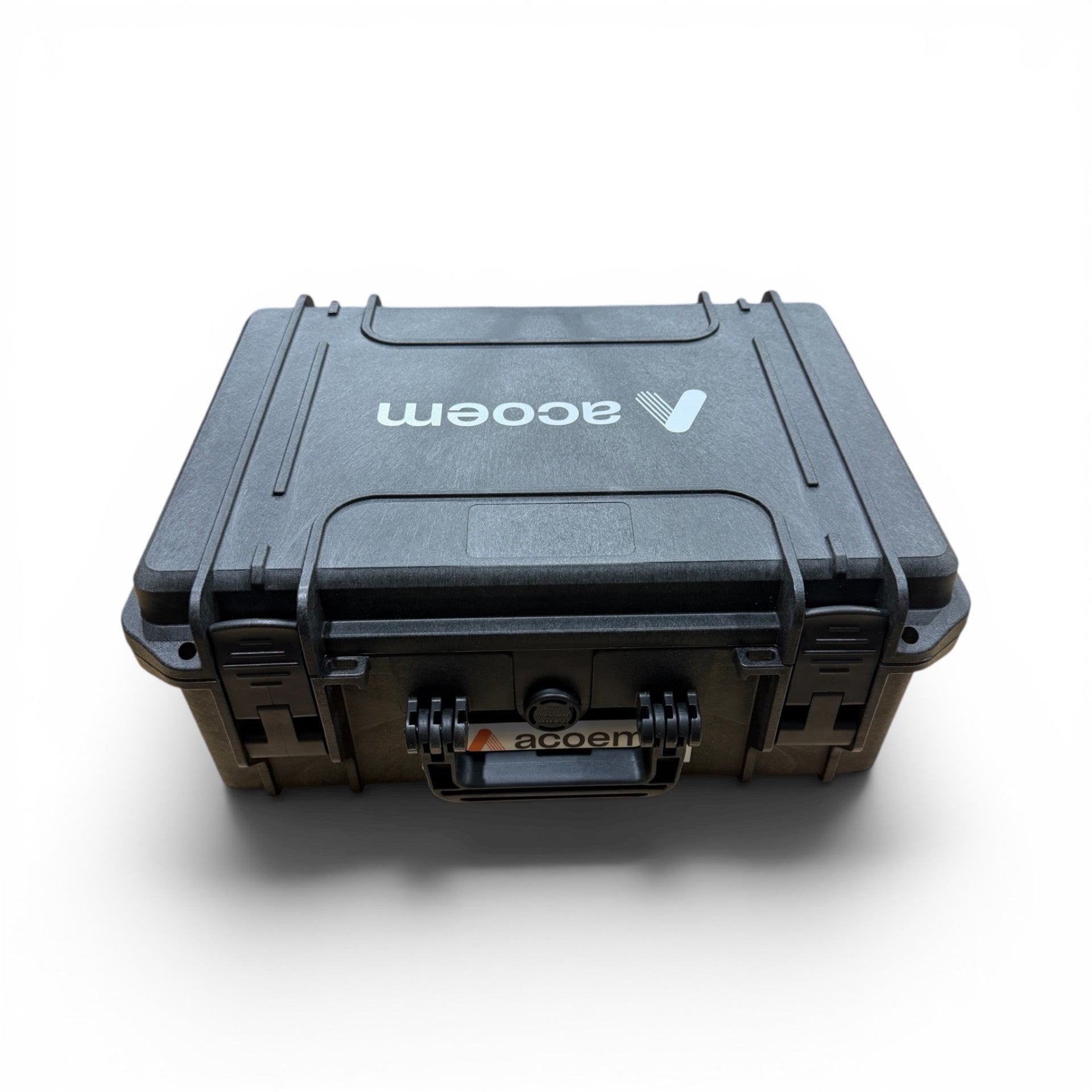

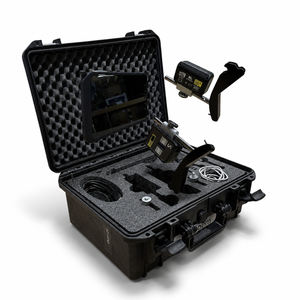

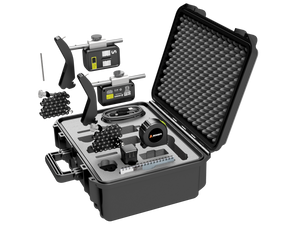

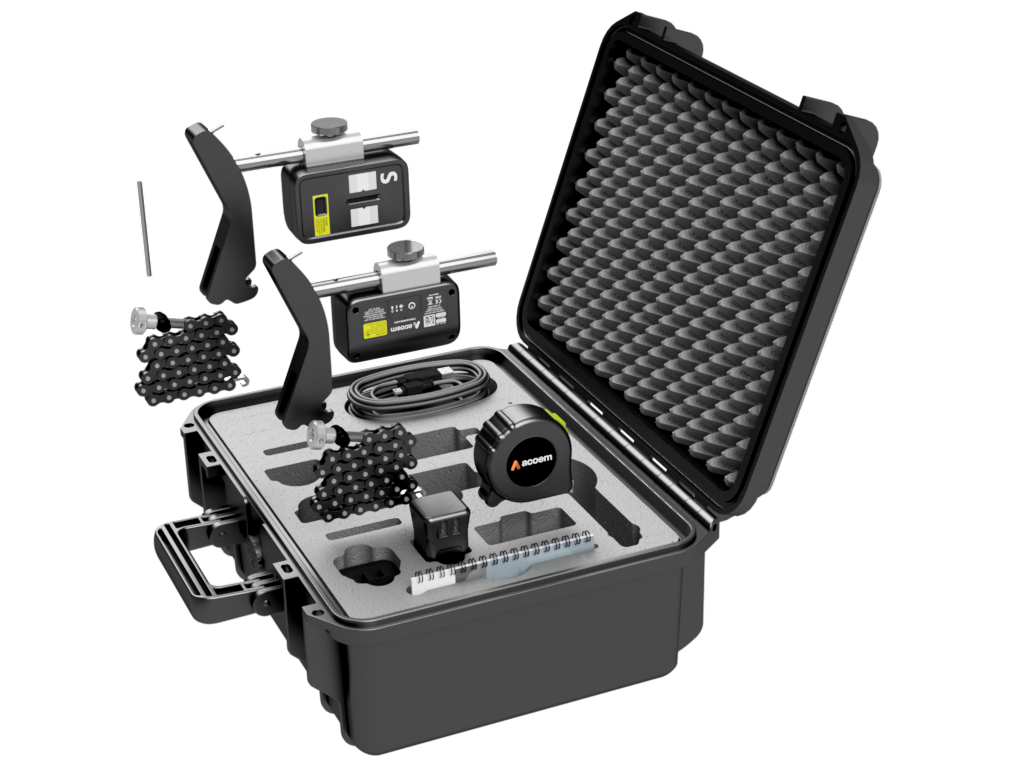

  • AT-100 package with case

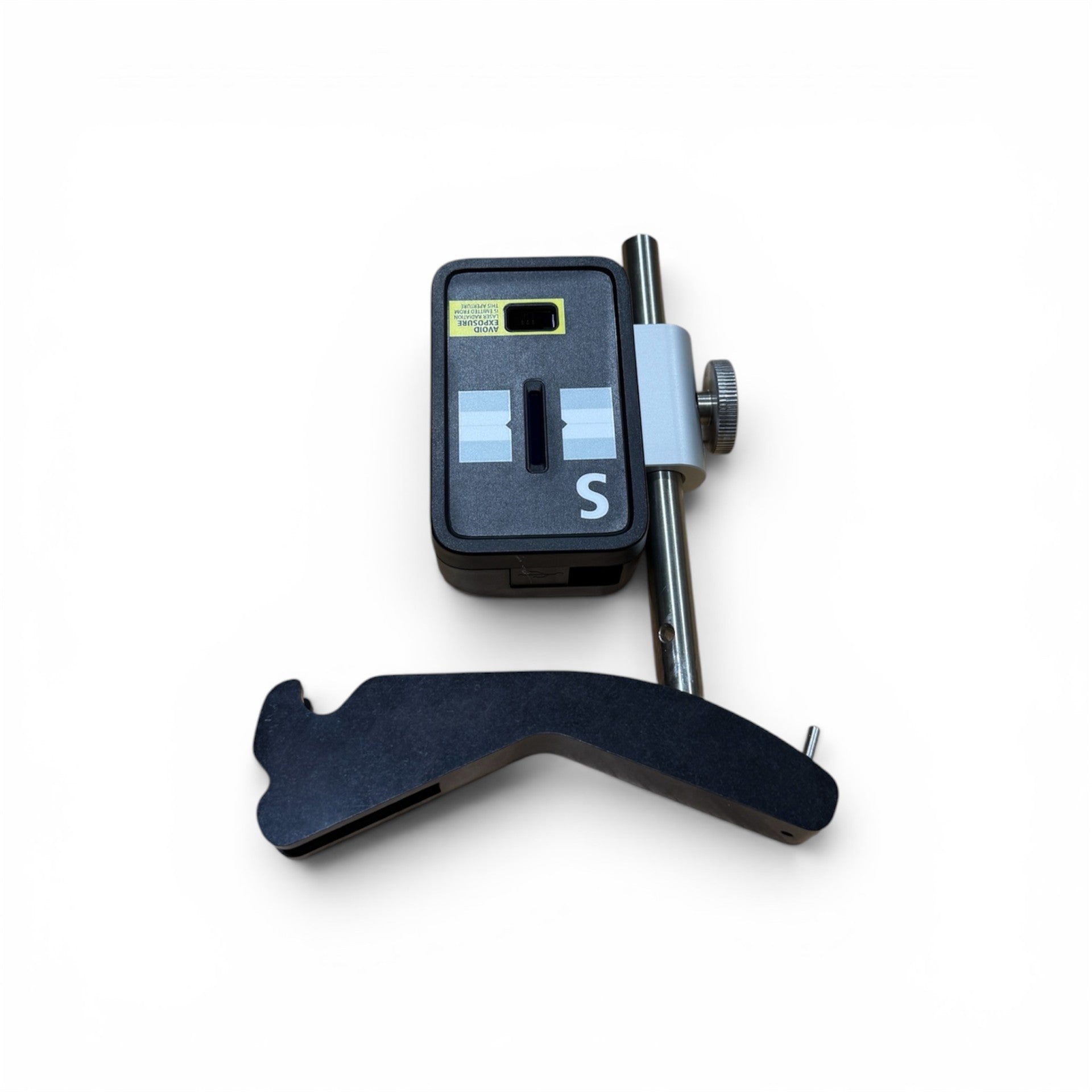

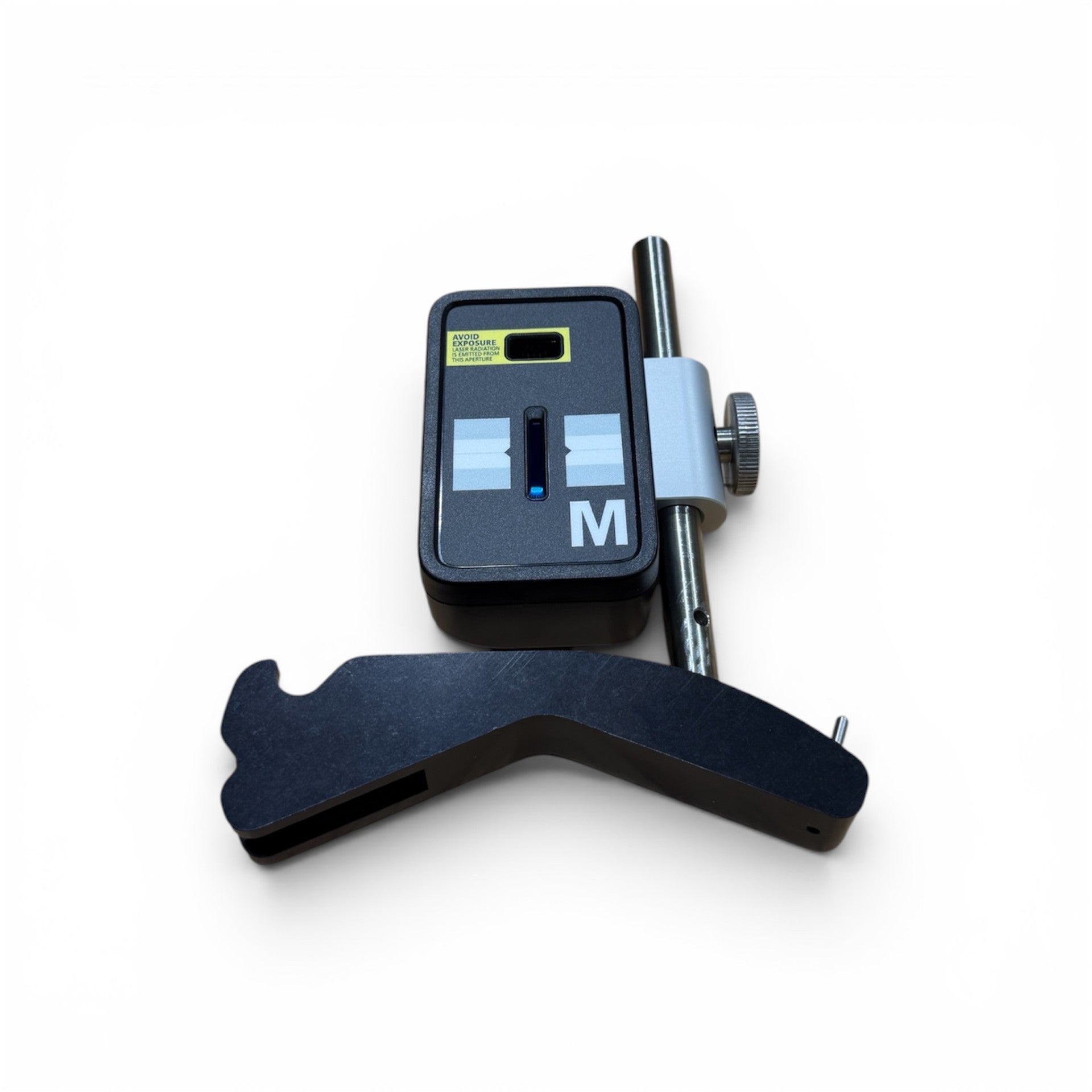

  • 2 Sensors, M8 & S8

  • Rod kit NXA

  • 2 V-brackets complete with chain

  • 1/2 in Chain w/ 60 Links (L=20 in)

  • Tape measure 15ft

  • 2 pcs of USB cables, A-mini B, 6 ft

  • Power supply 2 USB ports 5 VDC

Specifications

Hardware

Hardware TypeM8 / S8

Sensors

Housing MaterialAnodized Aluminum frame and high impact ABS plastic
WeightM8: 222 g (7.8 oz), S8: 222 g (7.8 oz)
Dimensions94 mm x 87 mm x 37 mm (3.7 in x 3.4 in x 1.4 in)

Environment

Operating Temp0 to 50 °C (32 to 122 °F)
Storage Temp-20 to 70 °C (-4 to 158 °F)
Long Term Storage TempRoom Temp 18 to 28 °C (64 to 82 °F)
Battery Charging Temp0 to 40 °C (32 to 104 °F)
Relative Humidity10 – 90 %
Environmental ProtectionIP54 (Dust and splash-proof)

Sensing Technology

Laser650 nm class II diode laser
Laser Power< 1 mW
Measurement DistanceUp to 2 m
DetectorDigital line sensor
Detector Length20 mm (1.2 in)
Detector Resolution0.01 mm
Measurement Accuracy1% ± 1 digit
Inclinometer Resolution1°
Inclinometer Accuracy±3°

Battery

TypeHigh performance Li-Ion battery or external power
Operating Time12 h
Charging Time8 h
Battery Capacity10.4 Wh
LED Indicators Wireless communication, laser transmission, and battery status indicators

Communication

Wireless CommunicationClass I Bluetooth transmitter
Communication Range10 m (33 ft)
Connectors1 USB Mini port (Charging: 5V, 0.5A)

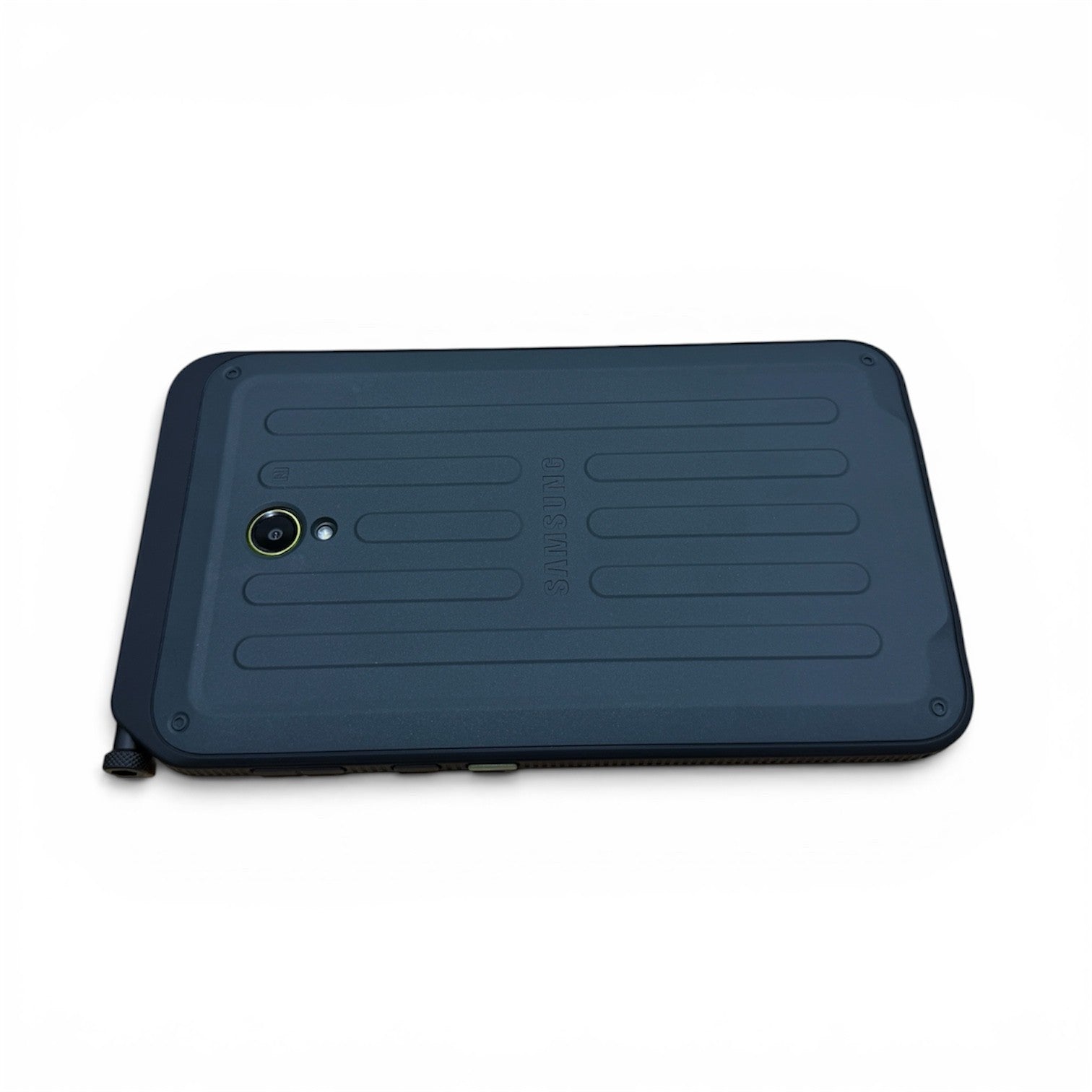

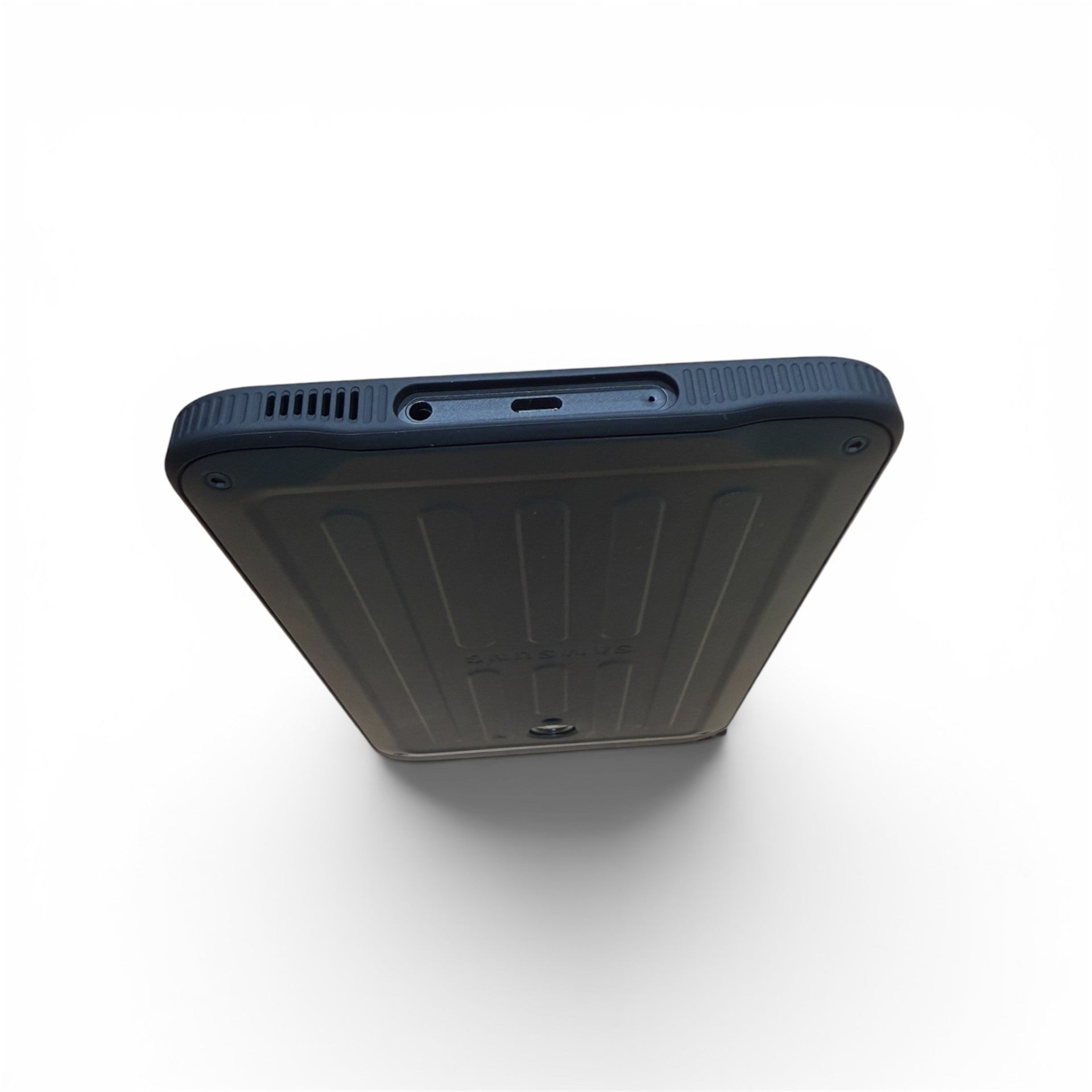

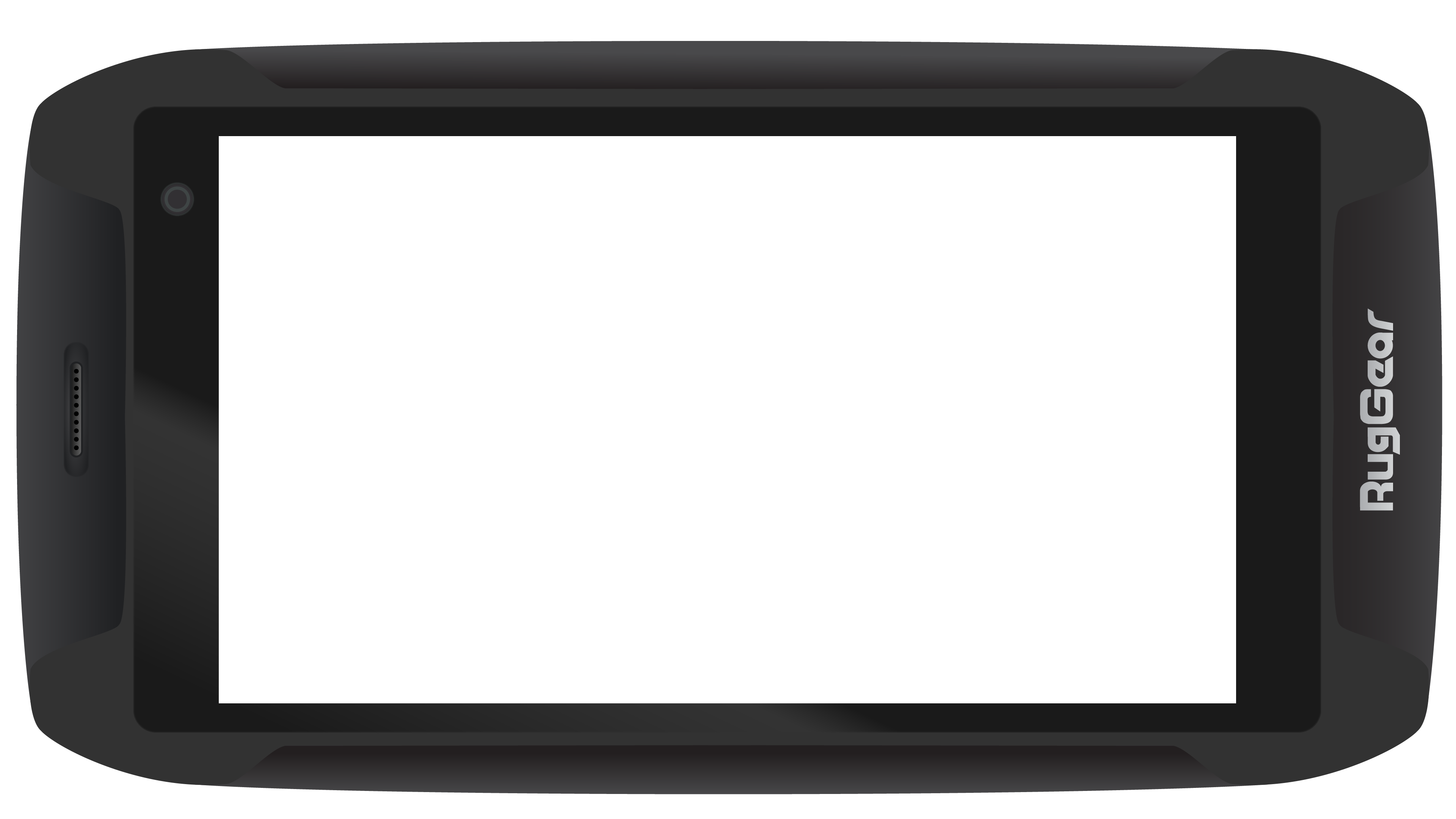

Handheld Algiz RT8 (Optional)

Display Sunlight-readable 8-inch capacitive multi-touch display with Gorilla Glass, plus rain and glove mode
Ruggedness IP67 rating (fully waterproof and dust-tight, including ports)
Operating Temperature -20°C to 60°C (-4°F to 140°F)
