Acoem Bearing Defender - Diagnostics Tool, Wireless, iOS & Android, ISO 10816-3
Brand:
ACOEM
- Regular price
- $4,320.00
- Sale price
- $4,320.00
- Regular price
-
Shipping calculated at checkout.
Free shipping on orders over $100
Use code at checkout.
FREESHIP
2 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Need Help?
Call us 1 (248) 429-9073
Oxford, Michigan
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features
- Wireless Sensor Tri-axial and piezoelectric

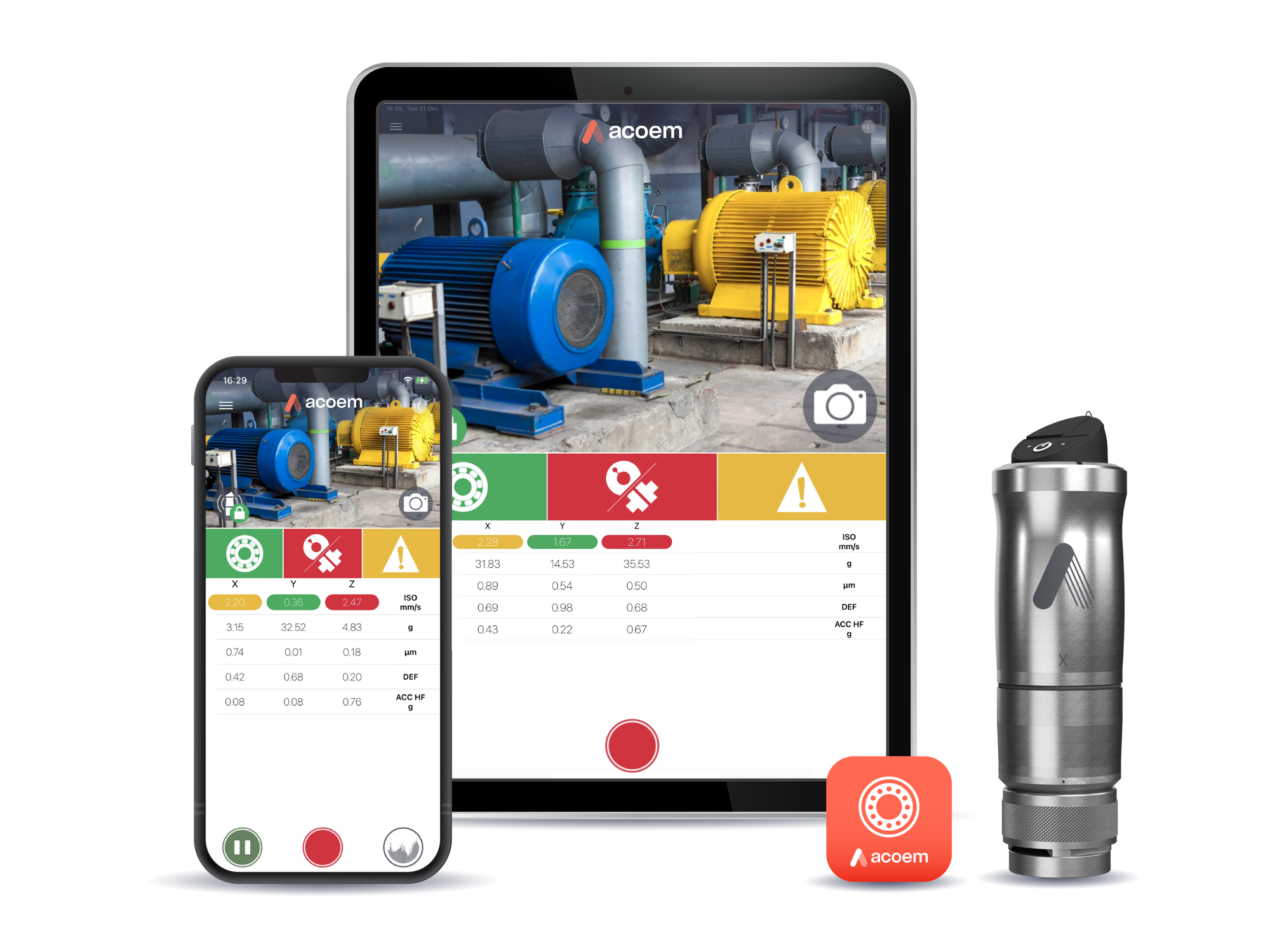

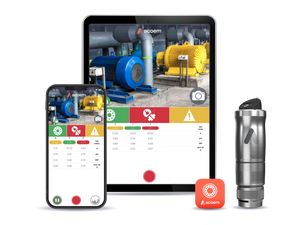

- Tablet-based app is compatible with Falcon, iOS and Android systems.
- Save time with automatic measurement setup and report or share results through email, or text message.
- Smart evaluation or bearing health, misalignment, unbalance.
- View or listen to data in live mode while greasing bearings.
- ISO 10816-3 machinery classification
WHAT'S INCLUDED
-

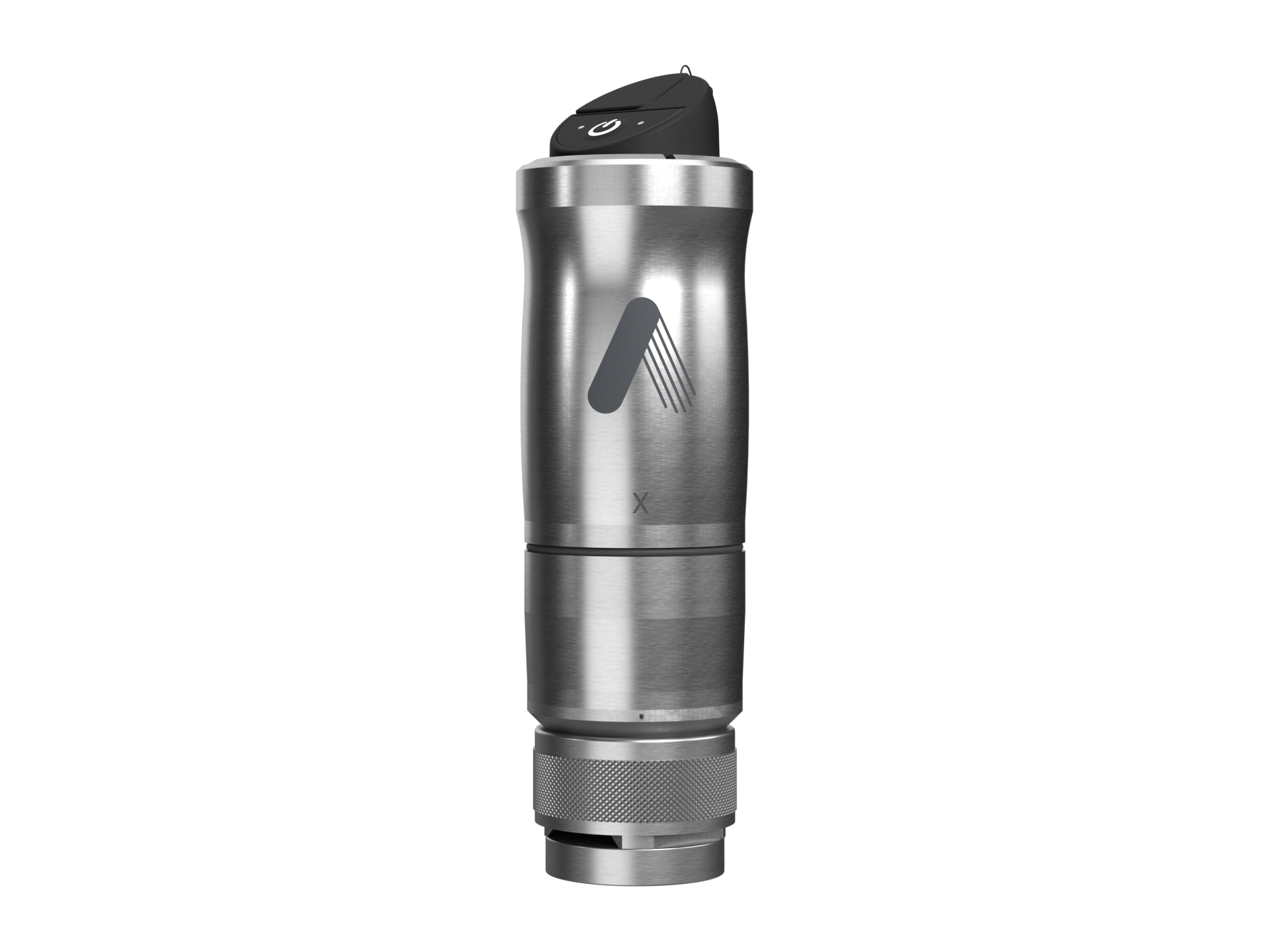

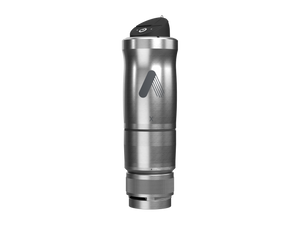

Wireless triaxial piezoelectric sensor
-
USB power supply module with international plugs and USB cable
-
High-power bipolar magnet for curved shafts with tri-axial orientation key
-
Carry-on bag
-
Contact point for single-axis measurements on small surfaces
-
Printed safety instructions manual & Printed calibration certificate
-
Software and firmware updates for the life of the tool
Specifications
Measurement & Performance
| Vibration Values | Velocity, Acceleration, Displacement (RMS over 5s) |
| High Frequency Acceleration | 3 kHz – 20 kHz (RMS averaged) |
| Bearing Defect Factor (DEF) | 0 – 12 bearing health grading |
| Acquisition Mode | Live or recorded mode |
| Audio Listening | Yes (live monitoring) |
FFT & Analysis

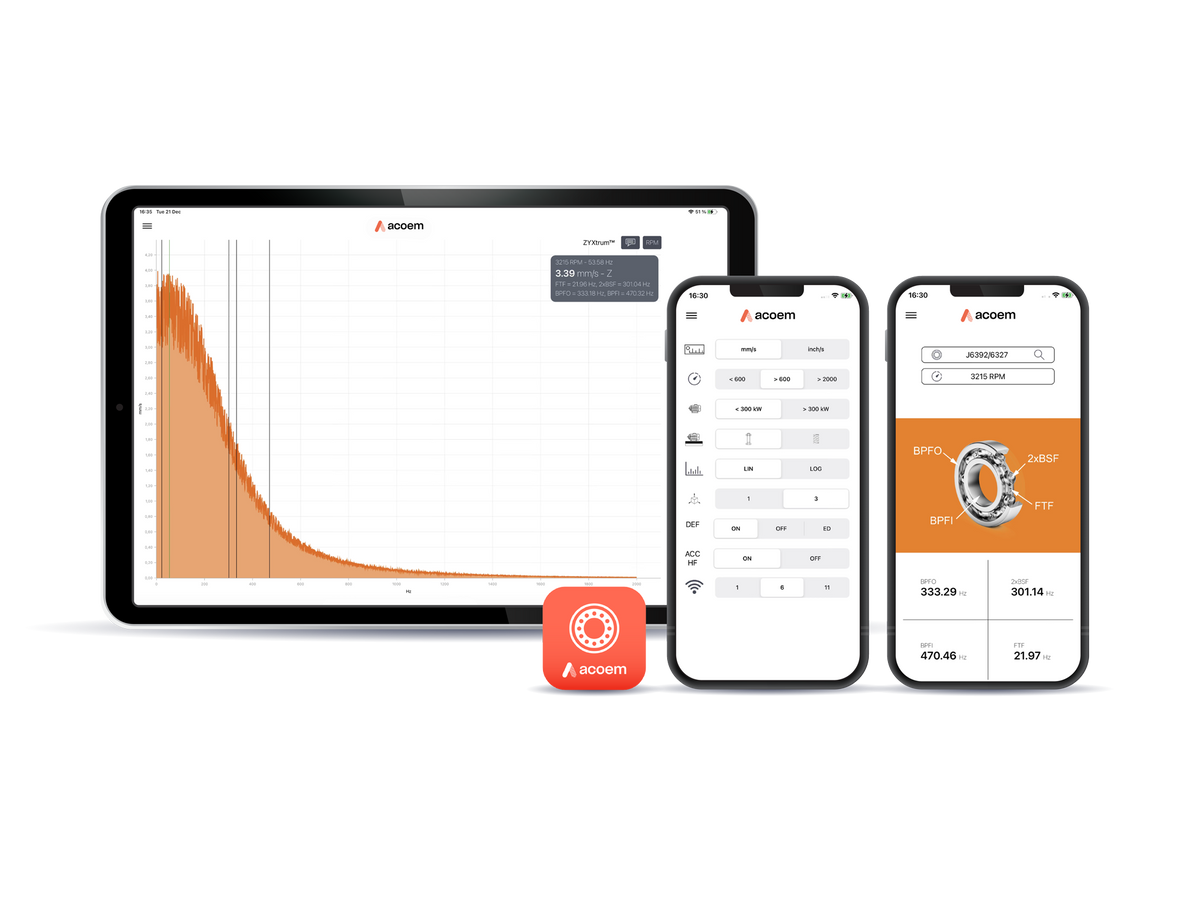

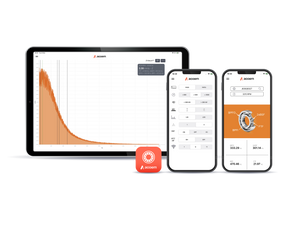

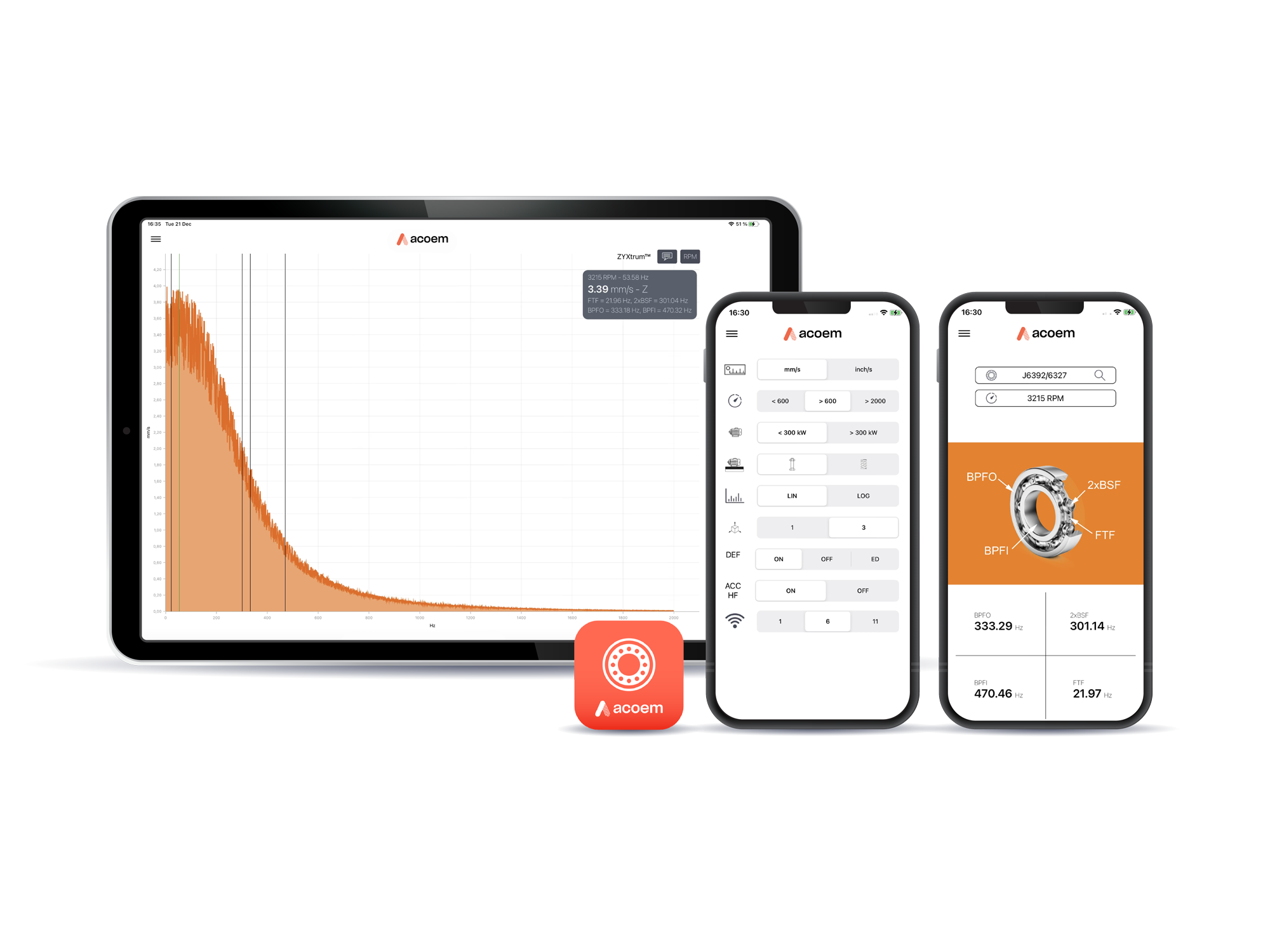

| Display Technology | ZYXtrum™ (combined tri-axial FFT) |
| Resolution | 3200 lines |
| Frequency Range | 2 Hz – 2000 Hz |
| Scale | Linear or Logarithmic |
| Cursor | Single cursor (frequency, amplitude, direction) |
| Bearing Fault Detection | Automatic markers for BPFO, BPFI, BSF, FTF |
Sensor Specifications
| Reference | CAC1008000 |
| Sensing Element | Piezoelectric (Annular shear mode) |
| Sampling Frequency | 51.2 kHz (all axes) |
| Full Scale | 80 g |
| Signal-to-Noise Ratio | > 80 dB |
| Accuracy | ±5% @ 120 Hz, 1g |
| Frequency Response | Z: 0.4 Hz – 15 kHz XY: 0.4 Hz – 6 kHz |
| Bandwidth | Up to 20 kHz |
Physical
| Dimensions | Ø42 × 116 mm |
| Weight | 373 g |
| Mounting | M6 threaded hole |
| Housing Material | Stainless steel |
Environmental
| Operating Temperature | -20°C to 60°C |
| Shock Resistance | 5,000 g peak |
| Vibration Resistance | 500 g peak |
| Protection | IP65 |
Battery & Power
| Battery Type | Li-Ion |
| Operating Time | ~8 hours |
| Charging | USB (adapter included) |
| Charging Time | ~8 hours |
| Auto Standby | After 10 minutes (no connection) |
Communication & Compatibility
| Wireless Protocol | Wi-Fi (Point-to-point) |
| Range | Up to 25 m (line of sight) |
| Wi-Fi Channels | 1, 6, 11 (user selectable) |
| Mobile Compatibility | iOS 9.3+, Android 4.4.2+ |
| App | Universal icon-based interface |
