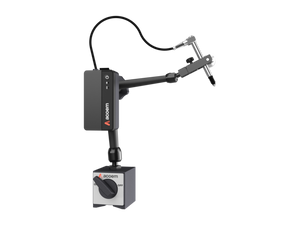

Acoem Runout Probe (099-NXA5) Pre-Alignment Tool - Measure runout on shafts/couplings, soft foot movement, bearing clearances
- Regular price
- $3,025.00
- Sale price
- $3,025.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features
- Measure the actual movement on each foot of your machine
- Achieve perfect results with clear on-screen guidance
- Save results to a report
Description
The pre-alignment steps of machinery shaft alignment are fundamental and critical for ensuring accurate alignment. To facilitate this process, we have developed the Runout Probe pre-alignment tool. It is the first displacement probe that can be integrated with a laser alignment system.

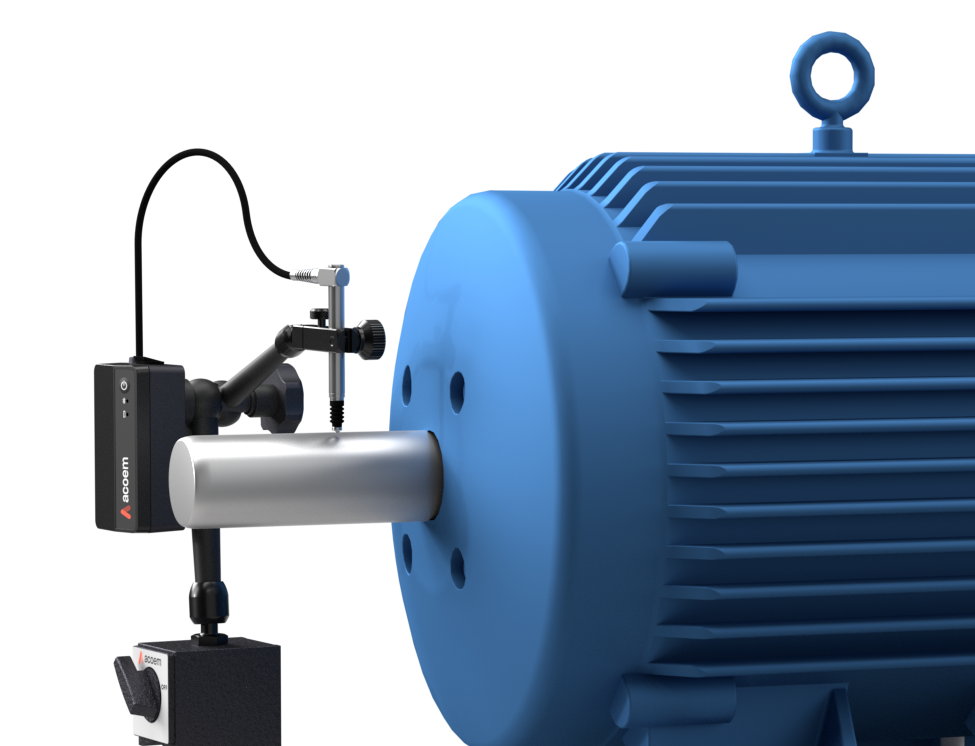

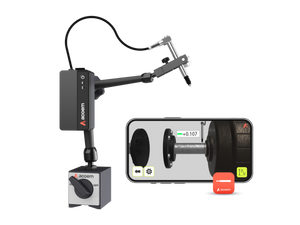

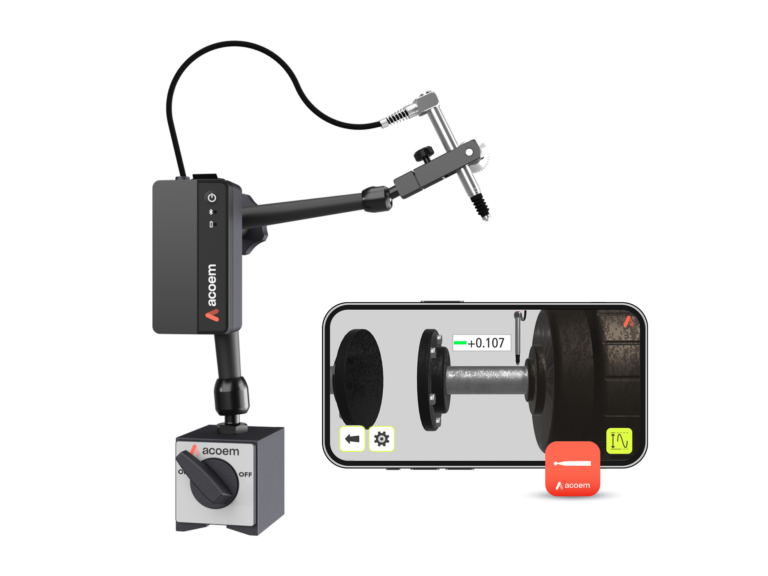

This app-based tool connects wirelessly to any tablet or mobile phone, including the Acoem NXA Shaft Alignment System. It is capable of performing a variety of pre-alignment checks, such as:

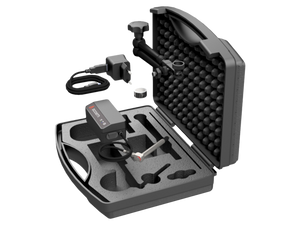

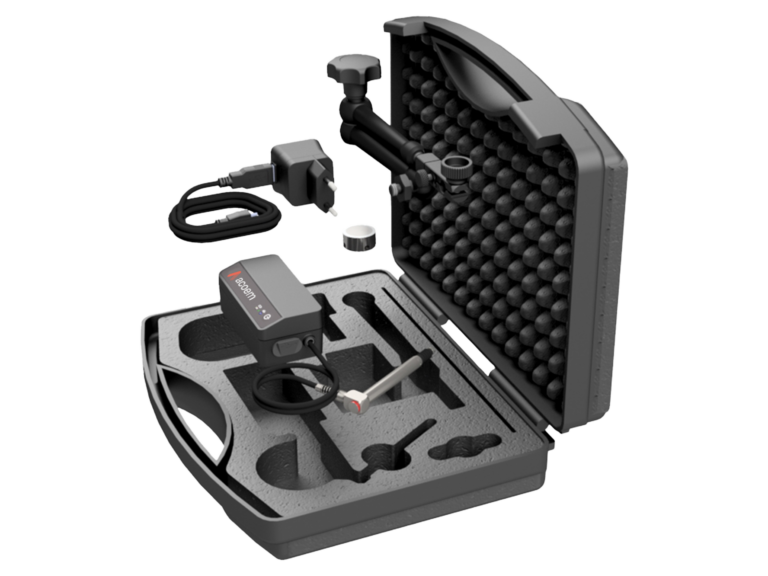

WHAT'S INCLUDED
-

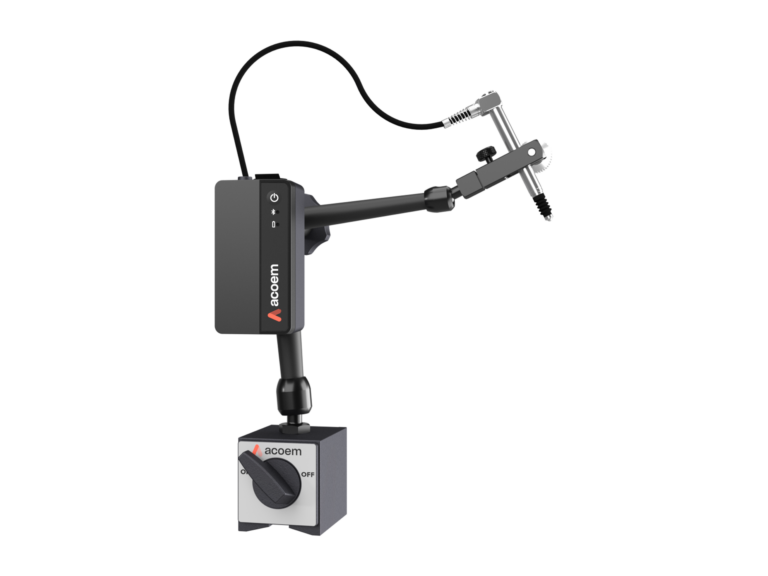

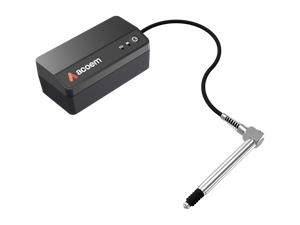

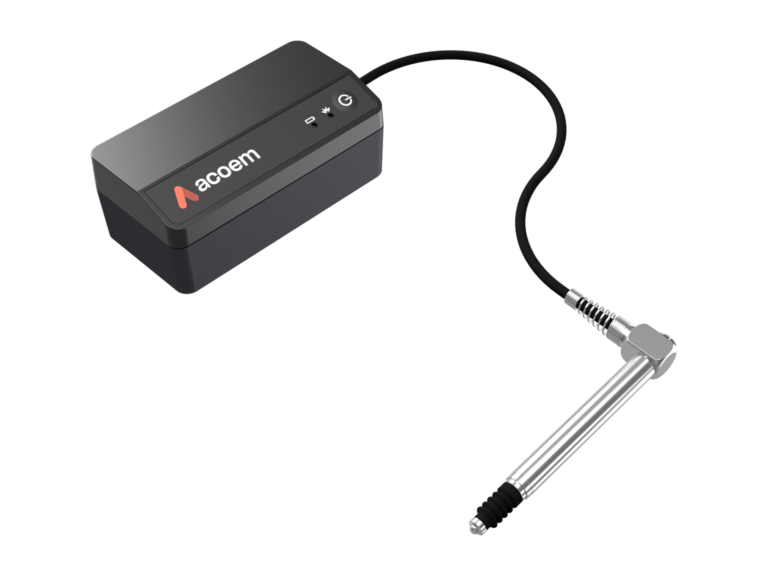

LVDT Sensor (Pen Unit)
-
Magnet Nd 25×12 M8 Zn
-
USB Cable A-Micro
-
Sensor Stand (Without Magnetic Base)
-
Magnetic Base (Optional)
-
Adjustable Probe Tip
Specifications
Runout Probe Package with Case
| Weight (including all parts) | 1.61 lbs (0.73 kg) (Incl. Case, Excl. Packaging Box) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Long Term Storage Temperature | Room Temp. 64 to 82°F (18 to 28°C) |
Case
| Material | Polypropylene |
| Weight (empty) | 1.01 lbs (0.46 kg) |
| Dimensions | 10.8 in x 9.1 in x 3.3 in (275 mm x 230 mm x 83 mm) |
Pen Unit
| Housing Material | ABS Plastic |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Battery Charging Temperature | 32 to 104°F (0 to 40°C) |
| Long Term Storage Temperature | Room Temp. 64 to 82°F (18 to 28°C) |
| Relative Humidity | 10 – 90% |
| Weight | 5.01 oz (142 g) |
| Dimensions (Battery Unit) | 1.7 in x 3.6 in x 1.3 in (44 mm x 91 mm x 33 mm) |
| Dimensions (Pen Body) | Length: 3.34 in (84.85 mm), Diameter: ø0.31 in (ø8 mm) |
| Cable Length | 15.7 in (400 mm) |
Pen Unit (Cont)
| Environmental Protection | IP65 |
| Measuring Range | 0.20 in (5 mm) |
| Mechanical Travel | 0.26 in (6.6 mm) |
| Measuring Force | 0.70 N ± 25% |
| Repeatability | 0.15 µm |
| Thermal Drift | 0.25 µm/°C |
| Accuracy Error (K = Reading in mm) | ±MAX (5+|2*K|; |7*K|) µm |
| Contact Type | ø0.12 in (ø3 mm) Carbide |
| Contact Thread | M2.5 |
| Interface | Membrane Switch Keyboard |
| Peripherals (User Accessible) | 1 USB Micro Port Charging: 5V, 0.5A |
| Wireless Communication | Class I Bluetooth Transceiver with Multi-Drop Capability BLE Bluetooth Low Energy (BT 4.0) |
| Communication Range | 33 ft (10 m) |
| Power Supply | Rechargeable Li-Ion Battery or External Power Supply |
| Battery Capacity | 10.4 Wh |
| Operating Time | 11 Hours of Continuous Use |
| Battery Charging Time (System Off, Room Temperature) | 8 Hours |
| LED Indicators | Wireless Communication and Battery Status Indicators |
