About
Description

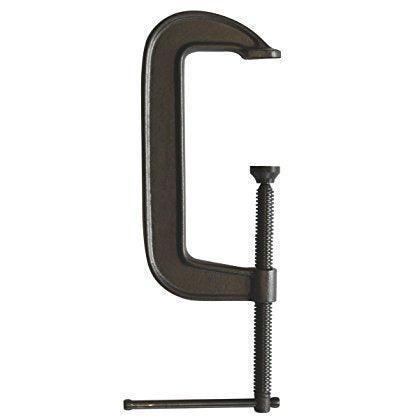

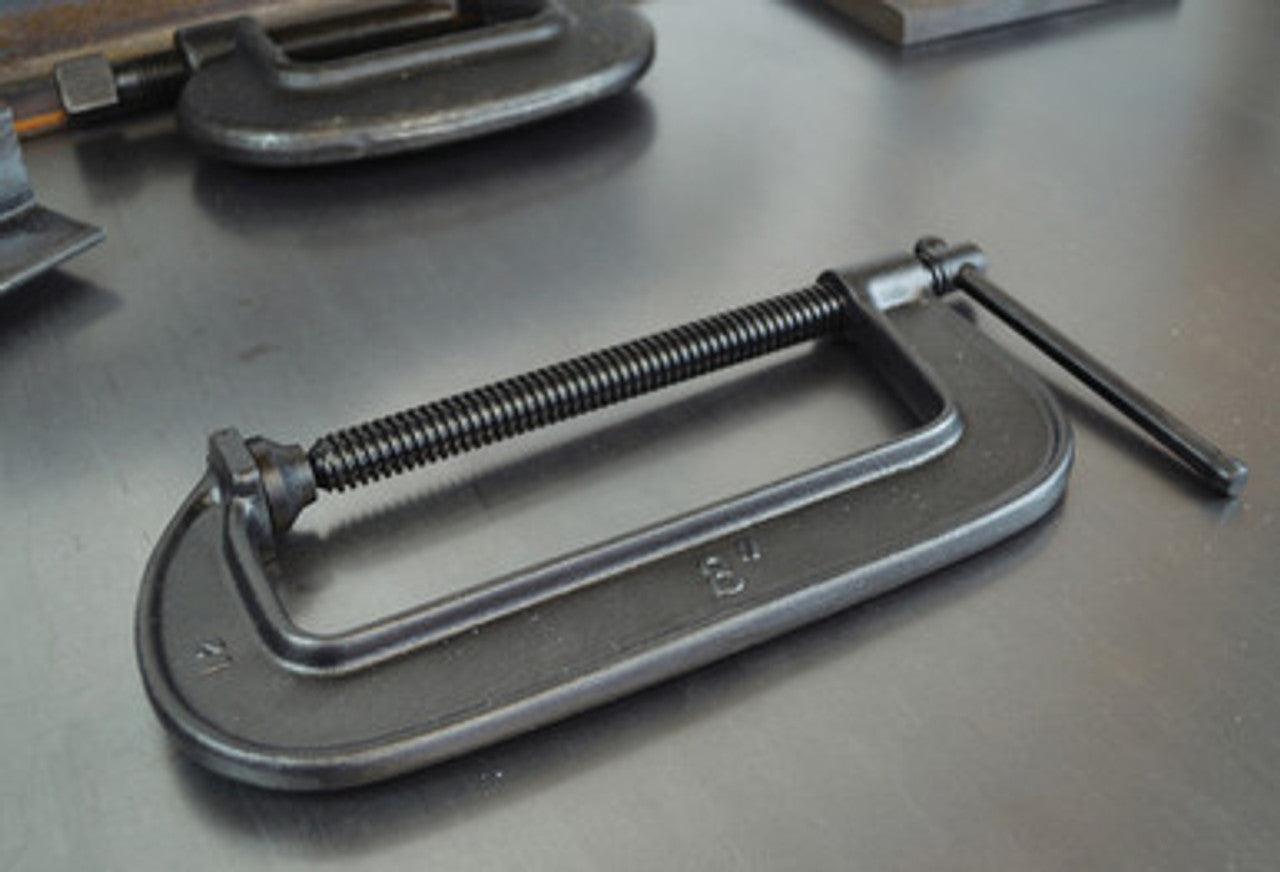

540 series ductile alloy C-clamps Cast ductile iron frame has approximately twice the tensile strength of similarly capacity clamps made of malleable cast iron. This clamp recommended for lighter duty, such as light assembly, sheet metal fabrication, woodworking, auto repair etc.
Product details
- Spindles and pads are corrosion resistant
- Rugged frames designed for strong clamping force
- Sliding steel T-bar
- Ideal for light manufacturing and woodworking
Clamping Specifications
| Model | Clamping Capacity | Throat Depth | Clamping Force | Approx. Weight |
|---|---|---|---|---|
| 540-2 1⁄2 | 0-2 1/2" | 1 3/4" | 1100 lbs | 1.20 lbs |
| 540-3 | 0-3" | 1 7/8" | 1800 lbs | 1.60 lbs |
| 540-4 | 0-4" | 2 1/16" | 2150 lbs | 2.23 lbs |
| 540-5 | 0-5" | 2 1/2" | 2250 lbs | 2.69 lbs |
| 540-6 | 0-6" | 2 3/4" | 2450 lbs | 3.20 lbs |
| 540-8 | 0-8" | 3 1/4" | 2750 lbs | 4.74 lbs |
| 540-10 | 0-10" | 3 5/8" | 2850 lbs | 7.56 lbs |
| 540-12 | 0-12" | 3 5/8" | 2850 lbs | 8.18 lbs |
| 540-14 | 0-14" | 3 3/4" | 2850 lbs | 8.93 lbs |
Description
540 series ductile alloy C-clamps Cast ductile iron frame has approximately twice the tensile strength of similarly capacity clamps made of malleable cast iron. This clamp recommended for lighter duty, such as light assembly, sheet metal fabrication, woodworking, auto repair etc.
Product details
- Spindles and pads are corrosion resistant
- Rugged frames designed for strong clamping force
- Sliding steel T-bar
- Ideal for light manufacturing and woodworking
Clamping Specifications
| Model | Clamping Capacity | Throat Depth | Clamping Force | Approx. Weight |
|---|---|---|---|---|
| 540-2 1⁄2 | 0-2 1/2" | 1 3/4" | 1100 lbs | 1.20 lbs |
| 540-3 | 0-3" | 1 7/8" | 1800 lbs | 1.60 lbs |
| 540-4 | 0-4" | 2 1/16" | 2150 lbs | 2.23 lbs |
| 540-5 | 0-5" | 2 1/2" | 2250 lbs | 2.69 lbs |
| 540-6 | 0-6" | 2 3/4" | 2450 lbs | 3.20 lbs |
| 540-8 | 0-8" | 3 1/4" | 2750 lbs | 4.74 lbs |
| 540-10 | 0-10" | 3 5/8" | 2850 lbs | 7.56 lbs |
| 540-12 | 0-12" | 3 5/8" | 2850 lbs | 8.18 lbs |
| 540-14 | 0-14" | 3 3/4" | 2850 lbs | 8.93 lbs |
Bessey
by
Bessey
Bessey Tools 540-3 C-clamp, ductile cast, 3 In. x 1.875 In., 1800 lb
