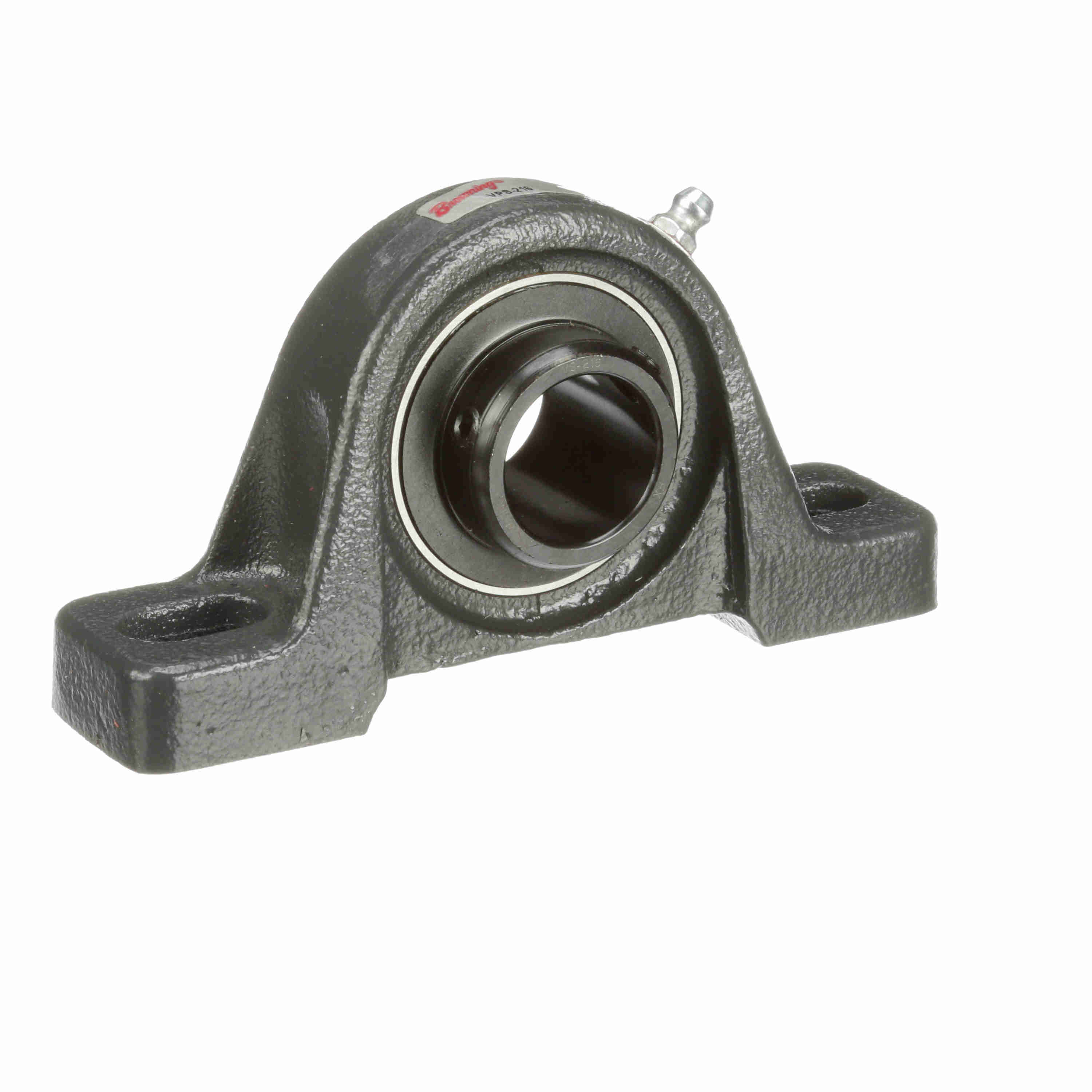

Browning VPS-216 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing Black Oxided Inner - Setscrew Lock
- Regular price
- $82.00
- Sale price
- $82.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
Description
Browning pillow block ball bearings provide a reliable, cost-effective solution for supporting rotating shafts in a wide range of industrial applications. Designed with a self-aligning insert, these bearings compensate for minor shaft misalignment while maintaining smooth, efficient performance. The robust cast iron housing delivers strength and stability, while precision-ground ball bearing inserts reduce friction and extend operating life.
Available in multiple housing styles, locking mechanisms, and seal options, Browning pillow block bearings are built to handle demanding conditions and simplify installation. Commonly used in material handling, conveyors, HVAC, and agricultural equipment, they ensure long-lasting operation with minimal maintenance.
Specifications
Dimensions
| Overall Height (in) | 2.81 in |
| Overall Length (in) | 5.5 in |
| Overall Width (in) | 1.41 in |
| Base Width (in) | 1.41 in |
| Bolt Size (in) | 3/8 in |
| Bore Diameter (in) | 1 in |
| Foot Height (in) | 0.59 in |
| Base to Center Height (in) | 1.4375 in |
| Length Through Bore (in) | 1.375 in |
| Bolt Spacing Min (in) | 3.69 in |
| Bolt Spacing Max (in) | 4.56 in |
| Centerline to Outermost Bearing Face (in) | 0.813 in |
Technical Specifications
| Rolling Element | Ball Bearing |
| Housing Base | Semi-Solid |
| Bore Shape | Straight |
| Housing Construction | One Piece |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Housing Color | Black |
| Cage Material | Molded fiber glass reinforced nylon |
| Seal Type | Single Lip Contact Seal with Flinger |
| Housing Type | Pillow Block, Two Bolt |
| Housing Style | Pillow Block |
| Ability to Relubricate | Yes |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Grease Fitting Thread Size | 1/8 NPT |
| End Cap Available | No |
| Housing Material | Cast Iron |
| Max Operating Temperature (C) | 107 °C |
| Bearing Insert Material | 52100 Bearing Steel |
| Max Operating Temperature (F) | 225 °F |
| Static Load Rating (lb) | 1,651 lb |
| Cage Type | Ball Riding Retainer |
| Base Length (in) | 5.50 in |
| Maximum Speed (RPM) | 5500 rpm |
| Size Code | 205 |
| Housing Coating | Powder Coated |
| Shaft Locking Type | Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Insert | VS-216 |
| Radial Clearance | Standard |
| Fixed vs. Expansion | Fixed |
| Inner Ring Outside Diameter (in) | 1.375 in |
| Dynamic Load Rating (lb) | 2,801 lb |
| Bearing Insert Finish | Black Oxide Coated Inner Ring |
| Bearing Type | Standard Duty |
General Specifications
| UPC | 662289525416 |
| Weight | 1.77 LB |
| Packaged Length | 3.50 IN |
| Packaged Width | 1.69 IN |
| Packaged Height | 5.75 IN |
| HTC | 8483.20.8040 |
| Country of Origin | Mexico |
