About
The GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. The line includes micrometer, tire shop, beam, and electronic torque wrenches and torque multipliers. The micrometer wrenches come available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drive sizes. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended specifically for checking wheel lug nuts and are available in 3/8" and 1/2" drive sizes. The electronic torque wrenches ensure a precise fastener torque level and are available in either 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow you to complete any job where accurate torque is required.
Features
| Thin profile, sealed, teardrop head design offers improved access and durability for highly effective application |
| Torque accuracy of +/- 3% CW between 20% and 100% of wrench capability |
| Pull adjustment collar feature allows you to make quick and easy torque setting changes |
| Scale markings are highly visible and easy to read |
| Midpoint on handle clearly marked for accuracy |
| Knurled anodized aluminum handle lets you grip the wrench comfortably, helping to reduce hand fatigue |
| Meets or exceeds ISO 6789 and ASME B107.300-2010 standards and specifications |
| 1 year limited warranty; calibration accuracy warrantied for 90 days |
Specifications
| Attribute | Details |
|---|---|
| Prop 65 | WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
| ASME Specification | B107.300 |
| Minimum Torque (Primary Scale) | 30 ft/lb |
| Tether Ready | No |
| Maximum Torque (Primary Scale) | 250 ft/lb |
| Minimum Torque (Alt Scale) | 54.2 Nm |
| Maximum Torque (Alt Scale) | 352.6 Nm |
| Torque Accuracy (20-100% of Full Range) | +/-3% Clockwise |
| Certified | No |
| Head Thickness Less Tang | 0.27 in |
| Primary Scale Increments | 2 ft/lb |
| Alt Scale Increments | 2.7 Nm |
| Head Thickness | 0.81 in |
| Type | Micrometer |
| Knurled | Yes |
| Flexible | No |
| Overall Length | 24.3 in |
| Head Width | 1.75 in |
| Packaging | Boxed |
| Weight (Catalog) | 3.50 lb |
| Warranty | 90 Days Calibration/1 Year on Parts |
| Drive Tang Size | 1/2 in |
| Head Length | 2.65 in |
| Tooth Count | 32 |
| Finish | Full Polish Chrome |
| Overall Height | 1.75 in |
| UPC | 099575005664 |
| Included Storage | Blow Mold Case |
| Overall Width | 1.75 in |
| Material | Alloy Steel |
The GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. The line includes micrometer, tire shop, beam, and electronic torque wrenches and torque multipliers. The micrometer wrenches come available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drive sizes. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended specifically for checking wheel lug nuts and are available in 3/8" and 1/2" drive sizes. The electronic torque wrenches ensure a precise fastener torque level and are available in either 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow you to complete any job where accurate torque is required.
Features
| Thin profile, sealed, teardrop head design offers improved access and durability for highly effective application |
| Torque accuracy of +/- 3% CW between 20% and 100% of wrench capability |
| Pull adjustment collar feature allows you to make quick and easy torque setting changes |
| Scale markings are highly visible and easy to read |
| Midpoint on handle clearly marked for accuracy |
| Knurled anodized aluminum handle lets you grip the wrench comfortably, helping to reduce hand fatigue |
| Meets or exceeds ISO 6789 and ASME B107.300-2010 standards and specifications |
| 1 year limited warranty; calibration accuracy warrantied for 90 days |
Specifications
| Attribute | Details |
|---|---|
| Prop 65 | WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
| ASME Specification | B107.300 |
| Minimum Torque (Primary Scale) | 30 ft/lb |
| Tether Ready | No |
| Maximum Torque (Primary Scale) | 250 ft/lb |
| Minimum Torque (Alt Scale) | 54.2 Nm |
| Maximum Torque (Alt Scale) | 352.6 Nm |
| Torque Accuracy (20-100% of Full Range) | +/-3% Clockwise |
| Certified | No |
| Head Thickness Less Tang | 0.27 in |
| Primary Scale Increments | 2 ft/lb |
| Alt Scale Increments | 2.7 Nm |
| Head Thickness | 0.81 in |
| Type | Micrometer |
| Knurled | Yes |
| Flexible | No |
| Overall Length | 24.3 in |
| Head Width | 1.75 in |
| Packaging | Boxed |
| Weight (Catalog) | 3.50 lb |
| Warranty | 90 Days Calibration/1 Year on Parts |
| Drive Tang Size | 1/2 in |
| Head Length | 2.65 in |
| Tooth Count | 32 |
| Finish | Full Polish Chrome |
| Overall Height | 1.75 in |
| UPC | 099575005664 |
| Included Storage | Blow Mold Case |
| Overall Width | 1.75 in |
| Material | Alloy Steel |

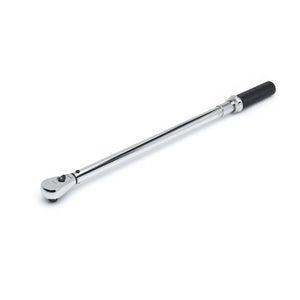

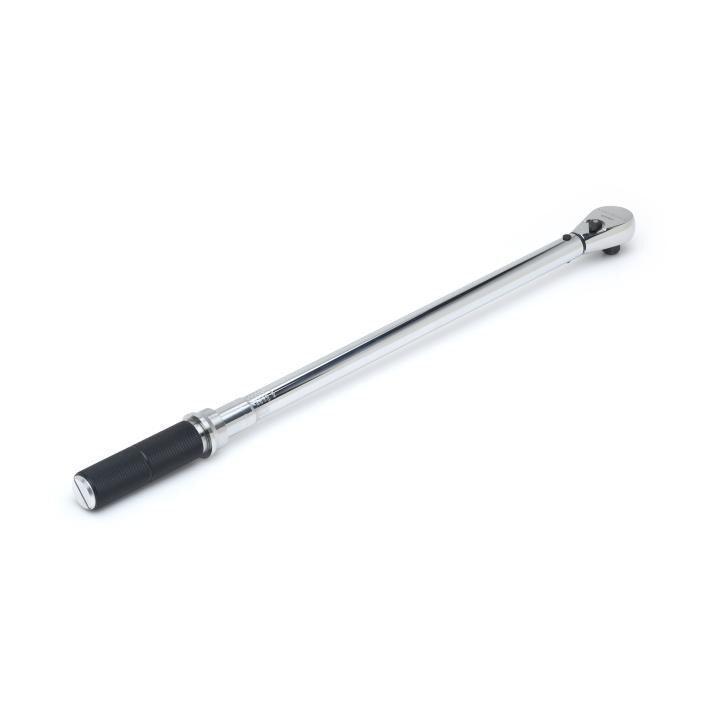

GearWrench 85066M - 1/2" Drive Micrometer Torque Wrench 30-250 ft/lbs
- Regular price
- $180.00
- Sale price
- $180.00
- Regular price
-
Free Shipping
Free ground shipping on orders over 100$
Use code: FREESHIP
