The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
Features
| 120XP™ head provides a 3° ratcheting arc to turn fasteners in narrow spaces |
| Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability |
| Angle settings offer +/-1% of reading of angle accuracy |
| Low profile tube, 15° flex teardrop head, and flush mounted on/off switch allow for better access in tight confines |

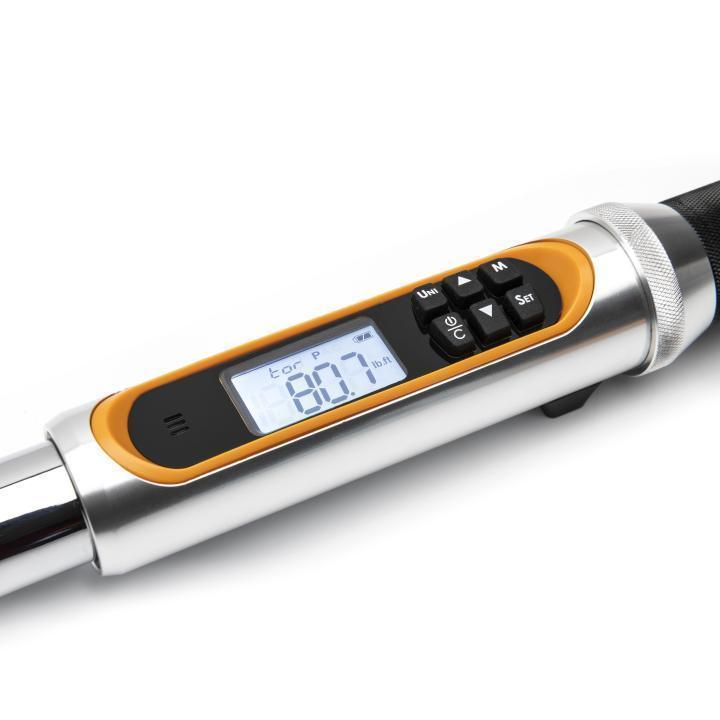

| Digitally tracks torque and angle measurements. Vibrating handle, buzzer, and LCD screen alert when target torque is reached |
| 3 function modes feature peak torque, angle, and peak angle for additional versatility |
| 5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm |
| 10 available preset torque settings allow you to quickly access frequently repeated applications |

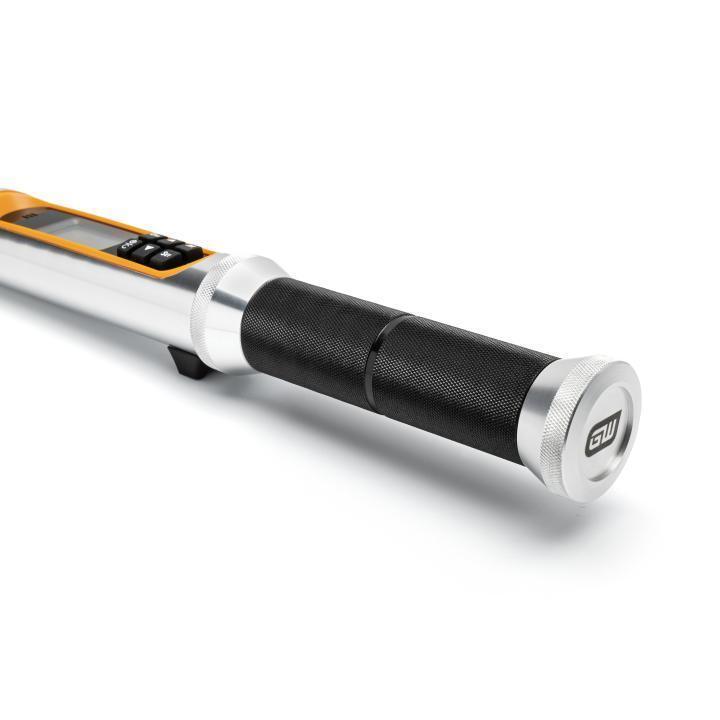

| Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy |
| Meets or exceeds ASME standards and specifications |
| 1 year limited warranty; calibration accuracy warrantied for 90 days |
Specifications
| Attribute | Details |
|---|---|
| Prop 65 | WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Batteries Included | No |
| ASME Specification | B107.10, B107.12, B107.28, B107.300 |
| Minimum Torque (Primary Scale) | 25 ft/lb |
| Tether Ready | No |
| Torque Range (In. Lbs.) | 301 - 3010 in/lb |
| Maximum Torque (Primary Scale) | 250 ft/lb |
| Battery Type | AA |
| Minimum Torque (Alt Scale) | 34 Nm |
| Maximum Torque (Alt Scale) | 340 Nm |
| Torque Range (cm-kg) | 350 - 3500 kg/cm |
| Torque Accuracy (20-100% of Full Range) | +/-2% Clockwise |
| Certified | No |
| Head Thickness | 0.74 in |
| Primary Scale Increments | 0.1 ft/lb |
| Alt Scale Increments | 0.1 Nm |
| Type | Electronic |
| Knurled | Yes |
| Flexible | Yes |
| Overall Length | 24.26 in |
| Size | 5° - 999° Angle |
| Head Width | 1.75 in |
| Family Name | 120XP™ |
| Packaging | Boxed |
| Weight (Catalog) | 2.9 lb |
| Warranty | 90 Days Calibration/1 Year on Parts |
| Drive Tang Size | 1/2 in |
| Head Length | 2.65 in |
| Tooth Count | 120 |
| Finish | Full Polish Chrome |
| Overall Height | 1.75 in |
| UPC | 099575851964 |

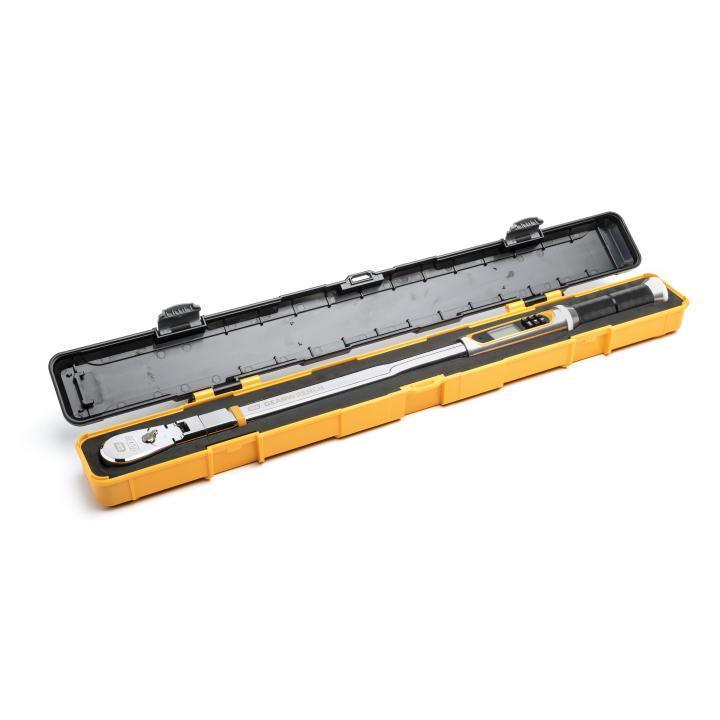

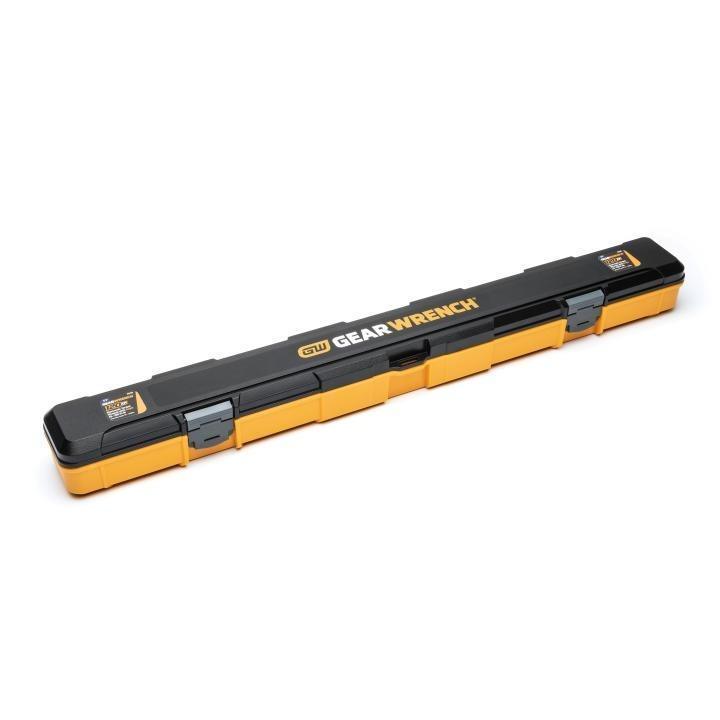

| Included Storage | Injection Molded Case with Removable Lid and Foam Insert |
| Overall Width | 1.75 in |
| Material | Alloy Steel |
The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
Features
| 120XP™ head provides a 3° ratcheting arc to turn fasteners in narrow spaces |
| Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability |
| Angle settings offer +/-1% of reading of angle accuracy |
| Low profile tube, 15° flex teardrop head, and flush mounted on/off switch allow for better access in tight confines |
| Digitally tracks torque and angle measurements. Vibrating handle, buzzer, and LCD screen alert when target torque is reached |
| 3 function modes feature peak torque, angle, and peak angle for additional versatility |
| 5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm |
| 10 available preset torque settings allow you to quickly access frequently repeated applications |
| Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy |
| Meets or exceeds ASME standards and specifications |
| 1 year limited warranty; calibration accuracy warrantied for 90 days |
Specifications
| Attribute | Details |
|---|---|
| Prop 65 | WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Batteries Included | No |
| ASME Specification | B107.10, B107.12, B107.28, B107.300 |
| Minimum Torque (Primary Scale) | 25 ft/lb |
| Tether Ready | No |
| Torque Range (In. Lbs.) | 301 - 3010 in/lb |
| Maximum Torque (Primary Scale) | 250 ft/lb |
| Battery Type | AA |
| Minimum Torque (Alt Scale) | 34 Nm |
| Maximum Torque (Alt Scale) | 340 Nm |
| Torque Range (cm-kg) | 350 - 3500 kg/cm |
| Torque Accuracy (20-100% of Full Range) | +/-2% Clockwise |
| Certified | No |
| Head Thickness | 0.74 in |
| Primary Scale Increments | 0.1 ft/lb |
| Alt Scale Increments | 0.1 Nm |
| Type | Electronic |
| Knurled | Yes |
| Flexible | Yes |
| Overall Length | 24.26 in |
| Size | 5° - 999° Angle |
| Head Width | 1.75 in |
| Family Name | 120XP™ |
| Packaging | Boxed |
| Weight (Catalog) | 2.9 lb |
| Warranty | 90 Days Calibration/1 Year on Parts |
| Drive Tang Size | 1/2 in |
| Head Length | 2.65 in |
| Tooth Count | 120 |
| Finish | Full Polish Chrome |
| Overall Height | 1.75 in |
| UPC | 099575851964 |
| Included Storage | Injection Molded Case with Removable Lid and Foam Insert |
| Overall Width | 1.75 in |
| Material | Alloy Steel |

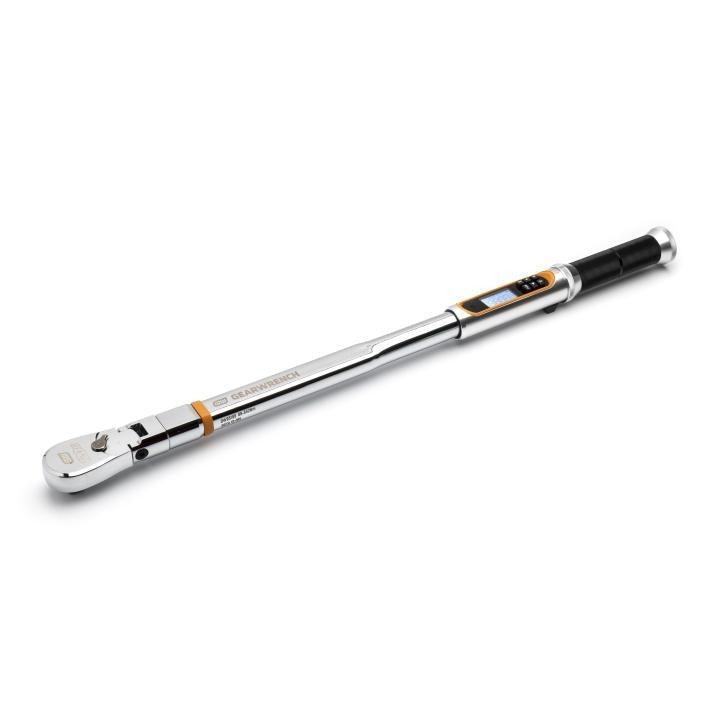

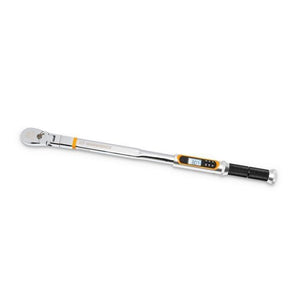

GearWrench 85196 - 1/2" 120XP™ Flex Head Electronic Torque Wrench with Angle
- Regular price
- $339.00
- Sale price
- $339.00
