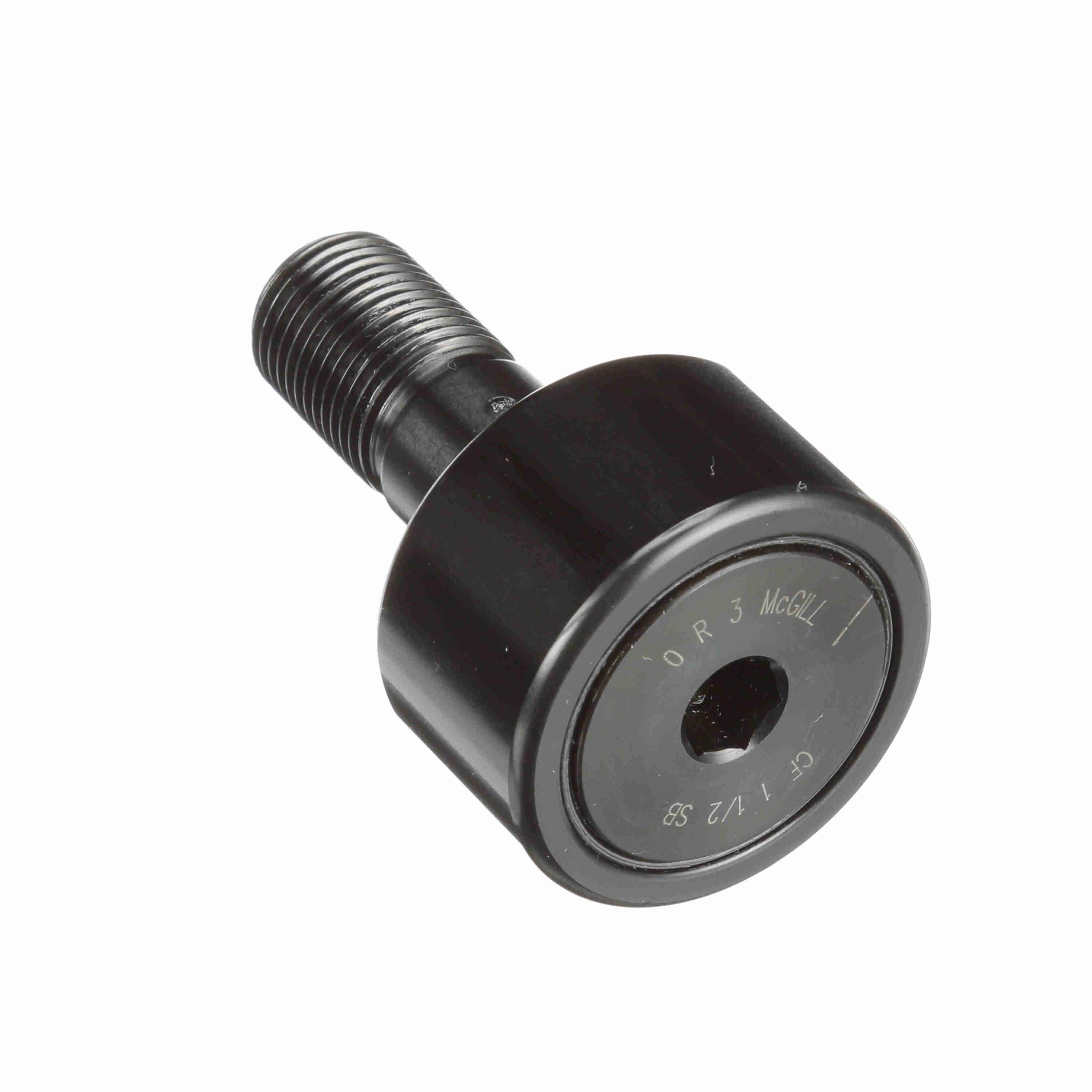

McGill CF 1 1/2 SB CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed

Brand: McGill
$70.10
$70.10
Shipping calculated at checkout.
Call 1 (248) 429-9073 for Availability

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Need Help?
Call us 1 (248) 429-9073
Map showing Oxford, Michigan
Oxford, Michigan
Promotional banner

Need tax exemption or quantity pricing? We offer special rates for businesses and bulk orders.

Contact Us

FREE SHIPPING

All Orders Over $100 Ship Free Ground

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Full policy

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

PRICE MATCH

Simply provide proof of a competitor's advertised price on the same item, and we'll match it.

Full policy

Key Features

  • Stud type cam follower
  • Cylindrical outside diameter
  • Needle rolling elements
  • Hex hole
  • LUBRI-DISC® seal

Description

McGill® bearings are recognized worldwide for their precision, reliability, and performance in demanding industrial applications. With decades of engineering expertise, McGill offers a complete line of cam followers, needle bearings, spherical roller bearings, and other specialty products designed to handle high loads, reduce friction, and extend service life.

Built with premium materials and advanced manufacturing processes, McGill bearings deliver consistent operation even in harsh environments such as oil & gas, food processing, power transmission, and heavy machinery. Their innovative designs provide superior load distribution, misalignment compensation, and resistance to wear, helping reduce downtime and maintenance costs.

Whether for OEM applications or critical replacement needs, McGill bearings are trusted by engineers and maintenance professionals across industries to ensure smooth, efficient, and long-lasting performance.

Specifications

Dimensions

Threads 5/8-18
Roller Diameter (in) 1.5 in
Lubrication Fitting Size (mm) 0.1875 mm
Stud Length (in) 1.5 in
Oil Hole Diameter (in) 0.094 in
Stud Diameter (in) 0.625 in
Hex Socket (in) 0.3125 in
Lubrication Fitting Size (in) 0.1875 in
Roller Width (in) 0.875 in
Oil Hole Center (in) 0.375 in
Minimum Thread Length (in) 0.75 in
Weight (kg) 0.24 kg

Technical Specifications

Dynamic Radial Rating 4,840
Limiting Speed 2,500
Adjustment None
Sealing Sealed
Rolling Element Needle Roller - Full Complement
Hex/Slot Hex Hole
O.D. Configuration Cylindrical
Series Inch CAMROL®
Material Bearing Steel, Black Oxide Finish
Roller Shape Cylindrical
Dynamic Load Rating (lb) 4,840 lb
Stud Type Standard Stud
Static Load Rating 4,000
Platform CAMROL®
Tolerance Class P0 Equivalent
Clamping Torque (in-lbf) 650 lbs
Ability to Relubricate Yes

General Specifications

UPC 726166035471
Weight 0.53 LB
Packaged Length 1.68 IN
Packaged Width 1.68 IN
Packaged Height 2.62 IN
HTC 8482.40.0000
Country of Origin Mexico
