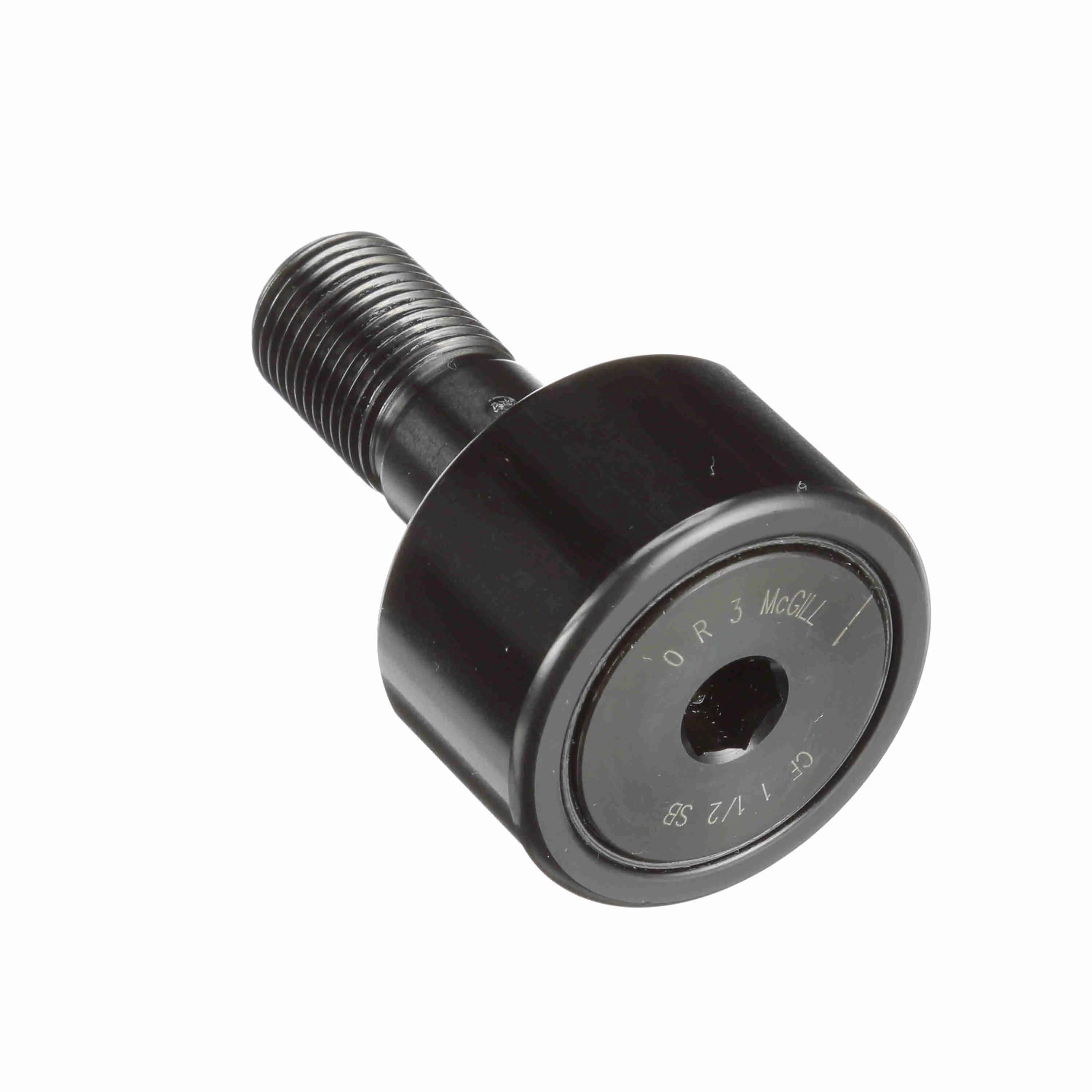

McGill CF 1-1/2 SB CAMROL Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed
- Regular price
- $70.00
- Sale price
- $70.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
Description
McGill CAMROL® cam followers are the industry standard for high-performance track roller bearings. Engineered for durability and precision, CAMROL bearings feature a full complement needle roller design that provides maximum load-carrying capacity and long service life. Available in sealed and unsealed versions, they are built to handle heavy radial loads, reduce friction, and operate reliably in demanding environments.
With a wide range of sizes, stud or yoke configurations, and advanced sealing options, McGill CAMROL cam followers are trusted worldwide in automation, material handling, conveyors, packaging machinery, and other motion systems. Their rugged construction ensures smooth operation, reduced downtime, and lower maintenance costs.
Specifications
| Threads | 5/8-18 |
| Roller Diameter (in) | 1.5 in |
| Lubrication Fitting Size (mm) | 0.1875 mm |
| Stud Length (in) | 1.5 in |
| Oil Hole Diameter (in) | 0.094 in |
| Stud Diameter (in) | 0.625 in |
| Hex Socket (in) | 0.3125 in |
| Lubrication Fitting Size (in) | 0.1875 in |
| Roller Width (in) | 0.875 in |
| Oil Hole Center (in) | 0.375 in |
| Minimum Thread Length (in) | 0.75 in |
| Weight (kg) | 0.24 kg |
| Dynamic Radial Rating | 4,840 |
| Limiting Speed | 2,500 |
| Adjustment | None |
| Sealing | Sealed |
| Rolling Element | Needle Roller - Full Complement |
| Hex/Slot | Hex Hole |
| O.D. Configuration | Cylindrical |
| Series | Inch CAMROL® |
| Material | Bearing Steel, Black Oxide Finish |
| Roller Shape | Cylindrical |
| Dynamic Load Rating (lb) | 4,840 lb |
| Stud Type | Standard Stud |
| Static Load Rating | 4,000 |
| Platform | CAMROL® |
| Tolerance Class | P0 Equivalent |
| Clamping Torque (in-lbf) | 650 lbs |
| Ability to Relubricate | Yes |
