About
Description
| Attribute | Details |
|---|---|
| Head Type | Screwdriver Slot |
| Manufacturer Catalog Number | CF 3/4 S |
| Closure Type | Sealed |
| Thread Size | 3/8-24 |
| Bearing Element | Needle Roller - Full Complement |
| Radial Static Load Capacity | 1500 lbs |
| Roller Shape | Cylindrical |
| Roller Width | 0.5000 in |
| Weight | 0.09 lbs |
| Lubrication Hole Location | Stud Side |
| Finish Coating | Black Oxide Finish |
| Roller Material | Bearing Steel, Black Oxide Finish |
| Roller Diameter | 0.7500 in |
| Stud Type | CF - Standard Stud |
| Series | Inch CAMROL (CF) |
| Stud Diameter | 0.3750 in |
| Maximum RPM | 6400 rpm |
| Stud Length | 0.8750 in |
| CAD Drawing | Click here |
| Radial Dynamic Load Capacity | 1660 lbs |
| Manufacturer UPC Number | 726166031817 |
Description
| Attribute | Details |
|---|---|
| Head Type | Screwdriver Slot |
| Manufacturer Catalog Number | CF 3/4 S |
| Closure Type | Sealed |
| Thread Size | 3/8-24 |
| Bearing Element | Needle Roller - Full Complement |
| Radial Static Load Capacity | 1500 lbs |
| Roller Shape | Cylindrical |
| Roller Width | 0.5000 in |
| Weight | 0.09 lbs |
| Lubrication Hole Location | Stud Side |
| Finish Coating | Black Oxide Finish |
| Roller Material | Bearing Steel, Black Oxide Finish |
| Roller Diameter | 0.7500 in |
| Stud Type | CF - Standard Stud |
| Series | Inch CAMROL (CF) |
| Stud Diameter | 0.3750 in |
| Maximum RPM | 6400 rpm |
| Stud Length | 0.8750 in |
| CAD Drawing | Click here |
| Radial Dynamic Load Capacity | 1660 lbs |
| Manufacturer UPC Number | 726166031817 |
McGill
by
McGill

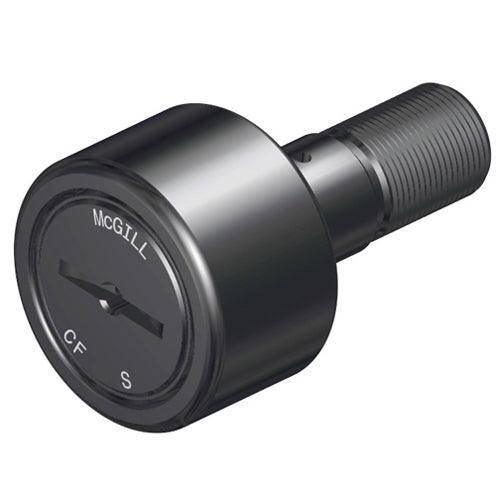

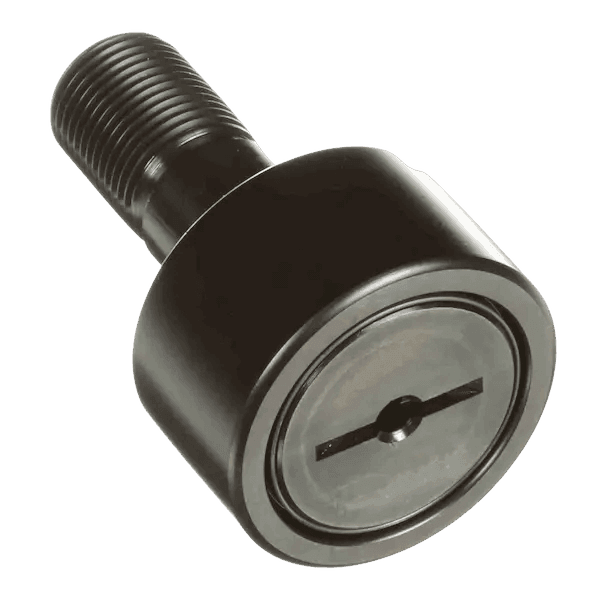

McGill CF 3/4 S Crowned & Flat Cam Followers
- Regular price
- $20.00
- Sale price
- $20.00
- Regular price
-
2 in Stock Now
