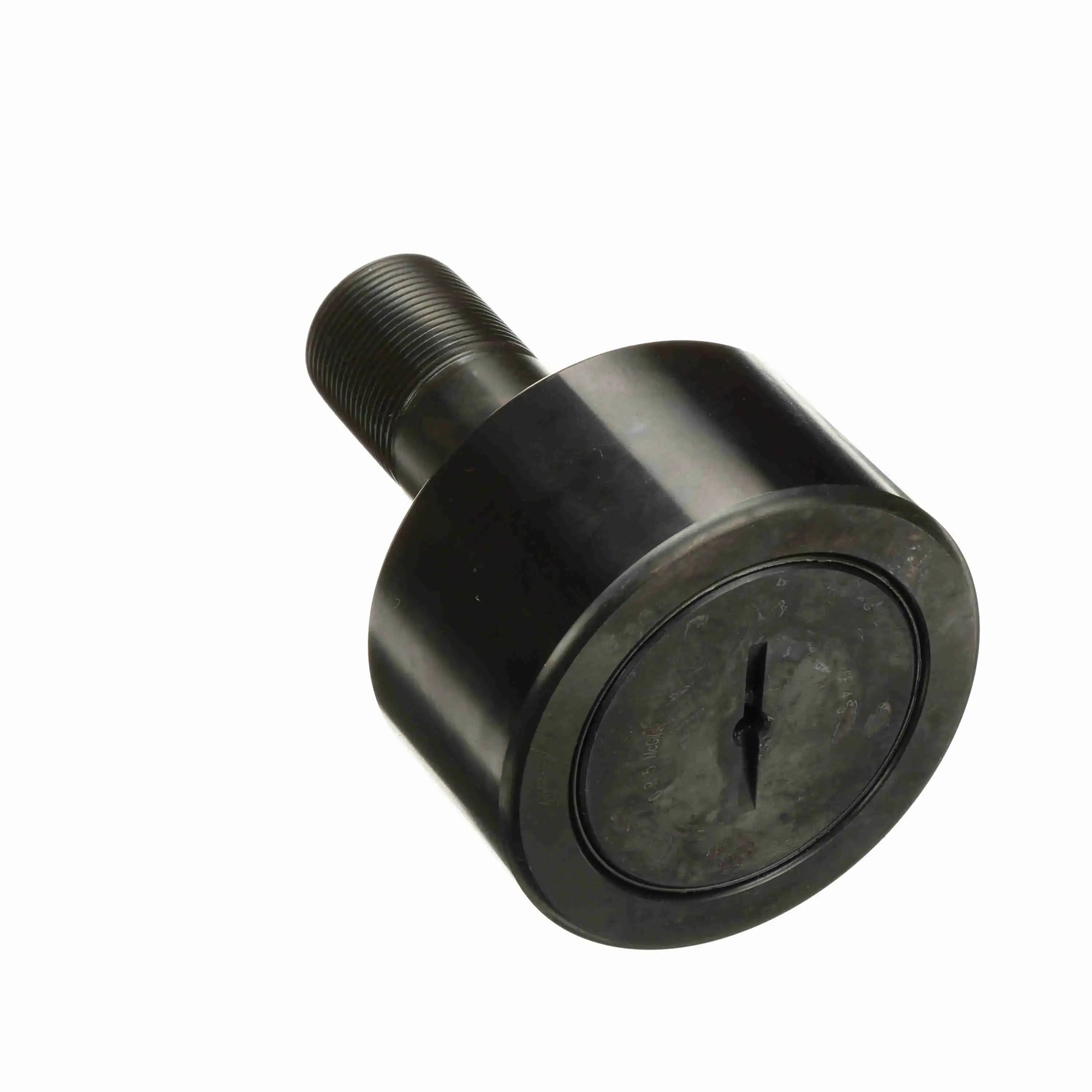

McGill CF 4 S CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed
- Regular price
- $768.00
- Sale price
- $768.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features
- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
Description
McGill® bearings are recognized worldwide for their precision, reliability, and performance in demanding industrial applications. With decades of engineering expertise, McGill offers a complete line of cam followers, needle bearings, spherical roller bearings, and other specialty products designed to handle high loads, reduce friction, and extend service life.
Built with premium materials and advanced manufacturing processes, McGill bearings deliver consistent operation even in harsh environments such as oil & gas, food processing, power transmission, and heavy machinery. Their innovative designs provide superior load distribution, misalignment compensation, and resistance to wear, helping reduce downtime and maintenance costs.
Whether for OEM applications or critical replacement needs, McGill bearings are trusted by engineers and maintenance professionals across industries to ensure smooth, efficient, and long-lasting performance.
Specifications
Dimensions
| Threads | 1 1/2-12 |
| Roller Diameter (in) | 4 in |
| Lubrication Fitting Size (in) | 0.25 in |
| Stud Diameter (in) | 1.5 in |
| Minimum Thread Length (in) | 1.5 in |
| Roller Width (in) | 2.25 in |
| Stud Length (in) | 3.5 in |
| Lubrication Fitting Size (mm) | 0.25 mm |
| Weight (kg) | 4.22 kg |
Technical Specifications
| Dynamic Radial Rating | 22,800 |
| Series | Inch CAMROL® |
| O.D. Configuration | Cylindrical |
| Sealing | Sealed |
| Rolling Element | Needle Roller - Full Complement |
| Limiting Speed | 700 |
| Hex/Slot | Screwdriver Slot |
| Adjustment | None |
| Material | Bearing Steel, Black Oxide Finish |
| Static Load Rating | 25,000 |
| Roller Shape | Cylindrical |
| Stud Type | Standard Stud |
| Platform | CAMROL® |
| Tolerance Class | P0 Equivalent |
| Dynamic Load Rating (lb) | 29,985 lb |
| Ability to Relubricate | Yes |
| Clamping Torque (in-lbf) | 5,000 lbs |
General Specifications
| UPC | 726166040192 |
| Weight | 9.31 LB |
| Packaged Length | 4.00 IN |
| Packaged Width | 4.00 IN |
| Packaged Height | 6.00 IN |
| HTC | 8482.40.0000 |
| Country of Origin | Mexico |
