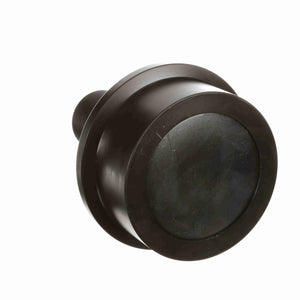

McGill FCF 6 TRAKROL® Flanged Track Roller - Stud Mount - Hex Hole - Sealed
- Regular price
- $900.00
- Sale price
- $900.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Stud type cam follower
- Flanged outside diameter
- Tapered bearing insert
- Hex hole on thread face
Description
McGill® bearings are recognized worldwide for their precision, reliability, and performance in demanding industrial applications. With decades of engineering expertise, McGill offers a complete line of cam followers, needle bearings, spherical roller bearings, and other specialty products designed to handle high loads, reduce friction, and extend service life.
Built with premium materials and advanced manufacturing processes, McGill bearings deliver consistent operation even in harsh environments such as oil & gas, food processing, power transmission, and heavy machinery. Their innovative designs provide superior load distribution, misalignment compensation, and resistance to wear, helping reduce downtime and maintenance costs.
Whether for OEM applications or critical replacement needs, McGill bearings are trusted by engineers and maintenance professionals across industries to ensure smooth, efficient, and long-lasting performance.
Specifications
Dimensions
| Threads | 2 1/2-12 |
| Roller Diameter (in) | 6 in |
| Hex Socket (in) | 0.875 in |
| Stud Length (in) | 5.5 in |
| Roller Width (in) | 3 in |
| Stud Diameter (in) | 2 in |
| Weight (kg) | 13.2 kg |
Technical Specifications
| Rolling Element | Tapered Roller (TRAKROL) |
| Hex/Slot | Hex Hole |
| Adjustment | None |
| Sealing | Sealed |
| Series | TRAKROL® |
| O.D. Configuration | Flanged |
| Dynamic Radial Rating | 35,800 |
| Limiting Speed | 475 |
| Material | Bearing Steel, Black Oxide Finish |
| Platform | TRAKROL® |
| Roller Shape | Flanged |
| Tolerance Class | P0 Equivalent |
| Static Load Rating | 62,000 |
| Dynamic Load Rating (lb) | 35,800 lb |
| Stud Type | Standard Stud |
| Dynamic Load Rating - single bearing | 18,610 |
| Ability to Relubricate | No |
| Clamping Torque (in-lbf) | 2,500 lbs |
General Specifications
| UPC | 726166042363 |
| Weight | 29.10 LB |
| Packaged Length | 7.19 IN |
| Packaged Width | 7.19 IN |
| Packaged Height | 12.38 IN |
