About
Description
| TYPE | Flange | Motion | Linear Motion |
|---|---|---|---|
| Style | Standard | Outer Cylinder Material | 440C Stainless Steel Equivalent |
| Outer Cylinder Surface Finish | None | For Shaft Diameter(mm) | 13 |
| Overall Length L(mm) | 61 | Flange Type | Center Flanged |
| Lubrication Type | Standard | O.D. D(mm) | 23 |
| Ball Recirculating Type | Double | Basic Dynamic Load Rating (Details)(N) | 813 |
| Basic Static Load Rating(N) | 1570 | Precision | High Grade |
| Inner Contact Circle Tolerance (Negative Side)(mm) | -0.01 | Eccentricity(µm) | 15 |
| Flange Shape | Square Flanged | Ball Material | 440C Stainless Steel Equivalent |
| Retainer Material | Plastic (Duracon M90 Equivalent) | Seals | With Seal |
| Counterbored Hole | Standard | Greased filled | Standard (Rust Prevent Oil) |
Description
| TYPE | Flange | Motion | Linear Motion |
|---|---|---|---|
| Style | Standard | Outer Cylinder Material | 440C Stainless Steel Equivalent |
| Outer Cylinder Surface Finish | None | For Shaft Diameter(mm) | 13 |
| Overall Length L(mm) | 61 | Flange Type | Center Flanged |
| Lubrication Type | Standard | O.D. D(mm) | 23 |
| Ball Recirculating Type | Double | Basic Dynamic Load Rating (Details)(N) | 813 |
| Basic Static Load Rating(N) | 1570 | Precision | High Grade |
| Inner Contact Circle Tolerance (Negative Side)(mm) | -0.01 | Eccentricity(µm) | 15 |
| Flange Shape | Square Flanged | Ball Material | 440C Stainless Steel Equivalent |
| Retainer Material | Plastic (Duracon M90 Equivalent) | Seals | With Seal |
| Counterbored Hole | Standard | Greased filled | Standard (Rust Prevent Oil) |
MISUMI
by
MISUMI

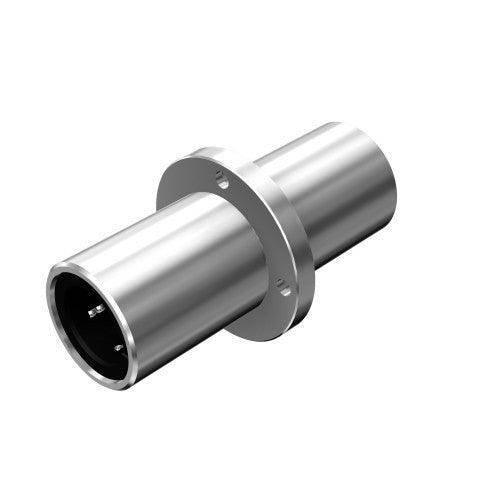

MISUMI SLHMSW13 Center Flanged Linear Bushing
- Regular price
- $50.00
- Sale price
- $50.00
- Regular price
-
1 in Stock Now
