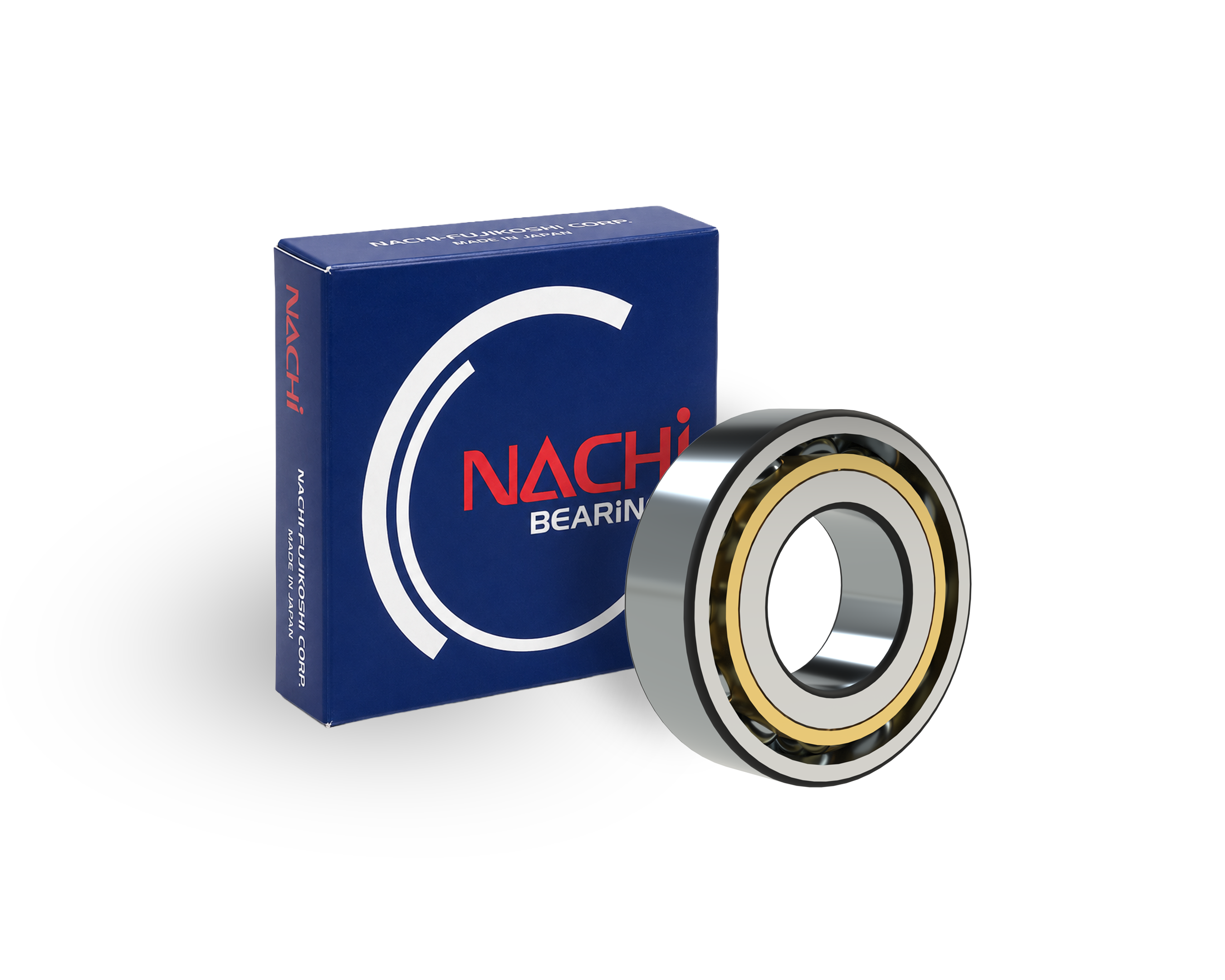

Nachi 6238 MY Deep Groove Ball Bearing - 190 mm ID, 340 mm OD, 55 mm Width
- Regular price
- $4,503.34
- Sale price
- $4,503.34
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features
- Machined brass cage for demanding duty
- Better tolerance of heat, shock and marginal lubrication
- Normal CN radial internal clearance
- Open design for oil or grease lubrication
- Well suited to large, heavily loaded shafts
- Operating range -20 to +120 degrees C
Description
Deep Groove Ball Bearing, open design with machined brass cage
The Nachi 6238 MY is a very large open deep groove ball bearing with a 190 mm bore, 340 mm outside diameter and 55 mm width, built around a machined brass cage. Brass is specified in the larger sizes because it stands up to high temperature, poor lubrication and shock better than a pressed steel cage, and it damps the ball set more effectively at speed. Normal CN clearance, open on both sides for oil or grease, rated -20 to +120 degrees C.
Specifications
Dimensions
| Bore Diameter | 190 mm |
| Outside Diameter | 340 mm |
| Width | 55 mm |
Properties
| Ball rows | Single row bearing |
| Bore | Cylindrical bore |
| Cage | Brass cage |
| Clearance | Normal radial clearance |
| Current insulation | No current insulation |
| Material | Standard bearing steel |
| Material of rolling elements | Standard bearing steel |
| Outer ring | Without flange/groove |
| Seal | None, open bearing |
| Temperature range | -20 to +120 °C |
Logistics
| Product Net Weight | 19.2 |
