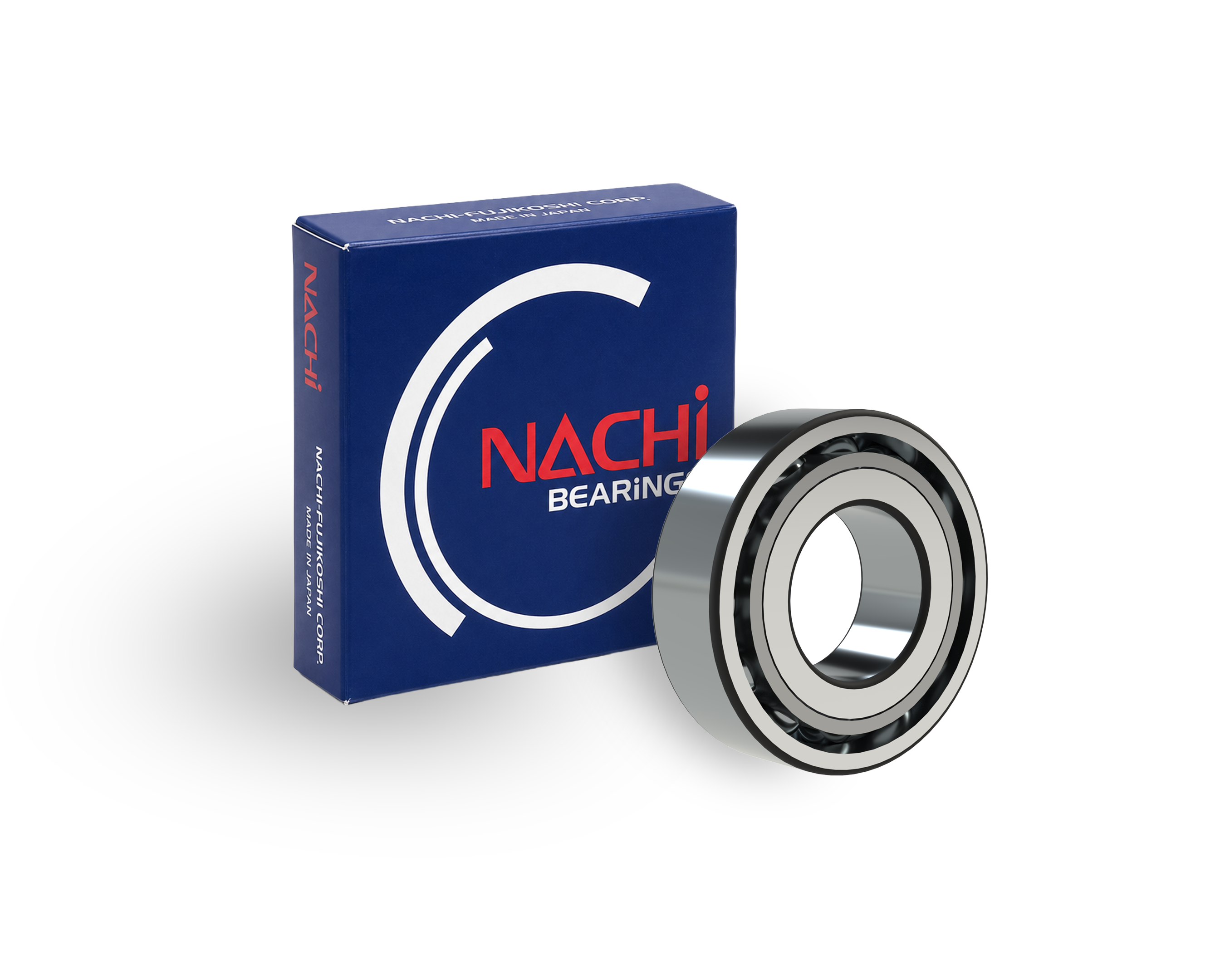

Nachi 7314 B Angular Contact Ball Bearing - 70 mm ID, 150 mm OD, 35 mm Width
- d 70 mm
- D 150 mm
- B 35 mm
- C0 - Normal
Genuine Nachi product, Nachi
- Regular price
- $223.01
- Sale price
- $223.01
- Regular price
-
Same-day shipping
Order by 3 PM ET for same-day shipping
Free shipping on orders over $100
Use code at checkout.
Nachi 7314 B
$223.01
Why Apollo USA
Bearings from Apollo Industries, Oxford, Michigan
Apollo Industries supplies bearings, seals and maintenance tools to businesses across the US, with real people on the phone when you need a part matched.
-
Same-day shipping
Order by 3 PM EST for same-day shipping.
-
Free shipping over $100
All orders over $100 ship free by ground with code FREESHIP.
-
90-day returns
Hassle-free returns on unused items within 90 days.
-
Price match
Show us a competitor's advertised price on the same item and we will match it.
-
Expert support
Support staff available by phone, web chat or email.
-
Need tax exemption or quantity pricing?
We offer special rates for businesses and bulk orders.
Talk to a bearing specialist
2695 Lake George RdOxford, MI 48370
Overview
Nachi 7314 B Angular contact ball bearing
Angular Contact Ball Bearing, single row 40 degree contact angle
The Nachi 7314 B is a single-row angular contact ball bearing measuring 70 mm bore by 150 mm outside diameter by 35 mm width, with a 40 degree contact angle. The steep angle gives it the highest axial capacity of the standard angular contact series, at the cost of a lower speed limit than the shallower designs. A single-row bearing takes thrust in one direction only, so it is mounted against a second bearing back to back, face to face or in tandem depending on whether the priority is moment stiffness, tolerance of misalignment or sheer thrust capacity. Sheet steel cage, normal CN clearance, rated -20 to +150 degrees C.
Key features
- 40 degree contact angle for maximum thrust capacity
- Takes combined radial and one-way axial load
- Mounts back to back, face to face or in tandem
- Sheet steel cage, normal CN clearance
- Open design for oil or grease lubrication
- Operating range -20 to +150 degrees C
Specifications
Nachi 7314 B dimensions & specifications
- Bearing type
- Angular contact ball bearing
- Bore diameter d
- 70 mm (2.756 in)
- Outside diameter D
- 150 mm (5.906 in)
- Width B
- 35 mm (1.378 in)
- Internal clearance
- C0 - Normal
- Weight
- 5.82 lb
- Brand
- Nachi
- Part number
- 7314 B also written 7314B
- UPC / EAN
- 4991893850604
All specifications
Dimensions
| Bore Diameter | 70 mm |
| Outside Diameter | 150 mm |
| Width | 35 mm |
Properties
| Arrangement | Standard version |
| Ball rows | Single row bearing |
| Cage | Sheet steel cage |
| Clearance | Normal radial clearance |
| Contact angle | 40 degree |
| Material | Standard bearing steel |
| Outer ring | Without flange/groove |
| Seal | None, open bearing |
| Temperature range | -20 to +150 °C |
| Tolerance class | Tolerance class P0/PN2 / ABEC 1 |
Logistics
| Product Net Weight | 2.64 |
Tools & lubrication
Complete the job for your 7314 B
Mount it without damage and keep it lubricated. Tick what you need and add it with one click.
Part number decoded
What every part of 7314 B means
- 73
- 73xx angular contact ball, medium (dimension series 03)
- 14
- Bore code 14 × 5 = 70 mm (ISO convention)
- B
- 40° contact angle
Catalogs & documents
Nachi 7314 B catalogs & documents
Official catalogs and data from the manufacturer. They open as PDFs in a new tab.
-
Catalog
Nachi Ball & Roller Bearings (B2100E-4) (opens in a new tab)
PDF · English
-
Catalog
Nachi Deep-groove Ball Bearings, QUEST (B3402E-2) (opens in a new tab)
PDF · English
-
Catalog
Nachi Spherical Roller Bearings (B1032E-5) (opens in a new tab)
PDF · English
-
Catalog
Nachi Radial Ball Bearings (B4031E-2) (opens in a new tab)
PDF · English
About the brand
About Nachi
Nachi-Fujikoshi, founded in Toyama, Japan, in 1928.
Nachi-Fujikoshi was founded on 21 December 1928 in Toyama City, Japan, as Fujikoshi Steel Industry. It makes bearings alongside cutting tools, hydraulics, robots and specialty steel. Its North American headquarters is in Greenwood, Indiana.
Genuine Nachi product
Founded
1928
Headquarters
Toyama, Japan
Known for
- Deep groove ball bearings (QUEST)
- Spherical roller bearings
- Precision bearings
- Ball screw support bearings
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of Nachi. All Nachi trademarks and product names are the property of their respective owners. We sell genuine Nachi products purchased through independent channels.
FAQ
7314 B questions & answers
What are the dimensions of the Nachi 7314 B?
The Nachi 7314 B has a 70 mm bore (d), a 150 mm outside diameter (D) and a 35 mm width (B). In inches: 2.756 × 5.906 × 1.378 in.
What type of bearing is the 7314 B?
The Nachi 7314 B is an angular contact ball bearing.
What internal clearance does the 7314 B have?
The Nachi 7314 B has C0 - Normal internal clearance.
Is this a genuine Nachi bearing?
Yes. Apollo Industries sells genuine Nachi products, purchased through independent channels. Apollo is not an authorized distributor, reseller, or representative of Nachi.
Do you ship the 7314 B the same day?
In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.
Can I get quantity pricing or buy tax-exempt?
Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.
