Key Features
- Pre-Filled with LGWA 2 Grease: A premium high-temperature and extreme-pressure grease designed for demanding applications.
- Adjustable Discharge Rate: Allows precise control over lubrication delivery, supporting various operational requirements.
- Single-Point Lubrication: Provides consistent and reliable lubrication to a specific point, ensuring optimal performance.
- Maintenance-Free Operation: Eliminates the need for manual lubrication, reducing labor costs and potential errors.
- Compact and Easy to Install: Suitable for tight spaces, ensuring compatibility with a wide range of machinery.
- Wide Temperature Range: Performs effectively in temperatures ranging from -30°C to +120°C (-22°F to +248°F).
Description

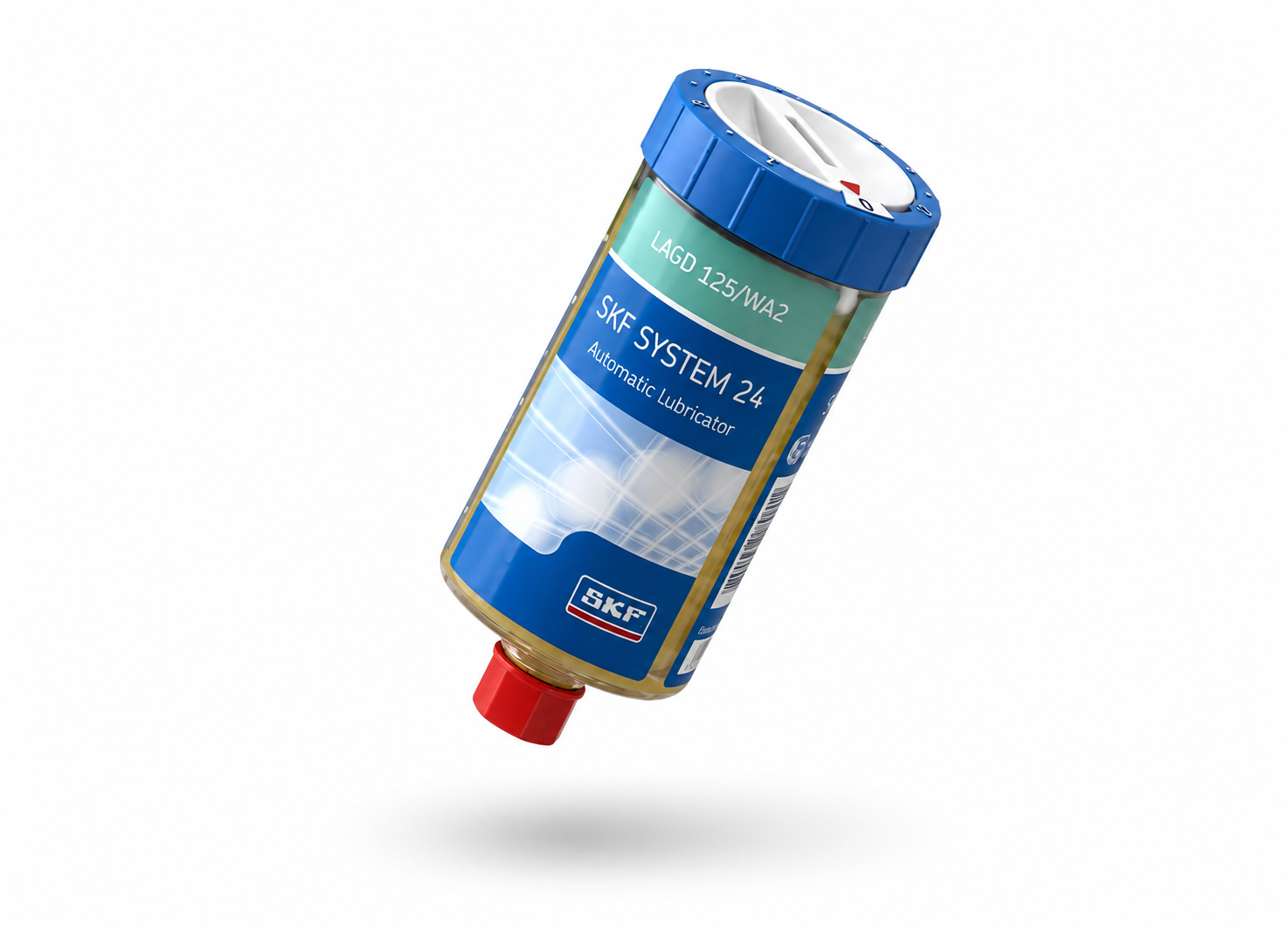

SKF LAGD 125/WA2 Automatic Lubricator – Reliable Grease Lubrication for Bearings

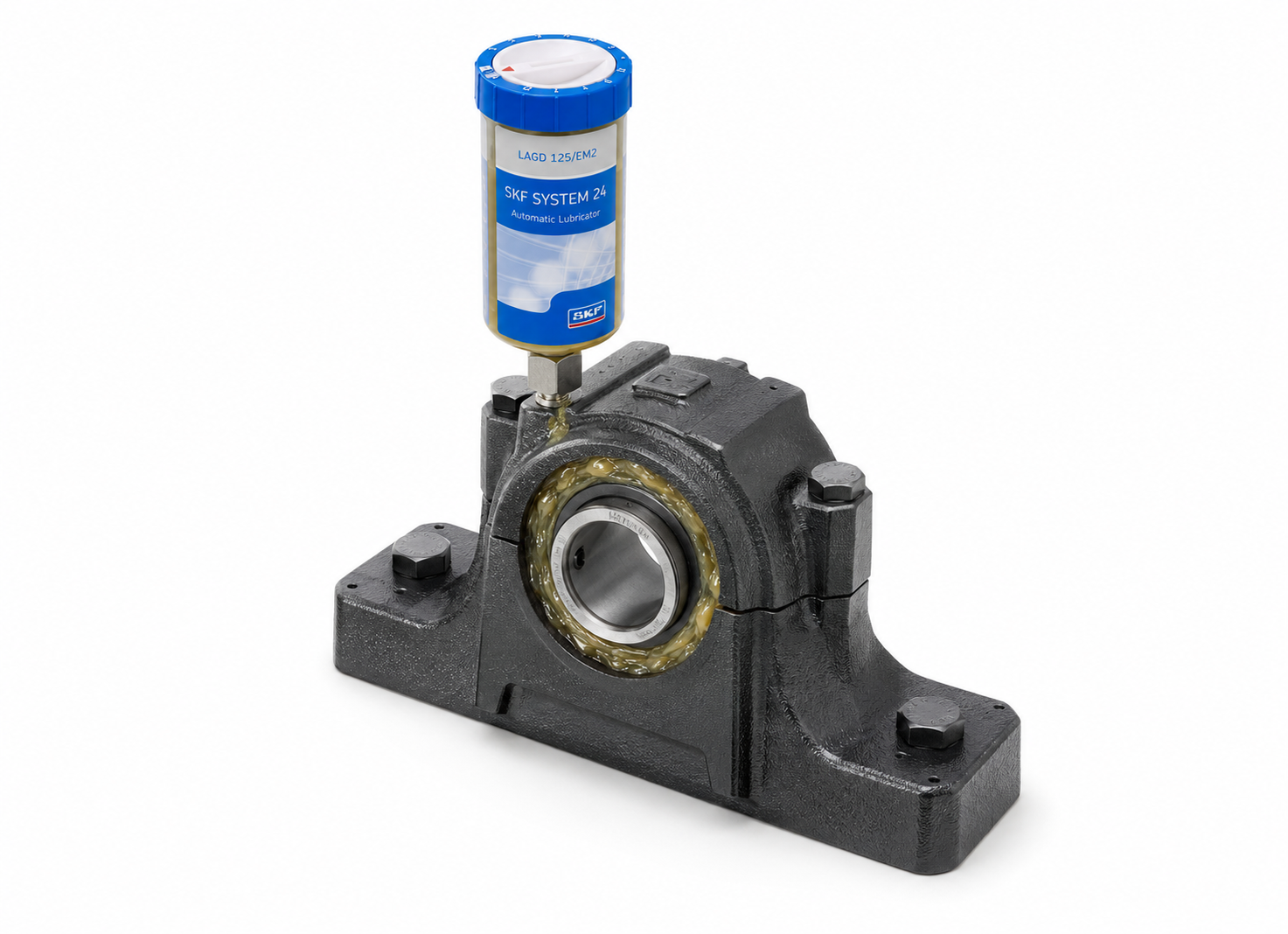

The SKF LAGD 125/WA2 is a pre-filled automatic lubricator designed to provide precise and reliable lubrication for bearings and other machine components. This single-point lubricator is pre-filled with SKF LGWA 2 grease, a high-performance lubricant ideal for a wide range of industrial applications. With its easy-to-install design and consistent grease delivery, the LAGD 125/WA2 enhances machine performance and minimizes downtime.
Specifications
Technical Specifications
| Designation | LAGD 125/WA2 |
| Maximum pressure | 5 bar |
| Ambient temperature range | -20 – 60 °C |
| Connecting thread | R 1/4 |
| Degree of protection (IP) | IP 68 |
| Drive mechanism | Gas cell producing inert gas |
| Intrinsically safe approval | II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma |
| Lubricant | LGWA 2 |
| Lubricant description | Wide temperature range, extreme pressure, high load bearing grease |
| Lubricant operating temperature range | –30 to +140 °C |
| Lubricant quantity | 125 ml |
| Maximum feed line length | 0.3 m |

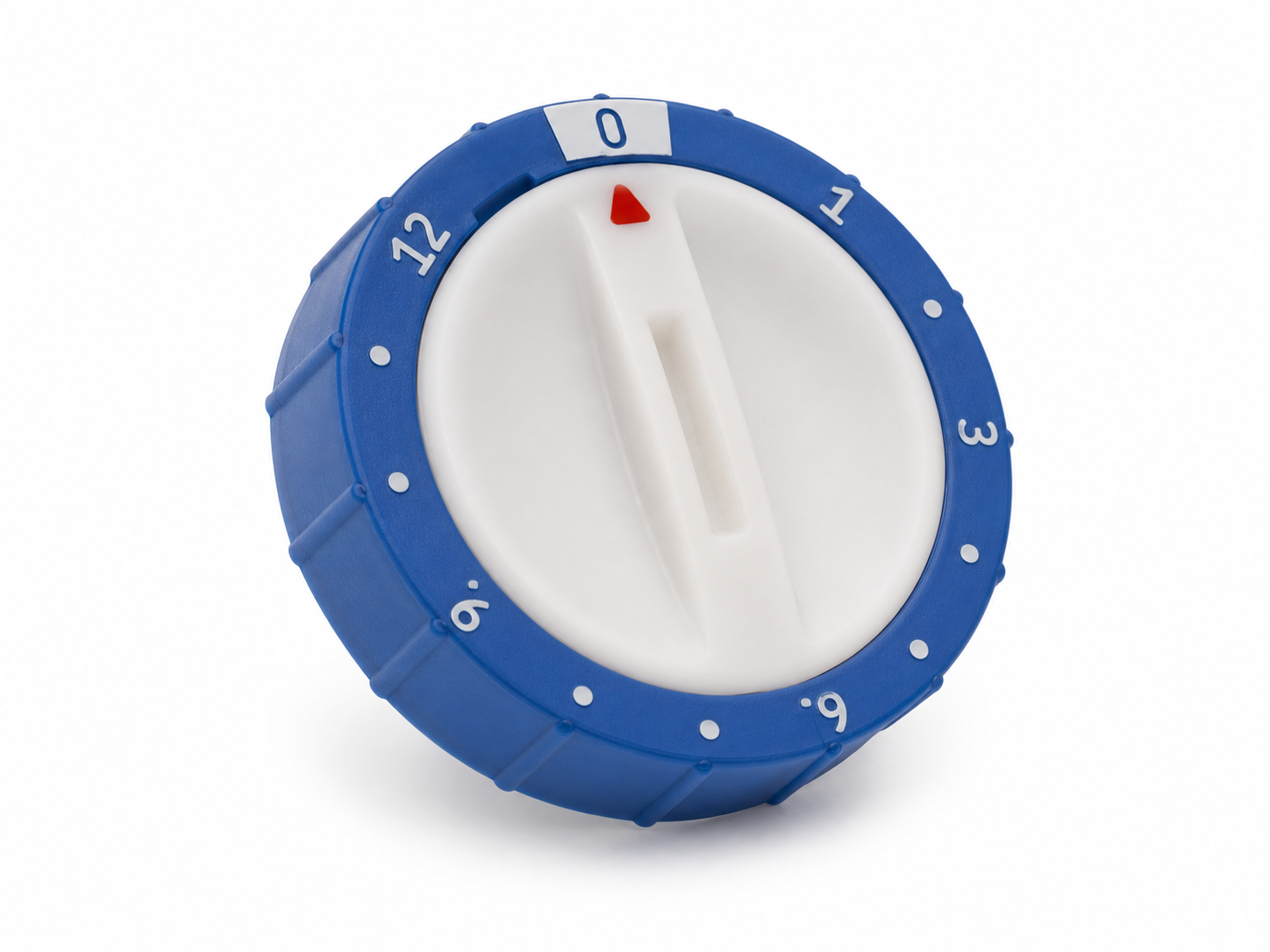

| Nominal emptying time | Adjustable, 1–12 months |
| Power source | Gas cell |
| Recommended applications | Fans and electric motors Conveyor head and tail pulley bearings |
| Recommended storage temperature | 20 °C |
| Shelf life | 2 years |
| Product net weight | 0.197 kg |
| UNSPSC code | 15121902 |
| eClass code | 23-06-10-14 |
