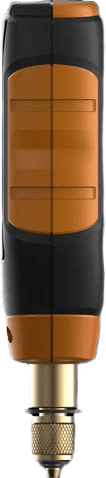

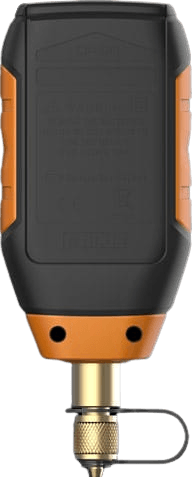

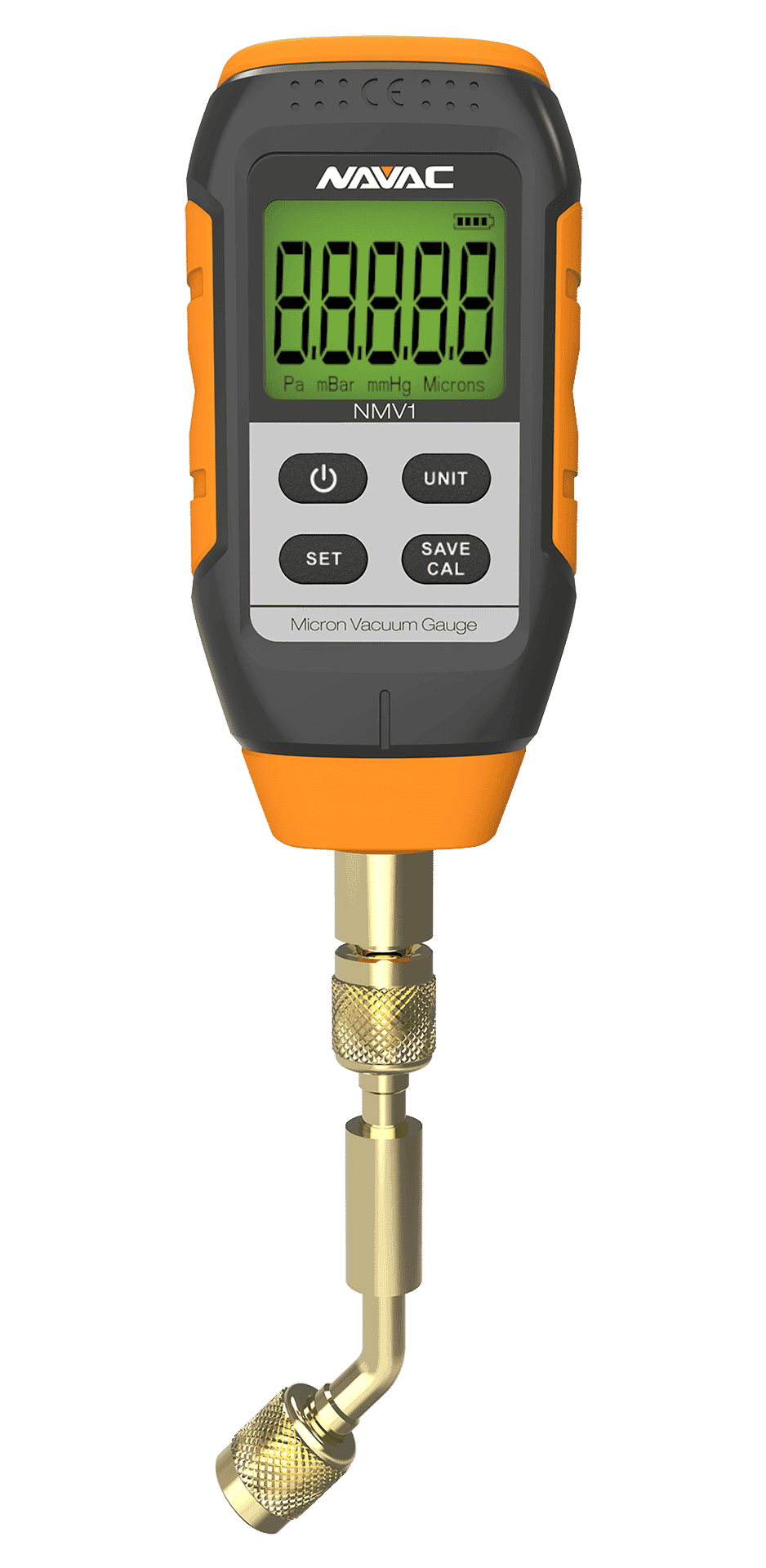

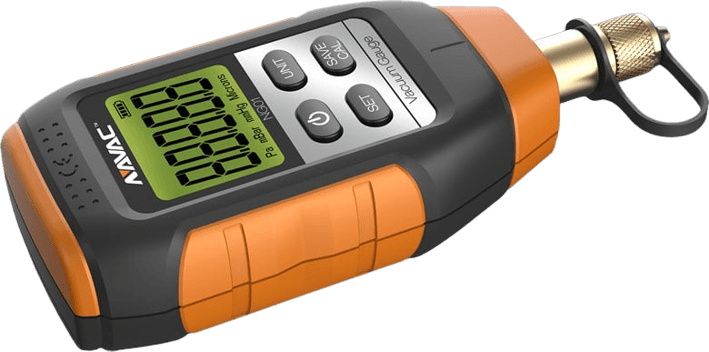

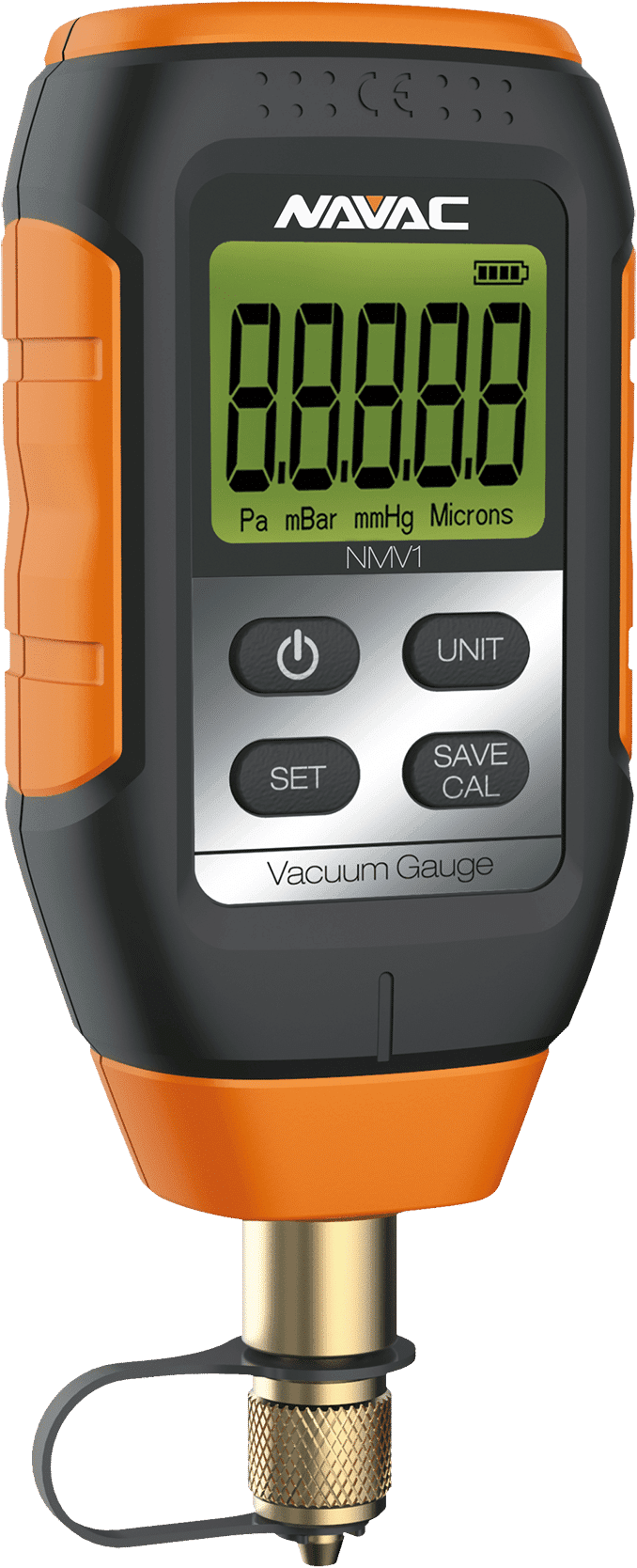

NAVAC NMV1 - Micron Vacuum Gauge
- Regular price
- $193.00
- Sale price
- $193.00
- Regular price
-
$271.00
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
NAVAC offers innovative HVAC tools and equipment designed for efficiency, durability, and ease of use. From vacuum pumps and recovery machines to tubing tools and gauges, NAVAC delivers professional-grade solutions that help technicians work faster and more effectively.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Description
Precise Measurement when it counts
It uses the Pirani high-precision vacuum sensor to precisely measure vacuum levels. Digital display affords a comprehensive view of vacuum conditions. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level decreases from the preset vacuum level, it will buzz rapidly and flash the backlit to warn of leaks.
NMV1 Model Specifications
| Specification | Details |
|---|---|
| Model | NMV1 |
| Maximum Overload Pressure | 14 psi |
| Range | 0~10000 Pa, 0~100 mBar, 0~75 mmHg, 0~75000 microns |
| Resolution | 0.01 (10Pa), 0.0001 (10mBar), 0.0001 (10mmHg), 1 (30000 microns) |
| Accuracy | 15-750 micron: ±5% of reading (at 68℉) |
| Operating Temperature | 32~122℉ (0~50℃) |
| Unit | Pa, mBar, mmHg, Microns |
| Sensor | Pirani sensor |
| Buzzer Alarm | 90 dB, shut down after 10 seconds |
| Weight | 4.5 oz |
| Warranty | 1 Year |
