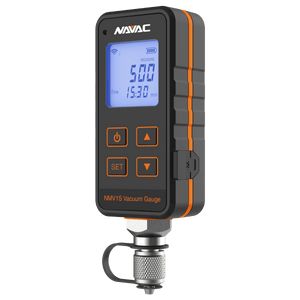

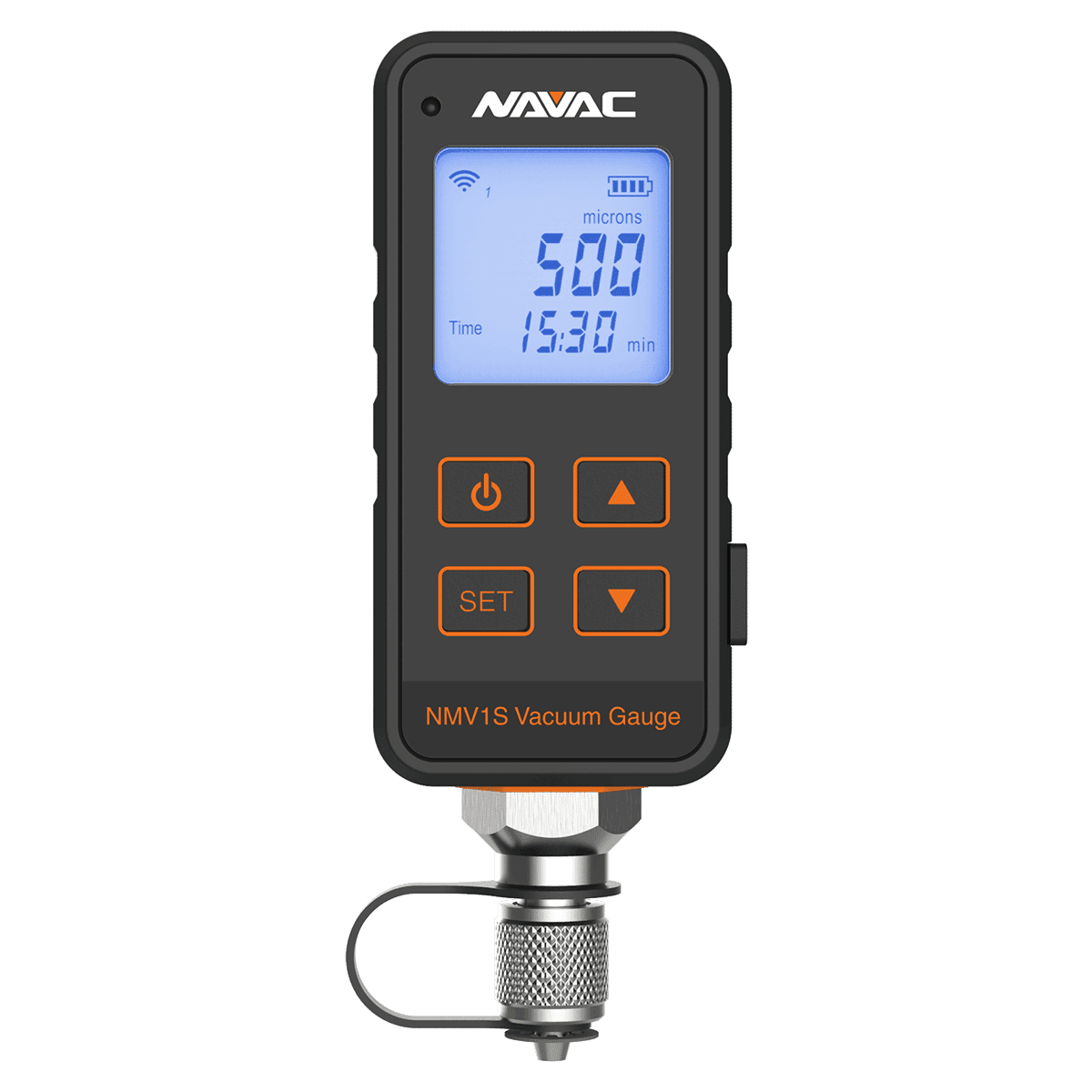

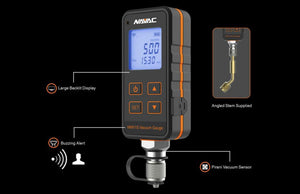

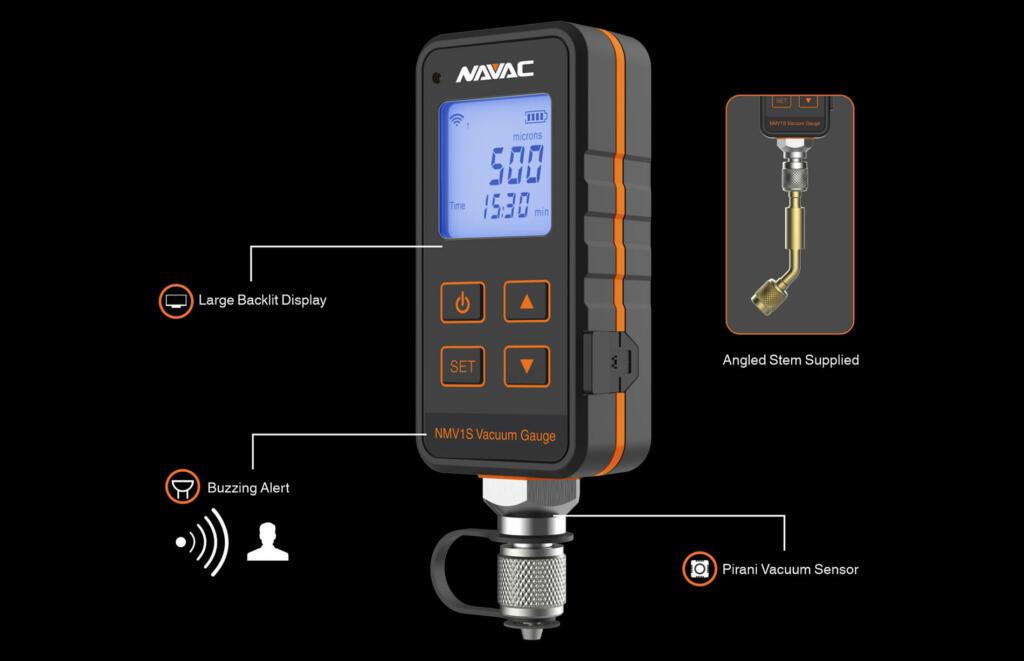

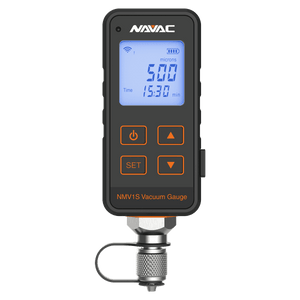

This micron gauge uses Pirani high-precision vacuum sensor to accurately measure vacuum levels. Digital display provides a comprehensive view of vacuum conditions. It features a rechargeable battery and compact design. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level increases from the decay target, it will buzz rapidly and flash backlight to warn of leaks.

NMV1S Model Specifications

Specification	Details
Model	NMV1S
Maximum Overload Pressure	500 psi
Range	0~25000 microns, 0~3300 Pa, 0~33.3 mBar, 0~25 mmHg
Resolution	0.01 micron (<10 microns), 0.01 Pa (<10 Pa), 0.001 mBar, 0.001 mmHg
Accuracy	15-1000 microns: ±5% of reading (at 68°F)
Operating Temperature	32~122°F (0~50°C)
Unit	Pa, mBar, mmHg, Microns
Sensor	Pirani Sensor
Battery	2000 mAh Li-ion
Weight	6.2 oz

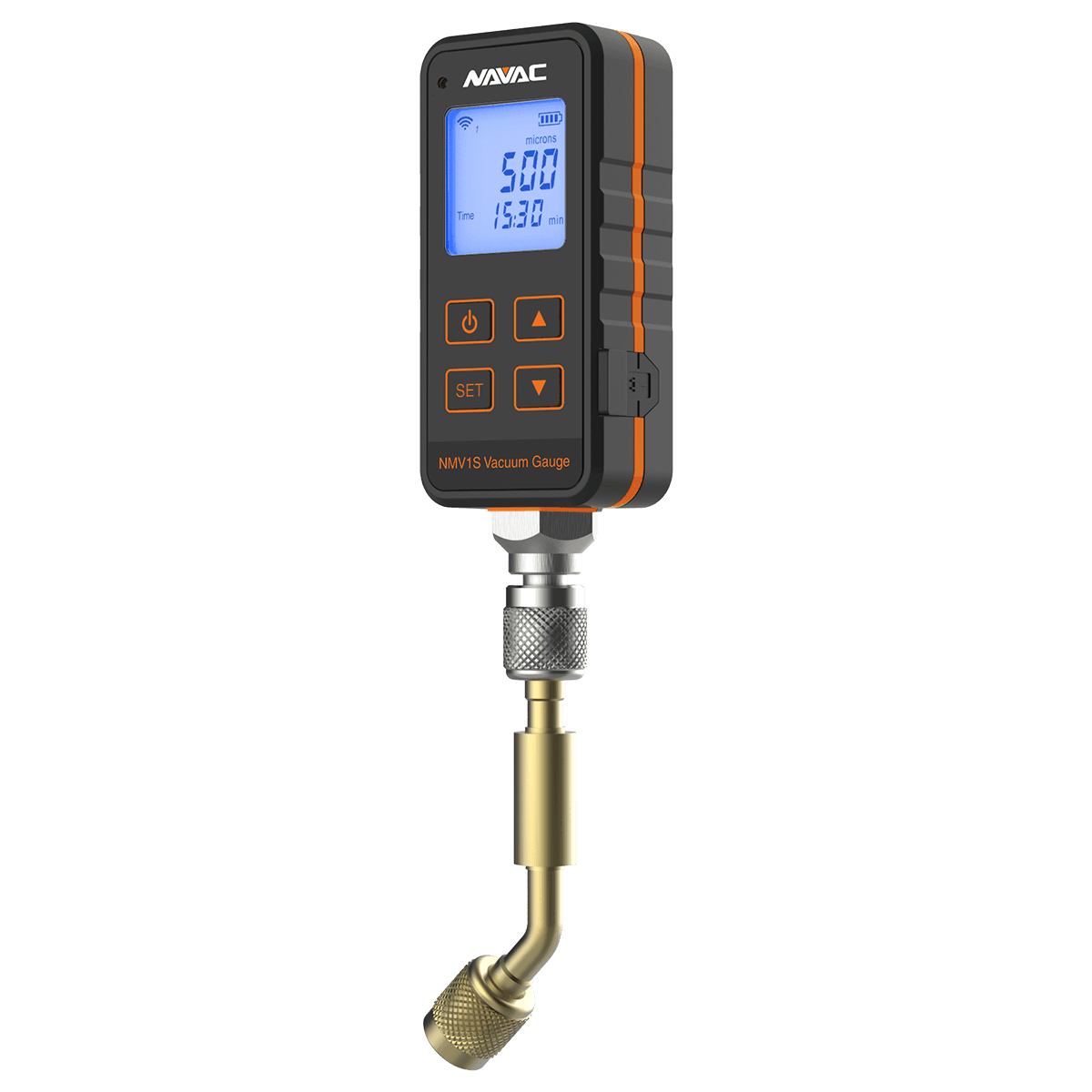

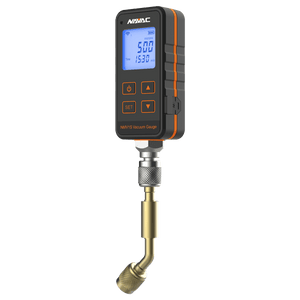

Accessory	Angled Stem, Storage Bag
Warranty	1 Year
