Description
| Bore Diameter | 0.2500 in |
|---|---|
| Outside Diameter | 0.6250 in |
| Overall Width | 0.1960 in |
| Bore Type | Round |
| Closure Type | Double Shielded |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | MC3 |
| Operating Temperature Range | -10 to +110 °C |
| Dynamic Load Capacity | 1610 N |
| Static Load Capacity | 149 lb, 660 N |
| Precision Rating | ABEC 1 (ISO Class Normal) |
| Finish/Coating | Uncoated |
| Cage Material | Steel |
| Outer Ring Width | 4.978 mm |
| Fillet Radius | 0.3 mm |
| Maximum RPM | 45000 RPM |
| Series | R |
Description
| Bore Diameter | 0.2500 in |
|---|---|
| Outside Diameter | 0.6250 in |
| Overall Width | 0.1960 in |
| Bore Type | Round |
| Closure Type | Double Shielded |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | MC3 |
| Operating Temperature Range | -10 to +110 °C |
| Dynamic Load Capacity | 1610 N |
| Static Load Capacity | 149 lb, 660 N |
| Precision Rating | ABEC 1 (ISO Class Normal) |
| Finish/Coating | Uncoated |
| Cage Material | Steel |
| Outer Ring Width | 4.978 mm |
| Fillet Radius | 0.3 mm |
| Maximum RPM | 45000 RPM |
| Series | R |
NSK
by
NSK

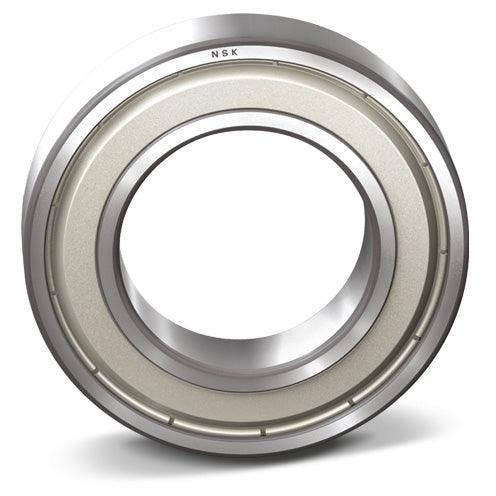

NSK R4BZZ Radial/Deep Groove Ball Bearing
- Regular price
- $20.00
- Sale price
- $20.00
- Regular price
-
Out of stock
Orders placed before 3:00pm (Est) ship same day
