About
Description
| Bore Type | Round |
|---|---|
| Duty Type | Light Duty |
| Mounting Type | 4-Bolt Flange |
| Bore Diameter | 25 mm |
| Bolt Center-to-Center Length | 2.7500 in |
| Housing Material | Cast Iron |
| Locking Device | Set Screw |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Overall Length/Diameter | 3.7500 in |
| Radial Dynamic Load Capacity | 3150 lb |
| Radial Static Load Capacity | 1770 lb |
| Seal Type | Contact with Flinger |
| Length Through Bore | 1-13/32 in |
| Finish/Coating | Uncoated |
| Lubrication Type | Relubricatable |
| Series | UCF2 |
| Standards Met | ISO, AFBMA |
| Replacement Bearing | UC205D1 |
| Weight | 1.60 lbs |
Description
| Bore Type | Round |
|---|---|
| Duty Type | Light Duty |
| Mounting Type | 4-Bolt Flange |
| Bore Diameter | 25 mm |
| Bolt Center-to-Center Length | 2.7500 in |
| Housing Material | Cast Iron |
| Locking Device | Set Screw |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Overall Length/Diameter | 3.7500 in |
| Radial Dynamic Load Capacity | 3150 lb |
| Radial Static Load Capacity | 1770 lb |
| Seal Type | Contact with Flinger |
| Length Through Bore | 1-13/32 in |
| Finish/Coating | Uncoated |
| Lubrication Type | Relubricatable |
| Series | UCF2 |
| Standards Met | ISO, AFBMA |
| Replacement Bearing | UC205D1 |
| Weight | 1.60 lbs |
NTN
by
NTN

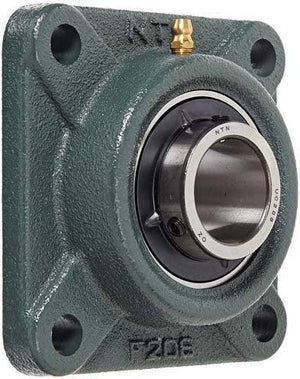

NTN UCF205D1 Flange-Mount Ball Bearing Unit
- Regular price
- $50.00
- Sale price
- $50.00
- Regular price
-
Out of stock
Orders placed before 3:00pm (Est) ship same day
