About

Description
MOUNTING HOLE SIZE N/A
BEARING LINER MATERIAL Frelon
CORROSION RESISTANT Yes
O.D. 2 in
PRELOAD Yes
DISTANCE BETWEEN O-RINGS 5/8 in
SELF ALIGNING No
EFFECTIVE SURFACE AREA 3.43 in2
DISTANCE BETWEEN RETAINING RINGS 1.875 in
RETAINING RING GROOVE WIDTH 0.07 in
O-RING GROOVE WIDTH 0.125 in
TYPE OF BEARING Self-Lubricating
LENGTH THRU MOUNTING HOLE N/A
STATIC LOAD RATING [MAX] 10,830.00 lbf
SEALS None
CONCENTRICITY [MAX] 0.001
LENGTH 2 5/8 in
RECOMMENDED SHAFTING CLASS L
SEAL MATERIAL N/A
O-RING GROOVE DIAMETER 1.837 in
SHAFT DIA. 1 1/4 in
CENTER TO SHAFT N/A
ACCURACY CLASS Precision
SPEED (DRY) [MAX] 140
O-RING PART NO. 2-133
TRUNION TYPE N/A
RETAINING RING GROOVE DIAMETER 1.889 in
RETAINING RING PART NO. N 5100-200
STYLE OF BEARING Closed
MATERIAL Aluminum, Frelon Lining
INCH/METRIC Inch
SPEED (LUBRICATED) [MAX] 400
WEIGHT 0.459 LB
Description
MOUNTING HOLE SIZE N/A
BEARING LINER MATERIAL Frelon
CORROSION RESISTANT Yes
O.D. 2 in
PRELOAD Yes
DISTANCE BETWEEN O-RINGS 5/8 in
SELF ALIGNING No
EFFECTIVE SURFACE AREA 3.43 in2
DISTANCE BETWEEN RETAINING RINGS 1.875 in
RETAINING RING GROOVE WIDTH 0.07 in
O-RING GROOVE WIDTH 0.125 in
TYPE OF BEARING Self-Lubricating
LENGTH THRU MOUNTING HOLE N/A
STATIC LOAD RATING [MAX] 10,830.00 lbf
SEALS None
CONCENTRICITY [MAX] 0.001
LENGTH 2 5/8 in
RECOMMENDED SHAFTING CLASS L
SEAL MATERIAL N/A
O-RING GROOVE DIAMETER 1.837 in
SHAFT DIA. 1 1/4 in
CENTER TO SHAFT N/A
ACCURACY CLASS Precision
SPEED (DRY) [MAX] 140
O-RING PART NO. 2-133
TRUNION TYPE N/A
RETAINING RING GROOVE DIAMETER 1.889 in
RETAINING RING PART NO. N 5100-200
STYLE OF BEARING Closed
MATERIAL Aluminum, Frelon Lining
INCH/METRIC Inch
SPEED (LUBRICATED) [MAX] 400
WEIGHT 0.459 LB
Pacific Bearing by Pacific Bearing

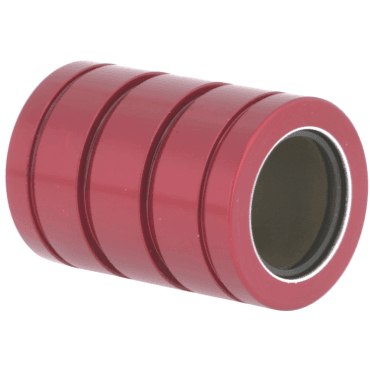

PBC LINEAR FL20 Simplicity® Self-Lubricated Linear Bearing

Regular price
$99.00
Sale price
$99.00
Regular price
1 in Stock Now
Orders placed before 3:00pm (Est) ship same day
