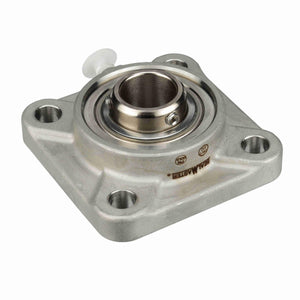

Sealmaster CRFS-PN32R Mounted Stainless Steel Four Bolt Flange Ball Bearing Steel, Phosphorus Nickel Coated - Setscrew Lock - Corrosion Resistant
- Regular price
- $1,770.28
- Sale price
- $1,770.28
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Bolt Size (in) | 3/4 in |
| Bore Diameter (in) | 2.9375 in |
| Housing Width (in) | 7.19 in |
| Overall Height to Inner Ring (in) | 3.98 in |
| Overall Width (in) | 7.19 in |
| Overall Height (in) | 3.98 in |
| Overall Length (in) | 7.19 in |
| Foot Height (in) | 0.94 in |
| Locking Collar Outside Diameter (in) | 4.52 in |
| Length Through Bore (in) | 3.88 in |
| Bolt Spacing (in) | 5.56 in |
| Bolt Circle (in) | 7.875 in |
Technical Specifications
| Rolling Element | Spherical Roller |
| Seal Type | Felt Labyrinth Seal |
| Maximum Speed (RPM) | 3000 rpm |
| Bore Shape | Straight |
| Measure Units | Inch |
| Pilot Configuration | No Pilot |
| Radial Dynamic Load Capacity (lb) | 47,447 lb |
| Housing Construction | Solid |
| Platform | USRB |
| Housing Color | Gray |
| Outer Ring Land Profile | Standard |
| Misalignment Type | Dynamic |
| End Cap | No |
| Series | USFB5000 |
| Lubrication Method | Lubrication Fitting |
| Static Load Rating (lb) | 65,610 lb |
| Housing Style | Flange Block |
| Housing Material | Cast Iron |
| Cage Material | Steel |
| Shaft Locking Type | Single Set Collar |
| Fixed/Expansion | Fixed |
| Housing Type | Flange, Four Bolt |
| Radial Clearance | Standard |
| Bolt Hole Shape | Round Hole |
| Ability to Relubricate | Yes |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Bearing Insert Material | 52100 Bearing Steel, Black Oxided |
| Bearing Insert Finish | Black Oxide Coated |
| Insert | USI5000-215 |
| Grease Fitting Thread Size | 1/8 NPT |
| Size Code | 9 |
General Specifications
| UPC | 662461361320 |
| Weight | 22.17 LB |
| Packaged Length | 7.88 IN |
| Packaged Width | 7.75 IN |
| Packaged Height | 4.69 IN |
| HTC | 8483.20.4080 |
| Country of Origin | Mexico |
