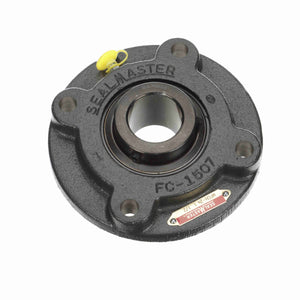

Sealmaster MFC-16 HT Mounted Cast Iron Flange Cartridge Ball Bearing Steel, Black Oxided - Setscrew Lock - High Temperature
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Powder coated epoxy cast iron housing with extended inner ring bearings
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock and pin dimple for direct lubrication and anti-rotation
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Overall Length (in) | 4.38 in |
| Foot Height (in) | 0.38 in |
| Overall Height (in) | 1.5 in |
| Overall Width (in) | 4.38 in |
| Bolt Size (in) | 5/16 in |
| Bore Diameter (in) | 1 in |
| Length Through Bore (in) | 1.498 in |
| Pilot Diameter (in) | 3 in |
| Housing Outside Diameter (in) | 4.38 in |
| Bolt Circle (in) | 3.625 in |
Technical Specifications
| Rolling Element | Ball Bearing |
| Outer Ring Land Profile | Standard |
| Housing Color | Black |
| Housing Construction | One Piece |
| Bore Shape | Straight |
| Misalignment Type | Static Only |
| Pilot Configuration | Piloted |
| Options | High Temperature |
| Seal Type | High Temperature Felt Labryinth Seal |
| Cage Material | PPS - Polyphenylene Sulfide |
| Housing Type | Flange, Piloted |
| Housing Style | Flange Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Ability to Relubricate | Yes |
| Pilot Depth (in) | 0.25 in |
| Dynamic Load Rating (lb) | 4,381 lb |
| Grease Fitting Thread Size | 1/4-28 |
| Bearing Insert Material | 52100 Bearing Steel |
| Cage Type | Land Riding Retainer |
| Fixed vs. Expansion | Fixed |
| Shaft Locking Type | Set Screw |
| Housing Material | Cast Iron |
| Radial Clearance | Standard |
| Bearing Insert Finish | Black Oxide |
| Insert | 3-1 |
| Vibration Frequency Fundamental Train | 0.0066 cps |
| Vibration Frequency Outer Ring Defect | 0.0595 cps |
| Static Load Rating (lb) | 2,567 lb |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Housing Coating | Powder Coated |
| Inner Ring Outside Diameter (in) | 1.594 in |
| Size Code | 2-13 |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Vibration Frequency Roller Spin | 0.0385 cps |
| Vibration Frequency Inner Ring Defect | 0.0905 cps |
| End Cap Available | No |
| Bearing Type | Medium Duty |
| Maximum Speed (RPM) | 5450 rpm |
| Max Operating Temperature (F) | 400 °F |
General Specifications
| UPC | 662461313688 |
| Weight | 3.00 LB |
| Packaged Length | 4.50 IN |
| Packaged Width | 1.69 IN |
| Packaged Height | 4.56 IN |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
