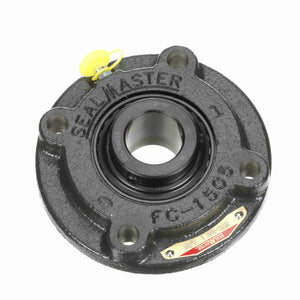

Sealmaster MFC-19C Mounted Cast Iron Flange Cartridge Ball Bearing Steel, Black Oxided - Setscrew Lock
- Regular price
- $198.50
- Sale price
- $198.50
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Bolt Size (in) | 3/8 in |
| Overall Width (in) | 5 in |
| Overall Height (in) | 1.69 in |
| Overall Length (in) | 5 in |
| Bore Diameter (in) | 1.1875 in |
| Foot Height (in) | 0.38 in |
| Pilot Diameter (in) | 3.375 in |
| Length Through Bore (in) | 1.688 in |
| Housing Outside Diameter (in) | 5 in |
| Bolt Circle (in) | 4.125 in |
Technical Specifications
| Rolling Element | Ball Bearing |
| Bore Shape | Straight |
| Pilot Configuration | Piloted |
| Housing Construction | One Piece |
| Housing Color | Black |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Cage Material | PPS - Polyphenylene Sulfide |
| Housing Type | Flange, Piloted |
| Seal Type | Single Lip Contact Seal |
| Housing Style | Flange Block |
| Ability to Relubricate | Yes |
| Inner Race Heat Treat Method | Zone-Hardened |
| Pilot Depth (in) | 0.38 in |
| Inner Ring Outside Diameter (in) | 1.859 in |
| Vibration Frequency Outer Ring Defect | 0.0595 cps |
| Radial Clearance | Standard |
| Housing Coating | Powder Coated |
| Fixed vs. Expansion | Fixed |
| Vibration Frequency Fundamental Train | 0.0066 cps |
| Max Operating Temperature (F) | 220 °F |
| Static Load Rating (lb) | 3,493 lb |
| Maximum Speed (RPM) | 4650 rpm |
| Insert | 3-13C |
| Bearing Insert Finish | Black Oxide |
| Grease Fitting Thread Size | 1/4-28 |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Bearing Type | Medium Duty |
| Housing Material | Cast Iron |
| End Cap Available | No |
| Size Code | 2-17 |
| Vibration Frequency Inner Ring Defect | 0.0905 cps |
| Dynamic Load Rating (lb) | 5,782 lb |
| Bearing Insert Material | 52100 Bearing Steel |
| Shaft Locking Type | Set Screw |
| Vibration Frequency Roller Spin | 0.0386 cps |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Cage Type | Land Riding Retainer |
General Specifications
| UPC | 662461026243 |
| Weight | 3.90 LB |
| Packaged Length | 5.00 IN |
| Packaged Width | 2.00 IN |
| Packaged Height | 5.00 IN |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
Manuals
