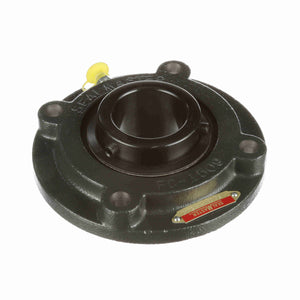

Sealmaster MFC-314 Mounted Cast Iron Flange Cartridge Ball Bearing Steel, Black Oxided - Setscrew Lock
- Regular price
- $1,397.00
- Sale price
- $1,397.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Bolt Size (in) | 5/8 in |
| Bolt Size (mm) | M16 mm |
| Overall Width (in) | 8.75 in |
| Overall Length (in) | 8.75 in |
| Overall Height (in) | 3.06 in |
| Bore Diameter (mm) | 70 mm |
| Pilot Diameter (in) | 6.375 in |
| Foot Height (in) | 0.56 in |
| Length Through Bore (in) | 3.06 in |
| Housing Outside Diameter (in) | 8.75 in |
| Bolt Circle (in) | 7.5 in |
Technical Specifications
| Bore Shape | Straight |
| Rolling Element | Ball Bearing |
| Pilot Configuration | Piloted |
| Housing Construction | One Piece |
| Housing Color | Black |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Cage Material | Brass |
| Housing Type | Flange, Piloted |
| Seal Type | Felt Labyrinth Seal |
| Housing Style | Flange Block |
| Pilot Depth (in) | 1.03 in |
| Ability to Relubricate | Yes |
| Inner Race Heat Treat Method | Zone-Hardened |
| Maximum Speed (RPM) | 2450 rpm |
| Bearing Insert Material | 52100 Bearing Steel |
| Dynamic Load Rating (lb) | 14,839 lb |
| Cage Type | Land Riding Retainer |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Radial Clearance | Standard |
| Static Load Rating (lb) | 11,224 lb |
| Fixed vs. Expansion | Fixed |
| Insert | 5314 |
| End Cap Available | No |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Bearing Type | Medium Duty |
| Shaft Locking Type | Set Screw |
| Size Code | 2-215 |
| Housing Coating | Powder Coated |
| Bearing Insert Finish | Black Oxide |
| Grease Fitting Thread Size | 1/8 NPT |
| Max Operating Temperature (F) | 220 °F |
| Housing Material | Cast Iron |
| Inner Ring Outside Diameter (in) | 3.641 in |
General Specifications
| UPC | 662461053836 |
| Weight | 18.20 LB |
| Packaged Length | 9.06 IN |
| Packaged Width | 8.88 IN |
| Packaged Height | 3.44 IN |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
