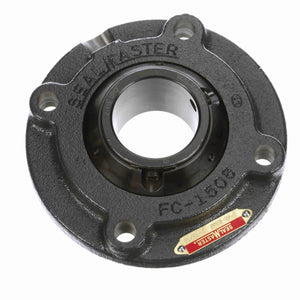

Sealmaster MFC-47 ML Mounted Cast Iron Flange Cartridge Ball Bearing Steel, Black Oxided - Setscrew Lock
- Regular price
- $2,107.00
- Sale price
- $2,107.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Bolt Size (in) | 5/8 in |
| Overall Width (in) | 8.75 in |
| Overall Length (in) | 8.75 in |
| Overall Height (in) | 3.25 in |
| Bore Diameter (in) | 2.9375 in |
| Foot Height (in) | 0.63 in |
| Pilot Diameter (in) | 6.375 in |
| Length Through Bore (in) | 3.248 in |
| Housing Outside Diameter (in) | 8.75 in |
| Bolt Circle (in) | 7.5 in |
Technical Specifications
| Rolling Element | Ball Bearing |
| Bore Shape | Straight |
| Pilot Configuration | Piloted |
| Housing Construction | One Piece |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Housing Color | Black |
| Options | High Temperature |
| Cage Material | Brass |
| Housing Type | Flange, Piloted |
| Seal Type | High Temp Labyrinth |
| Housing Style | Flange Block |
| Pilot Depth (in) | 1.22 in |
| Inner Race Heat Treat Method | Zone-Hardened |
| Ability to Relubricate | Yes |
| Shaft Locking Type | Set Screw |
| Max Operating Temperature (F) | 400 °F |
| Housing Material | Cast Iron |
| Bearing Insert Material | 52100 Bearing Steel |
| Inner Ring Outside Diameter (in) | 3.922 in |
| Housing Coating | Powder Coated |
| Bearing Insert Finish | Black Oxide |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Radial Clearance | Standard |
| Grease Fitting Thread Size | 1/4 NPT |
| Dynamic Load Rating (lb) | 17,412 lb |
| Cage Type | Land Riding Retainer |
| Insert | None |
| Size Code | 2-33 |
| End Cap Available | No |
| Maximum Speed (RPM) | 900 rpm |
| Static Load Rating (lb) | 13,174 lb |
| Fixed vs. Expansion | Fixed |
| Lubricant | High Temp Grease |
| Bearing Type | Medium Duty |
General Specifications
| UPC | 662461238479 |
| Weight | 19.45 LB |
| Packaged Length | 9.06 IN |
| Packaged Width | 8.88 IN |
| Packaged Height | 3.44 IN |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
Manuals
