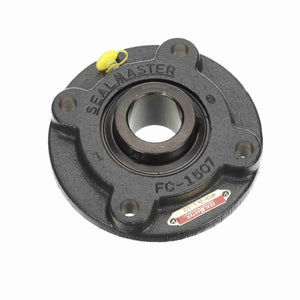

Sealmaster MFCH-24 Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing Steel, Black Oxided - Setscrew Lock
- Regular price
- $602.00
- Sale price
- $602.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Labyrinth seal and flinger with oil lubrication for reduced friction and adapter for relubrication
- Reduced internal clearance for less overall end play
- Looser than standard housing fit for ease of alignment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Bolt Size (in) | 7/16 in |
| Overall Width (in) | 6.13 in |
| Overall Height (in) | 1.94 in |
| Overall Length (in) | 6.13 in |
| Bore Diameter (in) | 1.5 in |
| Pilot Diameter (in) | 4.25 in |
| Foot Height (in) | 0.44 in |
| Length Through Bore (in) | 1.935 in |
| Housing Outside Diameter (in) | 6.13 in |
| Bolt Circle (in) | 5.125 in |
Technical Specifications
| Rolling Element | Ball Bearing |
| Bore Shape | Straight |
| Pilot Configuration | Piloted |
| Housing Construction | One Piece |
| Outer Ring Land Profile | Standard |
| Misalignment Type | Static Only |
| Housing Color | Black |
| Cage Material | PPS - Polyphenylene Sulfide |
| Housing Type | Flange, Piloted |
| Seal Type | Felt Labyrinth Seal |
| Housing Style | Flange Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Pilot Depth (in) | 0.41 in |
| Ability to Relubricate | Yes |
| Vibration Frequency Outer Ring Defect | 0.0673 cps |
| Bearing Type | Medium Duty |
| Shaft Locking Type | Set Screw |
| Insert | 3-18 |
| Cage Type | Land Riding Retainer |
| Grease Fitting Thread Size | 1/4-28 |
| Vibration Frequency Fundamental Train | 0.0067 cps |
| Size Code | 2-111 |
| Vibration Frequency Inner Ring Defect | 0.0994 cps |
| Housing Material | Cast Iron |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Inner Ring Outside Diameter (in) | 2.297 in |
| Max Operating Temperature (F) | 220 °F |
| Fixed vs. Expansion | Fixed |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Static Load Rating (lb) | 5,139 lb |
| Bearing Insert Material | 52100 Bearing Steel |
| Maximum Speed (RPM) | 3800 rpm |
| Radial Clearance | Standard |
| Dynamic Load Rating (lb) | 7,901 lb |
| End Cap Available | No |
| Vibration Frequency Roller Spin | 0.0417 cps |
| Housing Coating | Powder Coated |
| Bearing Insert Finish | Black Oxide |
General Specifications
| UPC | 662461306291 |
| Weight | 6.00 LB |
| Packaged Length | 6.75 IN |
| Packaged Width | 6.50 IN |
| Packaged Height | 2.44 IN |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
