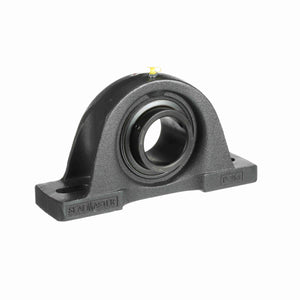

Sealmaster MP-51 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing teel, Black Oxided - Setscrew Lock
- Regular price
- $1,164.10
- Sale price
- $1,164.10
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Description
The Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing is a robust, ready-to-mount bearing unit designed for reliable performance in normal to medium-duty applications. Featuring a solid one-piece cast iron housing, this pillow block ensures maximum strength and rigidity. The bearing insert, crafted from 52100 bearing steel with a black oxide coating, provides excellent corrosion resistance and durability. It utilizes a setscrew locking collar or Sealmaster’s exclusive Skwezloc® concentric locking collar for secure shaft attachment, minimizing slippage. The unit includes felt seals to protect against contaminants and retain lubrication, with a relubricatable design for extended bearing life. The two-bolt base allows for straightforward installation, supporting radial or radial-and-thrust loads. With a wide range of bore sizes and configurations, this bearing is ideal for applications such as conveyors, industrial machinery, and material handling systems. Sealmaster’s innovative features, like the lock pin and dimple system, enable direct lubrication and prevent outer ring rotation, ensuring optimal performance and reduced maintenance.
Specifications
Dimensions
| Overall Height (in) | 8 in |
| Overall Width (in) | 4.00 in |
| Overall Length (in) | 15 in |
| Base Width (in) | 4.00 in |
| Bolt Size (in) | 7/8 in |
| Bore Diameter (in) | 3.1875 in |
| Foot Height (in) | 1.25 in |
| Base to Center Height (in) | 4.0000 in |
| Length Through Bore (in) | 3.375 in |
| Bolt Spacing Max (in) | 12.56 in |
| Centerline to Outermost Bearing Face (in) | 2.031 in |
| Bolt Spacing Min (in) | 9.69 in |
Technical Specifications
| Housing Base | Solid |
| Rolling Element | Ball Bearing |
| Bore Shape | Straight |
| Housing Construction | One Piece |
| Misalignment Type | Static Only |
| Housing Color | Black |
| Outer Ring Land Profile | Standard |
| Cage Material | Brass |
| Housing Type | Pillow Block, Two Bolt |
| Seal Type | Felt Labyrinth Seal |
| Housing Style | Pillow Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Setscrew Torque (in-lbs) | 350-450 in/lbs |
| Ability to Relubricate | Yes |
| Vibration Frequency Outer Ring Defect | 0.0762 cps |
| Dynamic Load Rating (lb) | 18,681 lb |
| Static Load Rating (lb) | 14,496 lb |
| Bearing Type | Medium Duty |
| Base Length (in) | 15.00 in |
| Bearing Insert Material | 52100 Bearing Steel |
| Fixed vs. Expansion | Fixed |
| Inner Ring Outside Diameter (in) | 4.156 in |
| Vibration Frequency Inner Ring Defect | 0.1071 cps |
| Vibration Frequency Fundamental Train | 0.0069 cps |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Max Operating Temperature (F) | 220 °F |
| Lubricant | Lithium Complex NLGI 2 Grease |
| End Cap Available | No |
| Size Code | 2-37 |
| Radial Clearance | Standard |
| Cage Type | Land Riding Retainer |
| Maximum Speed (RPM) | 2125 rpm |
| Housing Coating | Powder Coated |
| Insert | 3-33 |
| Bearing Insert Finish | Black Oxide |
| Shaft Locking Type | Set Screw |
| Housing Material | Cast Iron |
| Vibration Frequency Roller Spin | 0.0479 cps |
| Grease Fitting Thread Size | 1/4 NPT |
Dimensions
| Overall Height (in) | 8 in |
| Overall Width (in) | 4.00 in |
| Overall Length (in) | 15 in |
| Base Width (in) | 4.00 in |
| Bolt Size (in) | 7/8 in |
| Bore Diameter (in) | 3.1875 in |
| Foot Height (in) | 1.25 in |
| Base to Center Height (in) | 4.0000 in |
| Length Through Bore (in) | 3.375 in |
| Bolt Spacing Max (in) | 12.56 in |
| Centerline to Outermost Bearing Face (in) | 2.031 in |
| Bolt Spacing Min (in) | 9.69 in |
Technical Specifications
| Housing Base | Solid |
| Rolling Element | Ball Bearing |
| Bore Shape | Straight |
| Housing Construction | One Piece |
| Misalignment Type | Static Only |
| Housing Color | Black |
| Outer Ring Land Profile | Standard |
| Cage Material | Brass |
| Housing Type | Pillow Block, Two Bolt |
| Seal Type | Felt Labyrinth Seal |
| Housing Style | Pillow Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Setscrew Torque (in-lbs) | 350-450 in/lbs |
| Ability to Relubricate | Yes |
| Vibration Frequency Outer Ring Defect | 0.0762 cps |
| Dynamic Load Rating (lb) | 18,681 lb |
| Static Load Rating (lb) | 14,496 lb |
| Bearing Type | Medium Duty |
| Base Length (in) | 15.00 in |
| Bearing Insert Material | 52100 Bearing Steel |
| Fixed vs. Expansion | Fixed |
| Inner Ring Outside Diameter (in) | 4.156 in |
| Vibration Frequency Inner Ring Defect | 0.1071 cps |
| Vibration Frequency Fundamental Train | 0.0069 cps |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Max Operating Temperature (F) | 220 °F |
| Lubricant | Lithium Complex NLGI 2 Grease |
| End Cap Available | No |
| Size Code | 2-37 |
| Radial Clearance | Standard |
| Cage Type | Land Riding Retainer |
| Maximum Speed (RPM) | 2125 rpm |
| Housing Coating | Powder Coated |
| Insert | 3-33 |
| Bearing Insert Finish | Black Oxide |
| Shaft Locking Type | Set Screw |
| Housing Material | Cast Iron |
| Vibration Frequency Roller Spin | 0.0479 cps |
| Grease Fitting Thread Size | 1/4 NPT |
General Specifications
| UPC | 662461013953 |
| Weight | 43.56 LB |
| Packaged Length | 9.88 IN |
| Packaged Width | 17.25 IN |
| Packaged Height | 4.88 IN |
| HTC | 8483.20.8040 |
| Country of Origin | United States of America |
