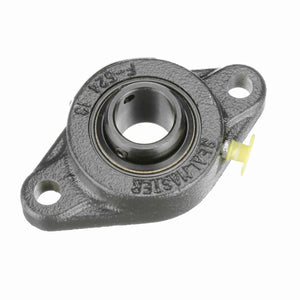

Sealmaster SFT-16 Mounted Cast Iron Two Bolt Flange Ball Bearing Black Oxided - Setscrew Lock
- Regular price
- $162.00
- Sale price
- $162.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Description
Sealmaster Mounted Cast Iron Two-Bolt Flange Ball Bearings
Sealmaster two-bolt flange ball bearings combine rugged cast iron housings with precision-engineered bearing inserts for reliable shaft support in demanding applications. The self-aligning design compensates for minor shaft misalignment, while multiple seal and locking options provide flexibility to match operating conditions. With a compact two-bolt mounting style, these bearings are easy to install and secure, making them ideal for conveyors, material handling, packaging, agriculture, and general industrial machinery.
Specifications
Dimensions
| Overall Width (in) | 2.75 in |
| Bolt Size (in) | 7/16 in |
| Overall Height (in) | 1.438 in |
| Overall Length (in) | 4.88 in |
| Bore Diameter (in) | 1 in |
| Foot Height (in) | 0.53 in |
| Length Through Bore (in) | 1.375 in |
| Bolt Spacing (in) | 3.8891 in |
Technical Specifications
| Rolling Element | Ball Bearing |
| Pilot Configuration | No Pilot |
| Bore Shape | Straight |
| Housing Construction | One Piece |
| Outer Ring Land Profile | Standard |
| Misalignment Type | Static Only |
| Housing Color | Black |
| Cage Material | PPS - Polyphenylene Sulfide |
| Seal Type | Felt Labyrinth Seal |
| Housing Type | Flange, Two Bolt |
| Housing Style | Flange Block |
| Ability to Relubricate | Yes |
| Setscrew Torque (in-lbs) | 85 in/lbs |
| Inner Race Heat Treat Method | Zone-Hardened |
| Max Operating Temperature (F) | 220 °F |
| Vibration Frequency Outer Ring Defect | 0.0682 cps |
| End Cap Available | No |
| Dynamic Load Rating (lb) | 2,801 lb |
| Static Load Rating (lb) | 1,651 lb |
| Shaft Locking Type | Set Screw |
| Bearing Type | Standard Duty |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Maximum Speed (RPM) | 6350 rpm |
| Radial Clearance | Standard |
| Inner Ring Outside Diameter (in) | 1.375 in |
| Cage Type | Land Riding Retainer |
| Bearing Insert Material | 52100 Bearing Steel |
| Vibration Frequency Roller Spin | 0.0442 cps |
| Housing Coating | Powder Coated |
| Insert | 2-1 |
| Grease Fitting Thread Size | 1/4-28 |
| Vibration Frequency Fundamental Train | 0.0068 cps |
| Housing Material | Cast Iron |
| Fixed vs. Expansion | Fixed |
| Size Code | 2-015 |
| Vibration Frequency Inner Ring Defect | 0.0985 cps |
| Bearing Insert Finish | Black Oxide |
General Specifications
| UPC | 662461004289 |
| Weight | 1.44 LB |
| Packaged Length | 4.00 IN |
| Packaged Width | 1.50 IN |
| Packaged Height | 3.94 IN |
| HTC | 8483.20.4040 |
| Country of Origin | Mexico |
