Description
Bore Type | Straight |
---|---|
Duty Type | Standard |
Mounting Type | Flange, Two Bolt |
Bore Diameter | 25 mm |
Overall Length | 4.8750 in |
Bolt Center-to-Center Length | 98.8 mm |
Housing Material | Cast Iron |
Locking Device | Concentric |
Expansion Type | Non-Expansion Bearing (Fixed) |
Overall Length/Diameter | 4.8750 in |
Overall Height | 1.5000 in |
Housing Width | 2.7500 in |
Overall Width | 2.7500 in |
Inner Ring Width | 1.3750 in |
Bearing Material | 52100 Bearing Steel, Black Oxided |
Radial Dynamic Load Capacity | 2801 lbs |
Radial Static Load Capacity | 1651 lbs |
Seal Type | Contact Seal |
Length Through Bore | 1.3750 in |
Operating Temperature Range | -20° to 220 °F |
Maximum Operating Temperature | 220 °F |
Finish/Coating | Gray |
Bolt Size | M10 mm |
Maximum RPM | 6351 rpm |
Lubrication Type | Lithium Complex NLGI 2 Grease |
Series | Standard |
Replacement Bearing | 5205TMC |
Color | Gray |
Lubricant | Lithium Complex NLGI 2 Grease |
Manufacturer Catalog Number | SFT-205TMC |
Manufacturer UPC Number | 662461253915 |
---|---|
Weight | 1.61 lbs |
Description
Bore Type | Straight |
---|---|
Duty Type | Standard |
Mounting Type | Flange, Two Bolt |
Bore Diameter | 25 mm |
Overall Length | 4.8750 in |
Bolt Center-to-Center Length | 98.8 mm |
Housing Material | Cast Iron |
Locking Device | Concentric |
Expansion Type | Non-Expansion Bearing (Fixed) |
Overall Length/Diameter | 4.8750 in |
Overall Height | 1.5000 in |
Housing Width | 2.7500 in |
Overall Width | 2.7500 in |
Inner Ring Width | 1.3750 in |
Bearing Material | 52100 Bearing Steel, Black Oxided |
Radial Dynamic Load Capacity | 2801 lbs |
Radial Static Load Capacity | 1651 lbs |
Seal Type | Contact Seal |
Length Through Bore | 1.3750 in |
Operating Temperature Range | -20° to 220 °F |
Maximum Operating Temperature | 220 °F |
Finish/Coating | Gray |
Bolt Size | M10 mm |
Maximum RPM | 6351 rpm |
Lubrication Type | Lithium Complex NLGI 2 Grease |
Series | Standard |
Replacement Bearing | 5205TMC |
Color | Gray |
Lubricant | Lithium Complex NLGI 2 Grease |
Manufacturer Catalog Number | SFT-205TMC |
Manufacturer UPC Number | 662461253915 |
---|---|
Weight | 1.61 lbs |
Sealmaster
by
Sealmaster

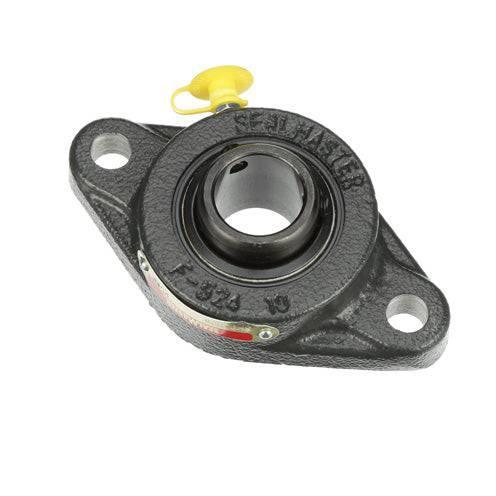

SEALMASTER SFT-205TMC | 704132 Flange-Mount Ball Bearing Unit
- Regular price
- $90.00
- Sale price
- $90.00
- Regular price
-
2 in Stock Now
Orders placed before 3:00pm (Est) ship same day
