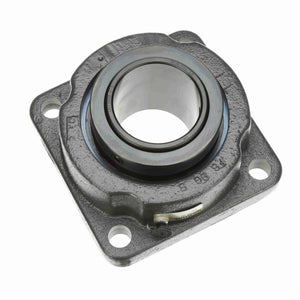

Sealmaster USFB5000-215 Mounted Cast Iron Four Bolt Flange Spherical Roller Bearing Steel, Black Oxided - Collar Mount Lock
- Regular price
- $1,041.00
- Sale price
- $1,041.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Bolt Size (in) | 3/4 in |
| Bore Diameter (in) | 2.9375 in |
| Housing Width (in) | 7.19 in |
| Overall Height to Inner Ring (in) | 3.98 in |
| Overall Width (in) | 7.19 in |
| Overall Height (in) | 3.98 in |
| Overall Length (in) | 7.19 in |
| Foot Height (in) | 0.94 in |
| Locking Collar Outside Diameter (in) | 4.52 in |
| Length Through Bore (in) | 3.88 in |
| Bolt Spacing (in) | 5.56 in |
| Bolt Circle (in) | 7.875 in |
Technical Specifications
| Rolling Element | Spherical Roller |
| Seal Type | Felt Labyrinth Seal |
| Maximum Speed (RPM) | 3000 rpm |
| Bore Shape | Straight |
| Measure Units | Inch |
| Pilot Configuration | No Pilot |
| Radial Dynamic Load Capacity (lb) | 47,447 lb |
| Housing Construction | Solid |
| Platform | USRB |
| Housing Color | Gray |
| Outer Ring Land Profile | Standard |
| Misalignment Type | Dynamic |
| End Cap | No |
| Series | USFB5000 |
| Lubrication Method | Lubrication Fitting |
| Static Load Rating (lb) | 65,610 lb |
| Housing Style | Flange Block |
| Housing Material | Cast Iron |
| Cage Material | Steel |
| Shaft Locking Type | Single Set Collar |
| Fixed/Expansion | Fixed |
| Housing Type | Flange, Four Bolt |
| Radial Clearance | Standard |
| Bolt Hole Shape | Round Hole |
| Ability to Relubricate | Yes |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Bearing Insert Material | 52100 Bearing Steel, Black Oxided |
| Bearing Insert Finish | Black Oxide Coated |
| Insert | USI5000-215 |
| Grease Fitting Thread Size | 1/8 NPT |
| Size Code | 9 |
General Specifications
| UPC | 662461361320 |
| Weight | 22.17 LB |
| Packaged Length | 7.88 IN |
| Packaged Width | 7.75 IN |
| Packaged Height | 4.69 IN |
| HTC | 8483.20.4080 |
| Country of Origin | Mexico |
