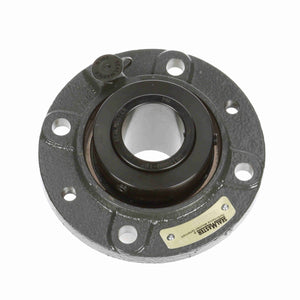

Sealmaster USFC5000-107 Mounted Cast Iron Piloted Flange Spherical Roller Bearing Steel, Black Oxided - Collar Mount Lock
- Regular price
- $650.00
- Sale price
- $650.00
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Bolt Size (in) | 3/8 in |
| Bore Diameter (in) | 1.4375 in |
| Overall Length (in) | 5.25 in |
| Overall Width (in) | 5.25 in |
| Foot Height (in) | 0.47 in |
| Pilot Diameter (in) | 3.625 in |
| Overall Height (in) | 2.75 in |
| Overall Height to Inner Ring (in) | 1.44 in |
| Locking Collar Outside Diameter (in) | 2.77 in |
| Housing Outside Diameter (in) | 5.25 in |
| Centerline to Outermost Bearing Face (in) | 1.47 in |
| Mounting Surface to End of Housing (in) | 1.28 in |
| Bolt Spacing (in) | 3.09 in |
| Bolt Circle (in) | 4.375 in |
| Length Through Bore (in) | 2.75 in |
Technical Specifications
| Bore Shape | Straight |
| Rolling Element | Spherical Roller |
| Seal Type | Felt Labyrinth Seal |
| Measure Units | Inch |
| Pilot Configuration | With Pilot |
| Housing Construction | Solid |
| Radial Dynamic Load Capacity (lb) | 20,368 lb |
| Maximum Speed (RPM) | 4000 rpm |
| Outer Ring Land Profile | Standard |
| Housing Color | Black |
| End Cap | No |
| Platform | USRB |
| Misalignment Type | Dynamic |
| Series | USFC5000 |
| Lubrication Method | Lubrication Fitting |
| Static Load Rating (lb) | 23,609 lb |
| Fixed/Expansion | Fixed |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Cage Material | Steel |
| Housing Type | Flange, Cartridge |
| Shaft Locking Type | Single Set Collar |
| Radial Clearance | Standard |
| Bolt Hole Shape | Round Hole |
| Ability to Relubricate | Yes |
| Setscrew Torque (in-lbs) | 168 in/lbs |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Bearing Insert Finish | Black Oxide Coated |
| Vibration Frequency Fundamental Train | 0.007 cps |
| Vibration Frequency Outer Ring Defect | 0.1117 cps |
| Misalignment Capability | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Inner Ring Defect | 0.1549 cps |
| Housing Coating | POWDER COATED |
| Insert | USI5000-107 |
| Size Code | 4 |
| Bearing Insert Material | 52100 Bearing Steel, Black Oxided |
| Grease Fitting Thread Size | 1/4-28 |
| Vibration Frequency Roller Spin | 0.0977 cps |
General Specifications
| UPC | 662461363287 |
| Weight | 5.64 LB |
| Packaged Length | 5.50 IN |
| Packaged Width | 5.38 IN |
| Packaged Height | 3.50 IN |
| HTC | 8483.20.4080 |
| Country of Origin | Mexico |
