The tool for efficient dismounting of deep groove ball bearings

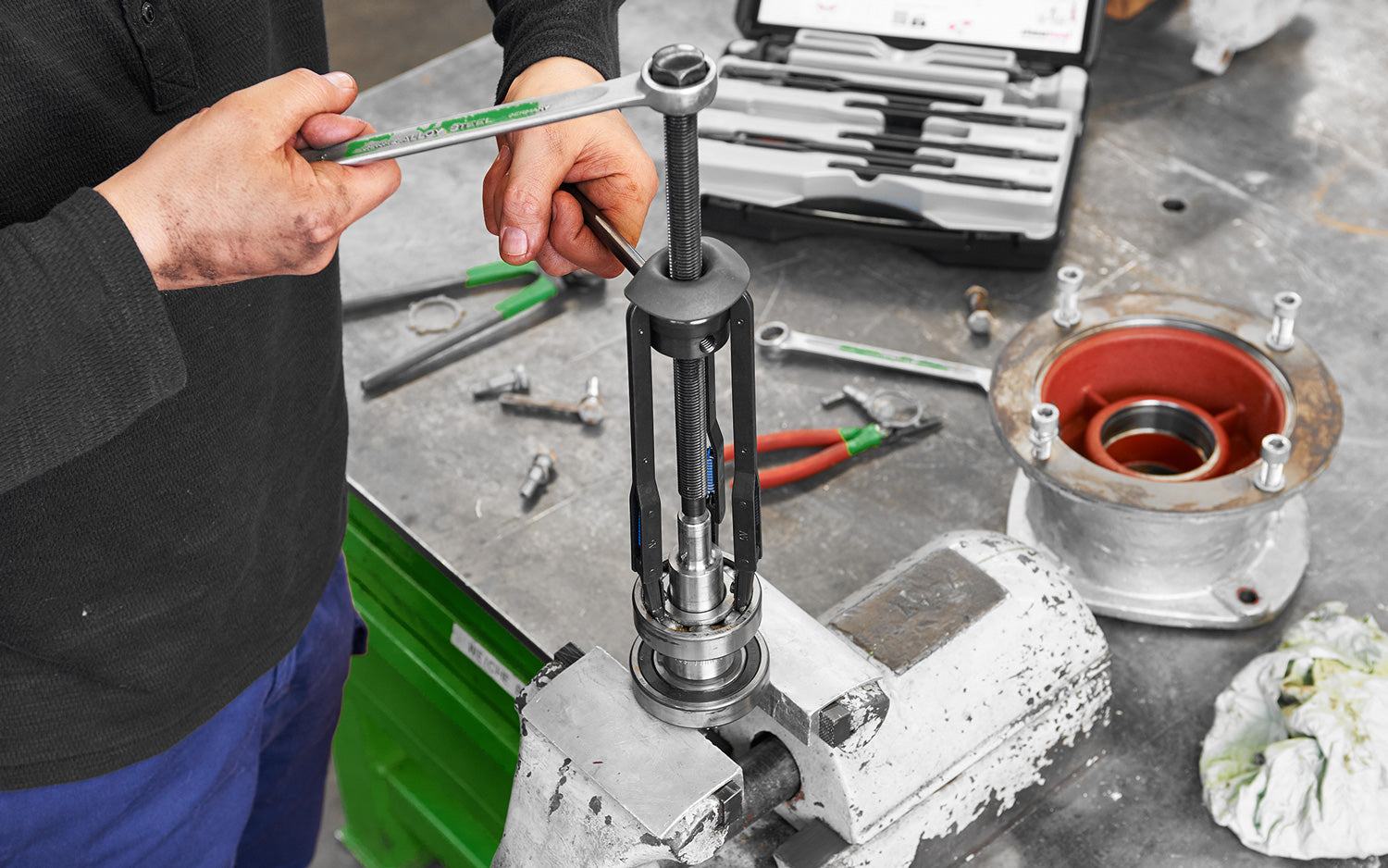

With the extractor tool BP 61, deep groove ball bearings can be removed from the shaft. It is also equally suited for removing bearings from just a shaft. Even sealed bearings can be dismounted once the seal is removed. The hooks of the puller arms are placed in the outer ring. The toolset can be used with 70 different kinds of deep groove ball bearings with diameters of 10 to 100 mm.
- The hooks of the puller arms latch directly into the outer raceway and support themselves on the shoulder of the inner ring, creating a secure hold and optimal power transfer
- The hooks are spring-mounted onto the puller arms so that they can easliy fit into the bearing
- The high-quality steel puller arms are resilient and intended for long-lasting use
- For shaft diameters measuring from 10–100 mm
- All components are available as spare parts
- An elastomer locking ring simplifies the attachment of the puller arms and holds them in position during the extraction process
- The elastic locking ring simplifies tool set-up and holds the puller arms in position during extraction
- The puller can also be used to remove sealed bearings from blind housings after the seal has been removed
- Retaining flap simplifies attachment of the puller arms to the spindle and holds them in position
The tool for efficient dismounting of deep groove ball bearings
With the extractor tool BP 61, deep groove ball bearings can be removed from the shaft. It is also equally suited for removing bearings from just a shaft. Even sealed bearings can be dismounted once the seal is removed. The hooks of the puller arms are placed in the outer ring. The toolset can be used with 70 different kinds of deep groove ball bearings with diameters of 10 to 100 mm.
- The hooks of the puller arms latch directly into the outer raceway and support themselves on the shoulder of the inner ring, creating a secure hold and optimal power transfer
- The hooks are spring-mounted onto the puller arms so that they can easliy fit into the bearing
- The high-quality steel puller arms are resilient and intended for long-lasting use
- For shaft diameters measuring from 10–100 mm
- All components are available as spare parts
- An elastomer locking ring simplifies the attachment of the puller arms and holds them in position during the extraction process
- The elastic locking ring simplifies tool set-up and holds the puller arms in position during extraction
- The puller can also be used to remove sealed bearings from blind housings after the seal has been removed
- Retaining flap simplifies attachment of the puller arms to the spindle and holds them in position
Simatec BP61 Bearing Puller Kit, dismounting deep groove ball bearings,10 to 100 mm.
