Simatec HPS 200, Electric hot plate with thermostat controlled bearing heating. (120V/60 Hz)

Brand: Simatec
Regular price
$1,426.00
Sale price
$1,426.00
Regular price
Shipping calculated at checkout.
5 in Stock Now

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Need Help?
Call us 1 (248) 429-9073
Left banner
Logo
Authorized Retailer

Simalube automatic lubricators provide consistent, reliable lubrication for bearings, chains, and other machinery components, reducing maintenance time and extending equipment life. Easy to install and adjustable for various intervals, Simalube ensures optimal performance in industrial, automotive, and maintenance applications.

Bottom image 1

FREE SHIPPING

All Orders Over $100 Ship Free Ground

Bottom image 2

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Bottom image 3

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

Bottom image 4

PRICE MATCH GUARANTEE

Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it

Description

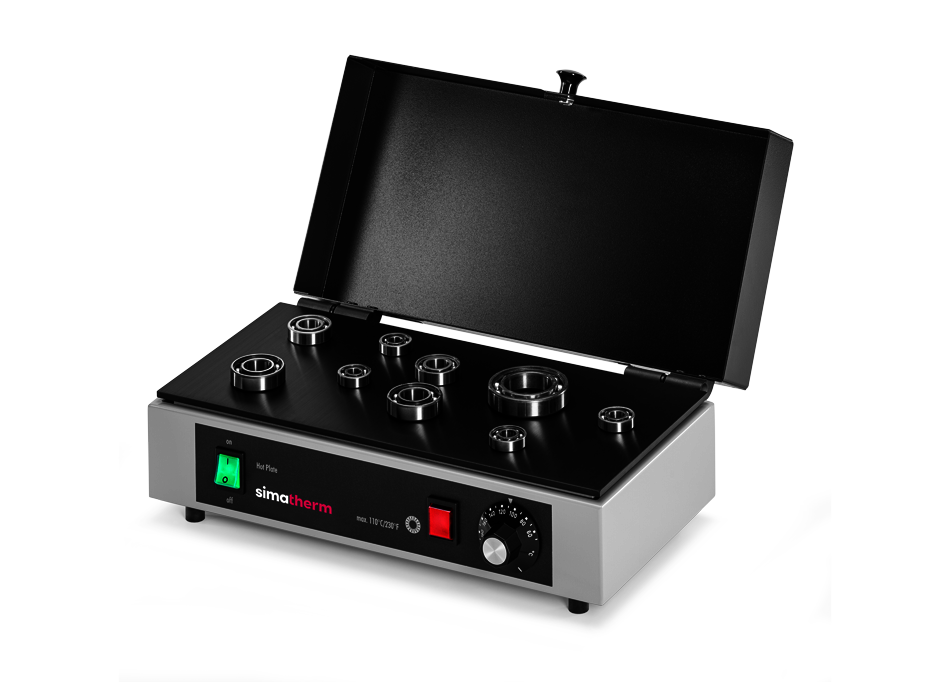

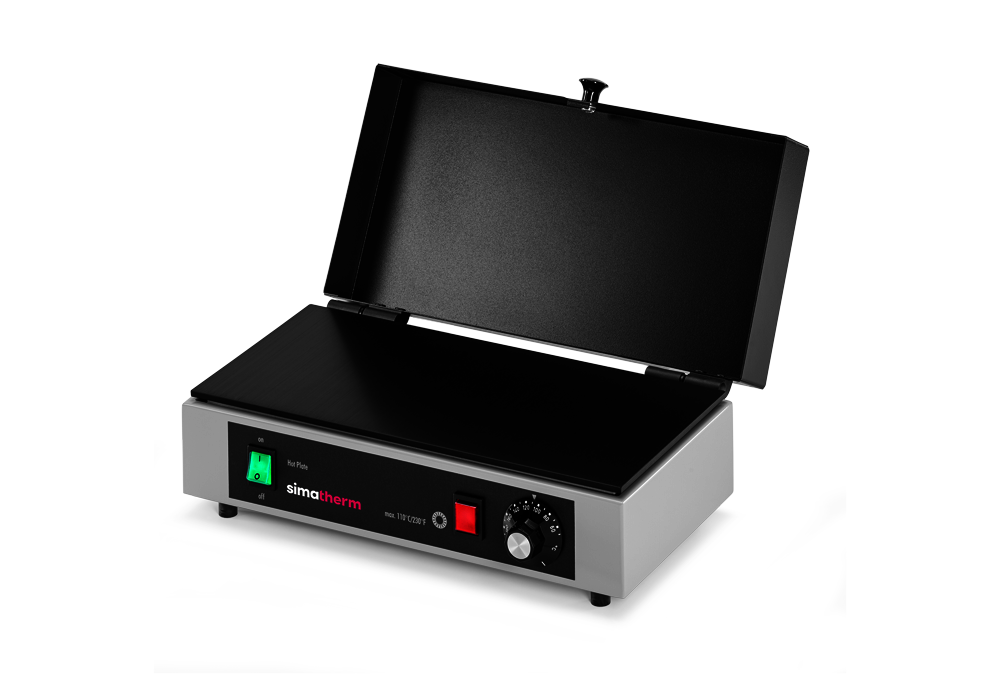

Electric heating plate with temperature control

The two electric heating plates with thermostat-controlled heating are especially suitable for small bearings and machine parts. The temperature can be continuously adjusted between 50 °C and 200 °C on the controller.

  • HPS for workpieces weighing up to 5 kg; HPL for workpieces weighing up to 10 kg
  • Designed to heat multiple workpieces simultaneously
  • Flat heating surface for gentle and uniform heating of the bearing
  • Also suitable for heating non-ferritic workpieces such as aluminum or brass
  • Available for voltages of 100–115 and 230V
  • Control range from 50 to 200 °C
  • 3 years manufacturer warranty

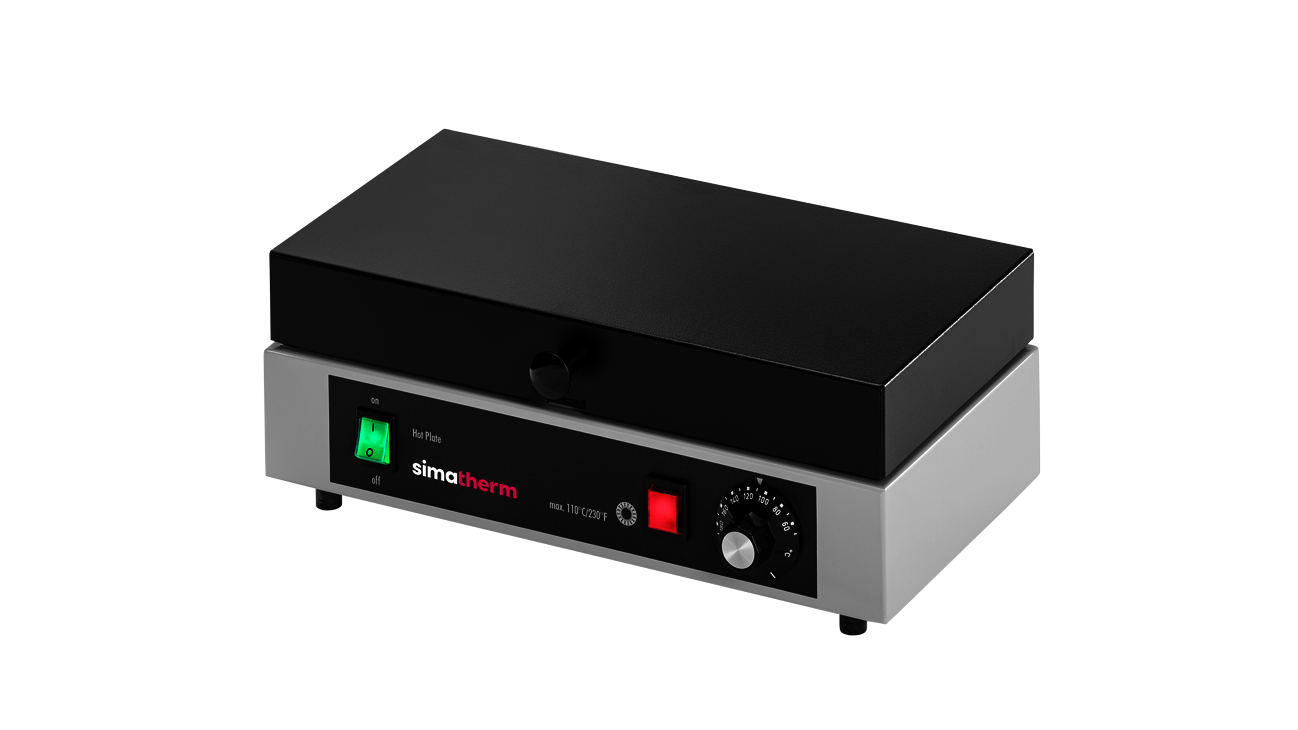

  • The cover prevents contamination of the workpieces during heating. In addition, the workpieces are heated quicker when the cover is closed.

Hot Plate HPS and HPL Technical Data

Category Property HPS HPL
General Designation Heaters for small workpieces
Voltage V / Hz 220 – 240 V / 50 – 60 Hz, 100 – 120 V / 50 – 60 Hz
Workpiece Maximum weight 5 kg 10 kg
Temperature Control Range 50 – 200°C
Accuracy (electronic) ± 5°C
Maximum temperature (approx.) 200°C
Suitability Suitable for heating sealed bearings Yes
Suitable for heating pre-greased bearings Yes
Control Control panel Main switch, temperature control
Dimensions Size of the operating surface (LxW) 380 x 180 mm 380 x 380 mm
Measurements (LxWxH) 390 x 190 x 150 mm 390 x 390 x 170 mm
Weight and Power Overall weight 6 kg (13.2 lbs) 10 kg (22 lbs)
Maximum power consumption 1.0 kVA 2.0 kVA
