Description
World's first controllable induction heater with an app

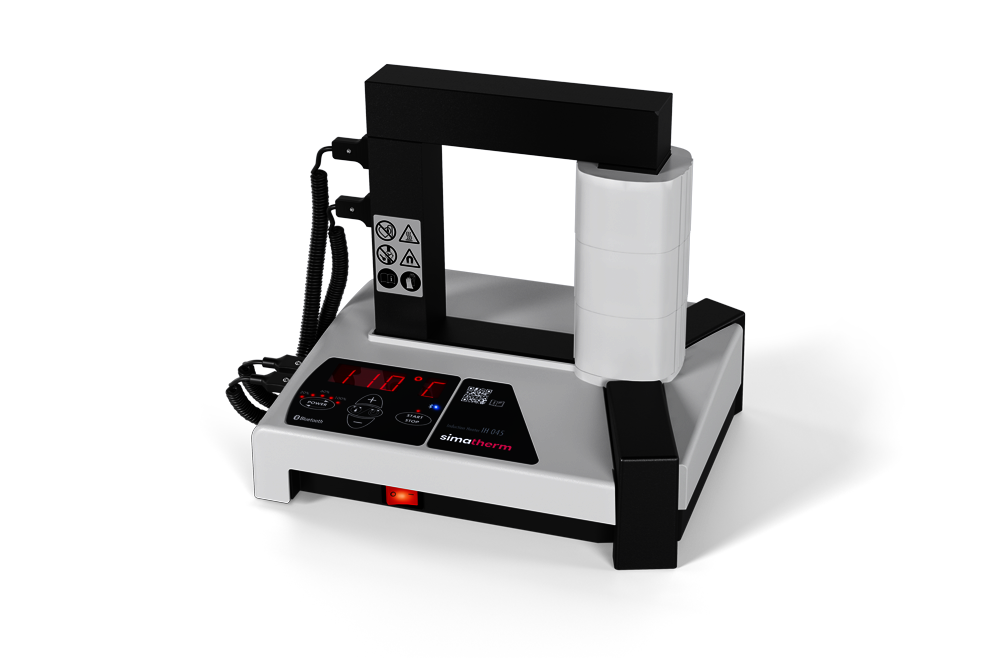

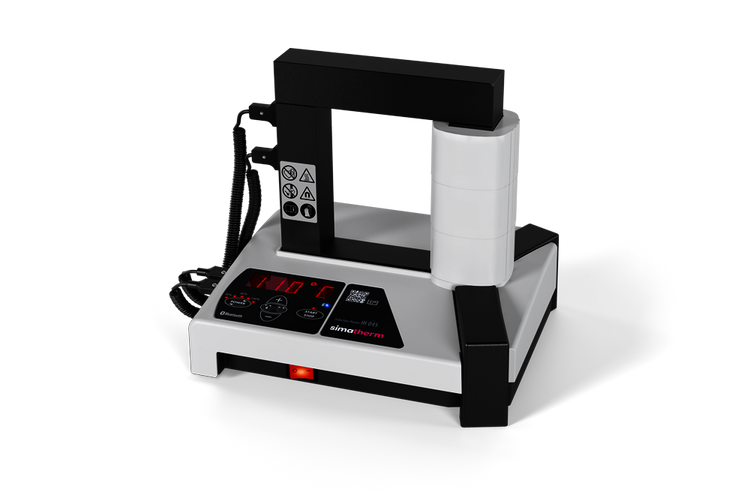

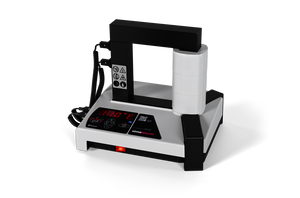

The IH 045 is suitable for heating small and medium-sized workpieces up to 45 kg. Due to the external induction coil, the unit works extremely efficiently. The power can be adjusted in eight stages if required.
- Connectivity with the "simatec World of Maintenance" app
- Remote control
- For rolling bearings weighing up to 45 kg
- For workpieces with an inner diameter of 20 to 310 mm
- Available for voltages of 100, 115 and 230 V
- 8-stage power consumption combined with smaller yokes, allows smaller bearings to be heated safely and quickly with less energy
- Extendable bearing support arms
- Smallest and fastest device in its performance class

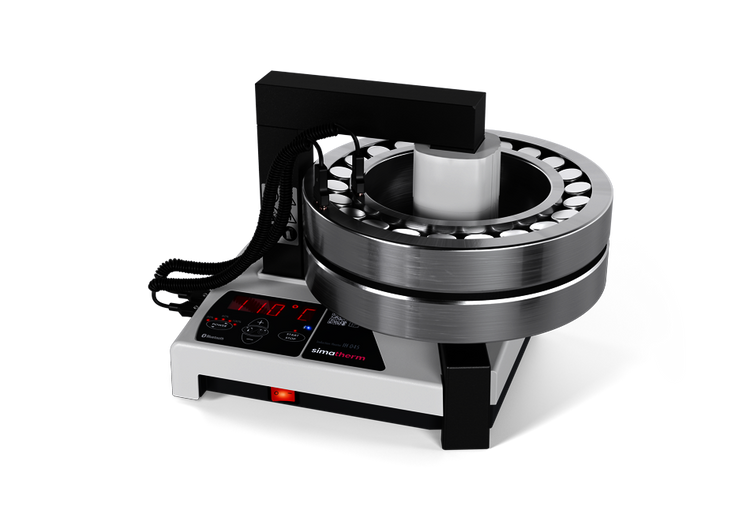

- Smallest external induction coil
- Supplied with three yokes as standard
- Particularly compact design - including the yokes only 17 kg in weight
- 3 year manufacturer warranty
- Can heat a 28 kg bearing from 20 °C to 110 °C in 20 minutes, thus saving time and energy
- Automatic demagnetization
simatherm IH 045 Heater Technical Data
| Category | Property | Specification |
|---|---|---|
| General | Designation | Heater for the most common rolling bearings |
| Power | Voltage V / Hz / power | 100 V / 50 – 60 Hz / 1.5 kVA 110 – 120 V / 50 – 60 Hz / 1.7 kVA 220 – 240 V / 50 – 60 Hz / 2.1 kVA |
| Workpiece | Maximum weight | 45 kg |
| Bore diameter | From 20 mm inner diameter to 310 mm outer diameter | |
| Temperature Control | Range | 20 – 180°C |
| Accuracy (electronic) | ± 3°C | |
| Temperature Monitoring | Magnetic probe | Type K |
| Maximum temperature (approx.) | 180 °C | |
| Two-sensor technology | Yes | |
| Time Control | Range | 0 – 60 minutes |
| Accuracy | 0.1 minutes | |
| Modes | Thermometer mode | Yes |
| Bearing temperature mode | Yes | |
| Power Management | Power level | 8 levels: 10-20-30-40-50-60-80-100% |
| Magnetization | Automatic demagnetization / residual magnetism | Yes / < 2 A/cm |
| Suitability | Suitable for heating sealed bearings | Yes |
| Suitable for heating pre-greased bearings | Yes | |
| Suitability for precision bearings | Yes | |
| Safety | Thermal overload protection | Yes |
| Error guide codes | Yes; error messages in text form visible in the app | |
| Magnetic Properties | Maximum magnetic flux | 1.5 T |
| Control | Control panel | Keyboard with LED-display or remote control via app |
| Dimensions | Size of the operating area (WxH) | 114 x 160 mm |
| Coil diameter | 89 mm | |
| Measurements (LxWxH) | 320 x 267 x 293 mm | |
| Core cross section | 42.5 x 42.5 mm | |
| Overall weight including yokes | 17 kg | |
| Yokes | Number of standard yokes | 3 |

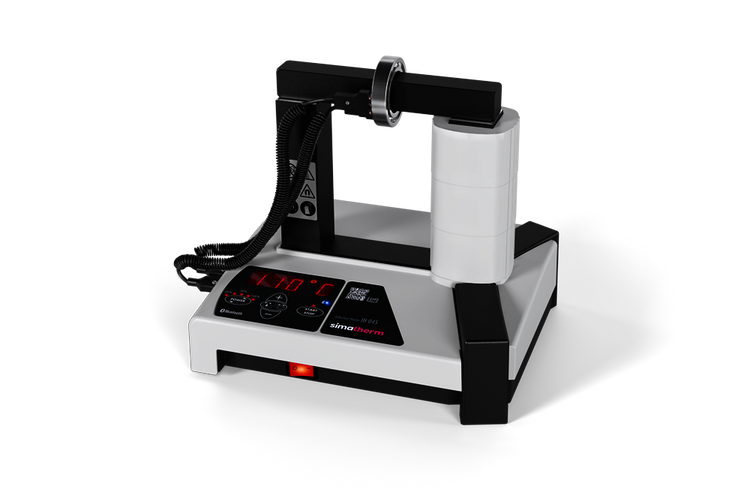

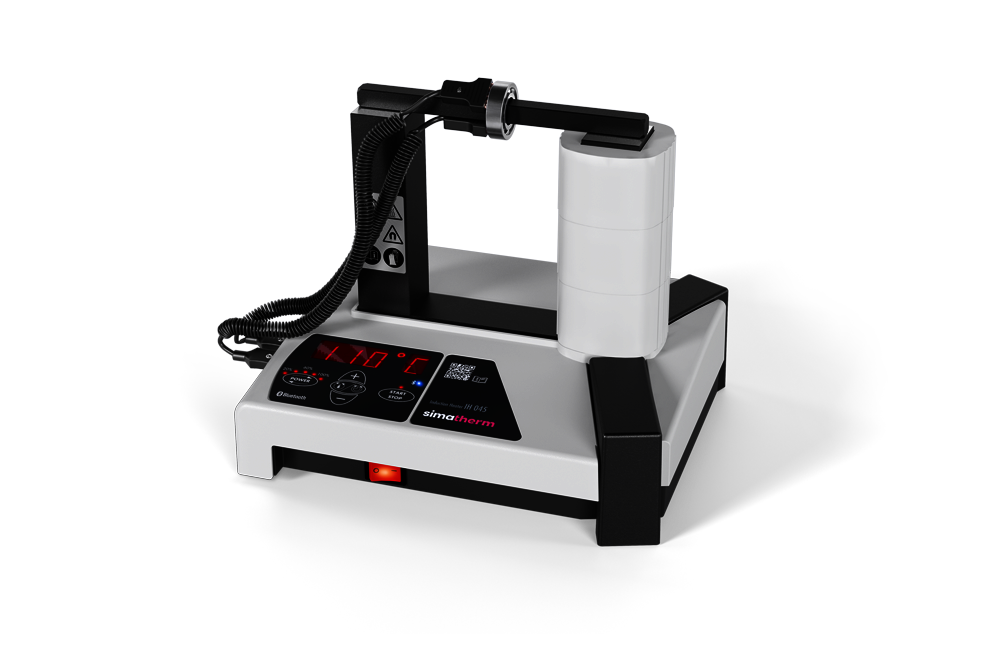

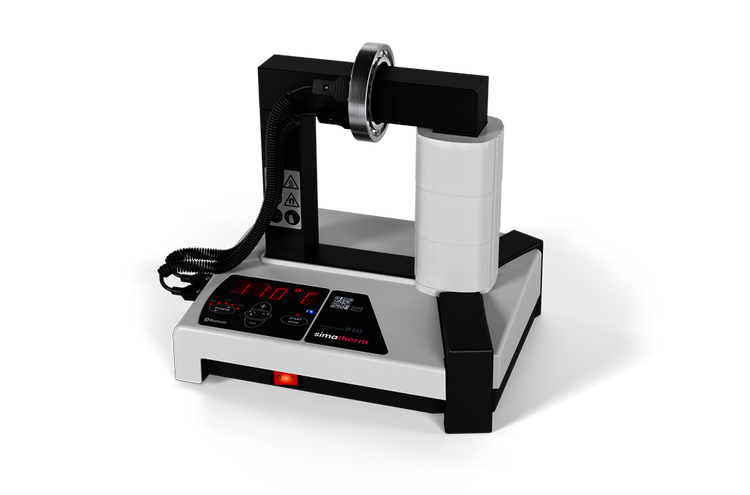

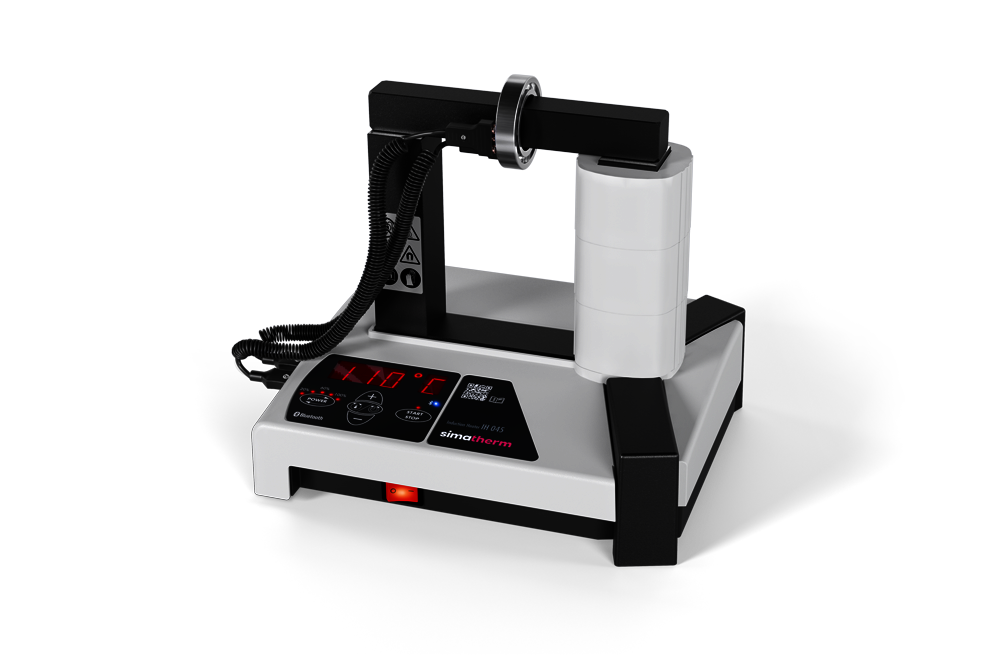

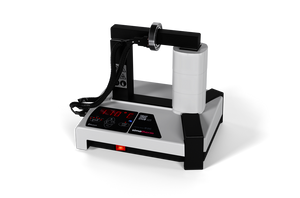

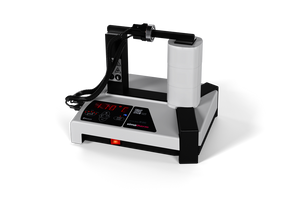

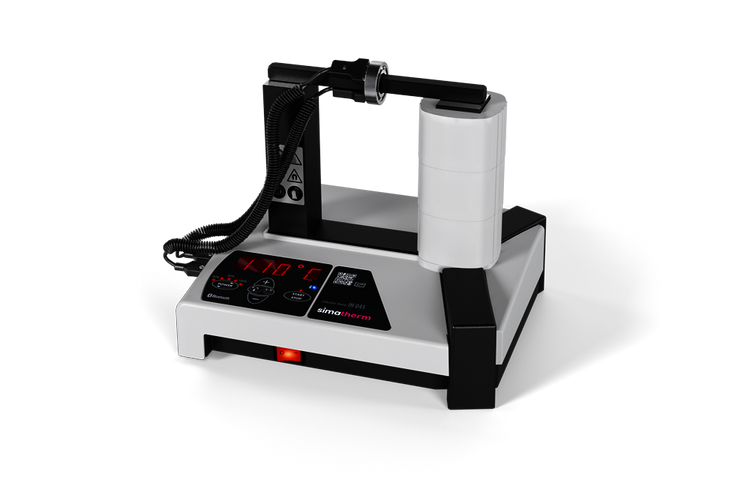

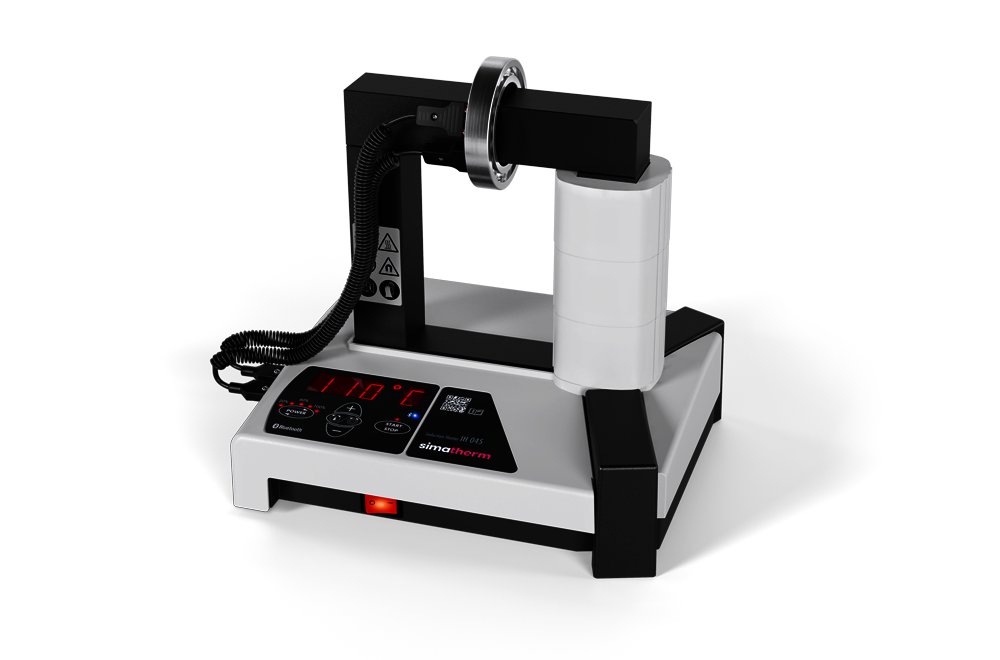

| Standard yokes | 42.5 x 42.5 x 219 mm (for bearings ≥ 60 mm bore diameter) 28 x 28 x 219 mm (for bearings ≥ 40 mm bore diameter) 14 x 14 x 219 mm (for bearings ≥ 20 mm bore diameter) |
|
| Yoke storage | Yes, integrated | |
| Housing material | Plastic |
Description
World's first controllable induction heater with an app
The IH 045 is suitable for heating small and medium-sized workpieces up to 45 kg. Due to the external induction coil, the unit works extremely efficiently. The power can be adjusted in eight stages if required.
- Connectivity with the "simatec World of Maintenance" app
- Remote control
- For rolling bearings weighing up to 45 kg
- For workpieces with an inner diameter of 20 to 310 mm
- Available for voltages of 100, 115 and 230 V
- 8-stage power consumption combined with smaller yokes, allows smaller bearings to be heated safely and quickly with less energy
- Extendable bearing support arms
- Smallest and fastest device in its performance class
- Smallest external induction coil
- Supplied with three yokes as standard
- Particularly compact design - including the yokes only 17 kg in weight
- 3 year manufacturer warranty
- Can heat a 28 kg bearing from 20 °C to 110 °C in 20 minutes, thus saving time and energy
- Automatic demagnetization
simatherm IH 045 Heater Technical Data
| Category | Property | Specification |
|---|---|---|
| General | Designation | Heater for the most common rolling bearings |
| Power | Voltage V / Hz / power | 100 V / 50 – 60 Hz / 1.5 kVA 110 – 120 V / 50 – 60 Hz / 1.7 kVA 220 – 240 V / 50 – 60 Hz / 2.1 kVA |
| Workpiece | Maximum weight | 45 kg |
| Bore diameter | From 20 mm inner diameter to 310 mm outer diameter | |
| Temperature Control | Range | 20 – 180°C |
| Accuracy (electronic) | ± 3°C | |
| Temperature Monitoring | Magnetic probe | Type K |
| Maximum temperature (approx.) | 180 °C | |
| Two-sensor technology | Yes | |
| Time Control | Range | 0 – 60 minutes |
| Accuracy | 0.1 minutes | |
| Modes | Thermometer mode | Yes |
| Bearing temperature mode | Yes | |
| Power Management | Power level | 8 levels: 10-20-30-40-50-60-80-100% |
| Magnetization | Automatic demagnetization / residual magnetism | Yes / < 2 A/cm |
| Suitability | Suitable for heating sealed bearings | Yes |
| Suitable for heating pre-greased bearings | Yes | |
| Suitability for precision bearings | Yes | |
| Safety | Thermal overload protection | Yes |
| Error guide codes | Yes; error messages in text form visible in the app | |
| Magnetic Properties | Maximum magnetic flux | 1.5 T |
| Control | Control panel | Keyboard with LED-display or remote control via app |
| Dimensions | Size of the operating area (WxH) | 114 x 160 mm |
| Coil diameter | 89 mm | |
| Measurements (LxWxH) | 320 x 267 x 293 mm | |
| Core cross section | 42.5 x 42.5 mm | |
| Overall weight including yokes | 17 kg | |
| Yokes | Number of standard yokes | 3 |
| Standard yokes | 42.5 x 42.5 x 219 mm (for bearings ≥ 60 mm bore diameter) 28 x 28 x 219 mm (for bearings ≥ 40 mm bore diameter) 14 x 14 x 219 mm (for bearings ≥ 20 mm bore diameter) |
|
| Yoke storage | Yes, integrated | |
| Housing material | Plastic |
Simatec
by
Simatec
Simatec IH 045 Induction Heater for heating small and medium-sized workpieces up to 45 kg (120V/60 Hz)
- Regular price
- $3,418.00
- Sale price
- $3,418.00
- Regular price
-
5 in Stock Now
