Description
| Specification | Details |
|---|---|
| Bore Type | Cylindrical |
| Outer Ring Type | Not Split |
| Width | 23 mm |
| Bore Diameter | 1.378 in / 35 mm |
| Outside Diameter | 2.8346 in / 72 mm |
| Overall Width | 23 mm |
| Internal Clearance | C3 |
| Closure Type | None |
| Lubrication Hole Type | Hole and groove |
| Dynamic Load Capacity | 4490 lbf |
| Static Load Capacity | 4290 lbf |
| Maximum RPM | 12000 RPM |
| Operating Temperature Range | Maximum of +390 °F |
| Cage Material | Bearing steel |
| Bearing Material | Bearing steel |
| Cage Type | Sheet metal |
| Precision Rating | Not Rated |
| Finish/Coating | None |
| Outer Ring Width | 0.9055 in / 23 mm |
| Inner Ring Width | 0.9055 in / 23 mm |
| Fillet Radius | 1.00 mm |
| Series | 222 |
| Manufacturer UPC Number | 7316572101551 |
| Weight | 1.00 lbs |
| Locating | None |
| Rolling Element | Spherical |
| Row Type & Fill Slot | 2 |

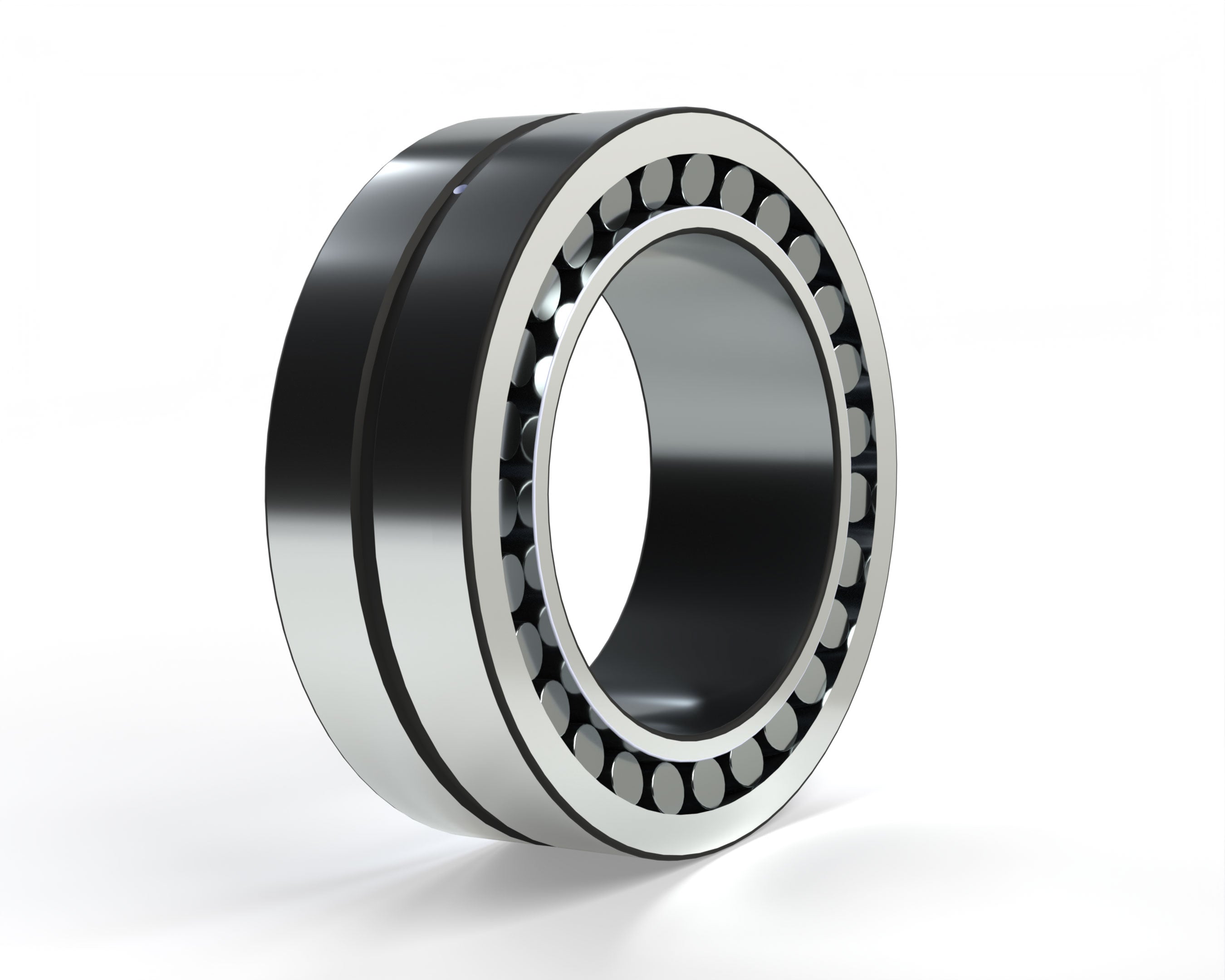

| Description | Spherical Roller Bearing, Cyl. bore, Open, Steel cage, C0 |
| ABEC | ABEC 1 |
| Coating Material | None |
| Lubrication | None |
| Lubrication Type | Hole and groove |
| Roller Material | Bearing steel |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
