About
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
| Category | Specification |
|---|---|
| Dimensions | |
| Bore diameter | 50 mm |
| Outside diameter | 90 mm |
| Width | 23 mm |
| Performance | |
| Basic dynamic load rating | 107 kN |
| Basic static load rating | 108 kN |
| Reference speed | 7,000 r/min |
| Limiting speed | 9,500 r/min |
| SKF performance class | SKF Explorer |
| Properties | |
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Tapered 1:12 |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Tolerance class for dimensions | Normal |
| Tolerance class for run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Logistics | |
| Product net weight | 0.603 kg |
| eClass code | 23-05-09-11 |
| UNSPSC code | 31171510 |
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
| Category | Specification |
|---|---|
| Dimensions | |
| Bore diameter | 50 mm |
| Outside diameter | 90 mm |
| Width | 23 mm |
| Performance | |
| Basic dynamic load rating | 107 kN |
| Basic static load rating | 108 kN |
| Reference speed | 7,000 r/min |
| Limiting speed | 9,500 r/min |
| SKF performance class | SKF Explorer |
| Properties | |
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Tapered 1:12 |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Tolerance class for dimensions | Normal |
| Tolerance class for run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Logistics | |
| Product net weight | 0.603 kg |
| eClass code | 23-05-09-11 |
| UNSPSC code | 31171510 |

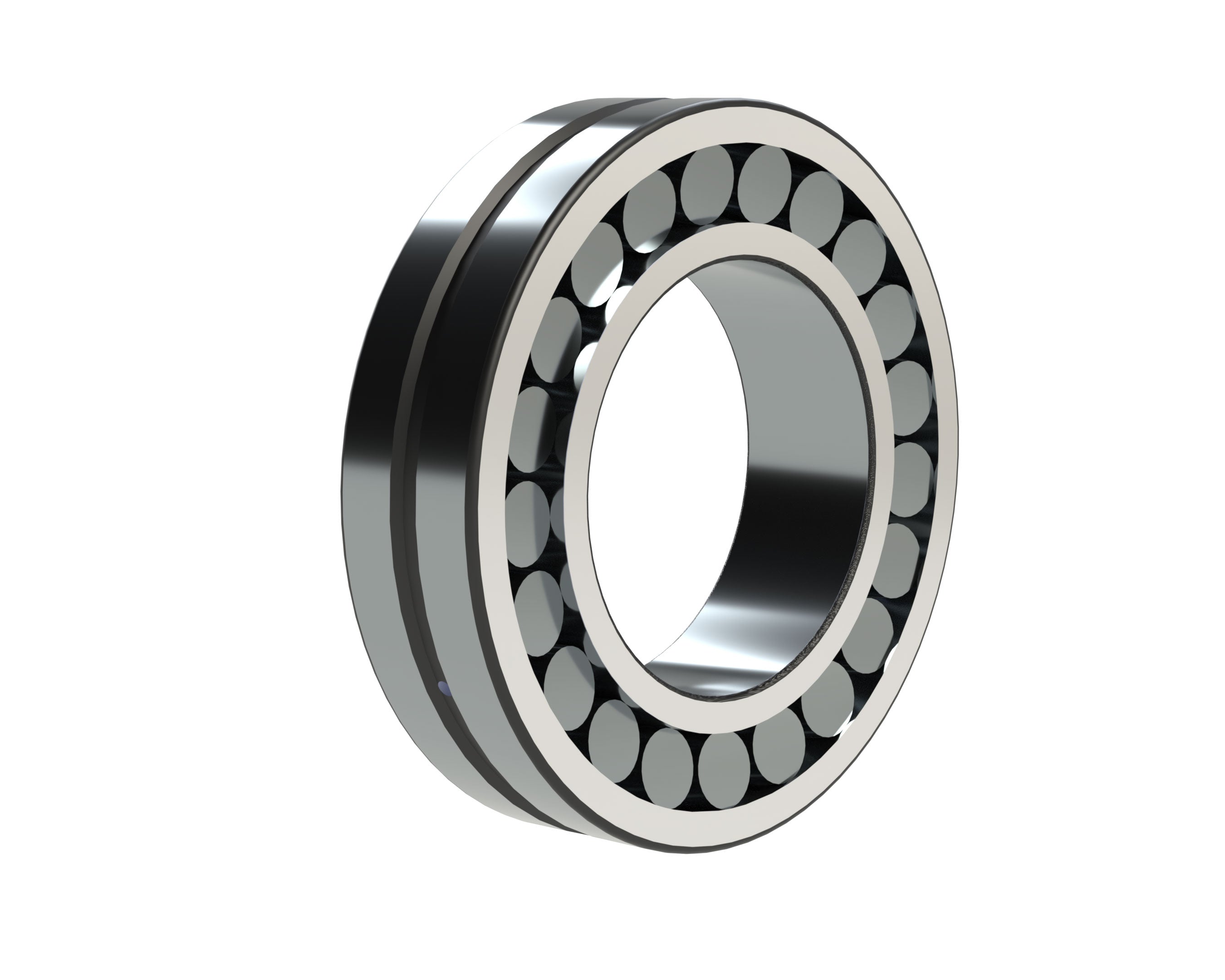

SKF 22210 EK Spherical Roller Bearing - 50 mm ID, 90 mm OD, 23 mm Width, Tapered 1:12 Bore
- Regular price
- $167.00
- Sale price
- $167.00
- Regular price
-
Free Shipping
Free shipping on orders over 100$
Use code: FREESHIP
