About
Description
Bore diameter | 120 mm |
Outside diameter | 215 mm |
Width, total | 43.5 mm |
Width, inner ring | 40 mm |
Width, outer ring | 34 mm |
Contact angle | 16.172 ° |
Performance
Basic dynamic load rating | 417 kN |
Basic static load rating | 465 kN |
Reference speed | 2 400 r/min |
Limiting speed | 3 000 r/min |
SKF performance class | SKF Explorer |
Properties
Bearing part | Complete bearing |
Number of rows | 1 |
Locating feature, bearing outer ring | None |
Bore type | Cylindrical |
Cage | Sheet metal |
Arrangement of contact angle (double-row bearing) | Not applicable |
Matched arrangement | No |
Coating | Without |
Sealing | Without |
Lubricant | None |
Relubrication feature | Without |
Description
Bore diameter | 120 mm |
Outside diameter | 215 mm |
Width, total | 43.5 mm |
Width, inner ring | 40 mm |
Width, outer ring | 34 mm |
Contact angle | 16.172 ° |
Performance
Basic dynamic load rating | 417 kN |
Basic static load rating | 465 kN |
Reference speed | 2 400 r/min |
Limiting speed | 3 000 r/min |
SKF performance class | SKF Explorer |
Properties
Bearing part | Complete bearing |
Number of rows | 1 |
Locating feature, bearing outer ring | None |
Bore type | Cylindrical |
Cage | Sheet metal |
Arrangement of contact angle (double-row bearing) | Not applicable |
Matched arrangement | No |
Coating | Without |
Sealing | Without |
Lubricant | None |
Relubrication feature | Without |
SKF
by
SKF

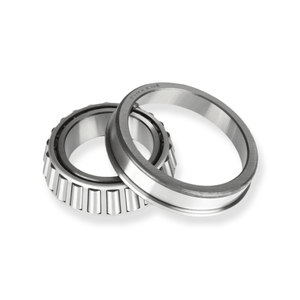

SKF 30224 J2 Tapered Roller Bearing Full Assembly - 120 mm Bore, 215 mm OD, 40 mm Cone Width, 34 mm Cup Width
- Regular price
- $650.00
- Sale price
- $650.00
- Regular price
-
2 in Stock Now
Orders placed before 3:00pm (Est) ship same day
