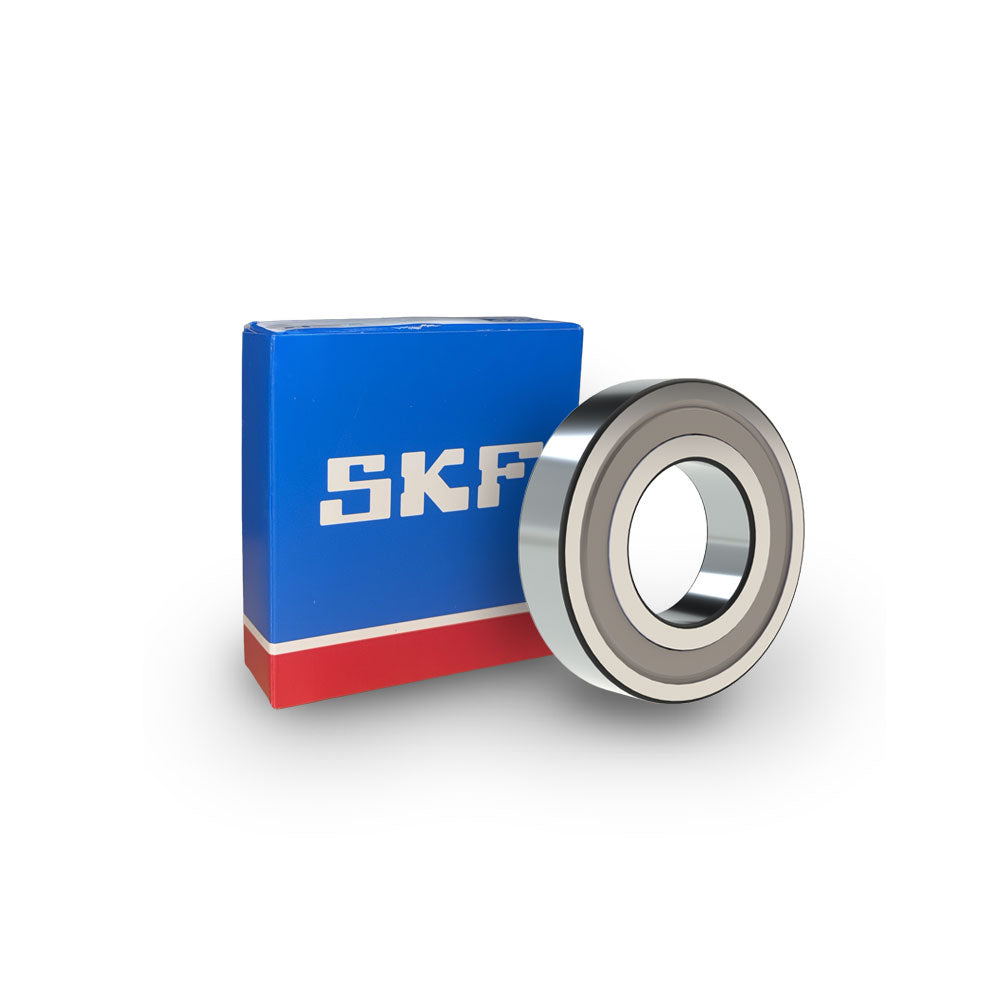

SKF 6201-2Z Deep groove ball bearing with shields
- Regular price
- $6.99
- Sale price
- $6.99
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policy
$610.00
$1,200.00
$1,598.68
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Description
Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
- Integral sealing prolongs bearing service life
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Bearing Specifications
| Category | Specification |
|---|---|
| Dimensions | |
| Bore diameter | 0.472 in |
| Outside diameter | 1.26 in |
| Width | 0.394 in |
| Performance | |
| Basic dynamic load rating | 1,637 lbf |
| Basic static load rating | 697 lbf |
| Reference speed | 50,000 r/min |
| Limiting speed | 26,000 r/min |
| SKF performance class | SKF Explorer |
| Properties | |
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Matched arrangement | No |
| Radial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Shield on both sides |
| Sealing type | Non-contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Logistics | |
| Product net weight | 0.08267 lb |
| eClass code | 23-05-08-01 |
| UNSPSC code | 31171504 |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
