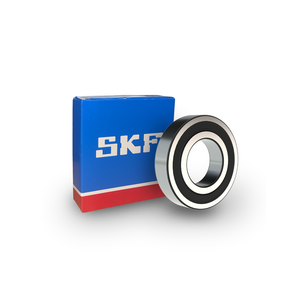

SKF 6303-2RSH/C3 Deep groove ball bearing with seals
Brand:
SKF
- Regular price
- $9.00
- Sale price
- $9.00
- Regular price
-
Shipping calculated at checkout.
100 in Stock Now
Free shipping on orders over $100
Use code at checkout.
FREESHIP
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Need Help?
Call us 1 (248) 429-9073
Key Features
- Integral sealing prolongs bearing service life
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Description
Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Specifications
Dimensions
| Bore Diameter | 0.6693 in |
| Outside Diameter | 1.8504 in |
| Width | 0.5512 in |
Performance
| Basic Dynamic Load Rating | 3 215 lbf |
| Basic Static Load Rating | 1 472 lbf |
| Reference Speed | 34 000 r/min |
| Limiting Speed | 11 000 r/min |
| SKF Performance Class | SKF Explorer |
Properties
| Filling Slots | Without |
| Number of Rows | 1 |
| Locating Feature, Bearing Outer Ring | Without |
| Bore Type | Cylindrical |
| Cage | Sheet metal |
| Matched Arrangement | No |
| Radial Internal Clearance | C3 |
| Material, Bearing | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing Type | Contact |
| Lubricant | Grease |
| Relubrication Feature | Without |
| Indicative Carbon Footprint for New Product | 0.89 lb CO₂e |
Logistics
| Product Net Weight | 0.25 lb |
| eClass Code | 23-05-08-01 |
| UNSPSC Code | 31171504 |
