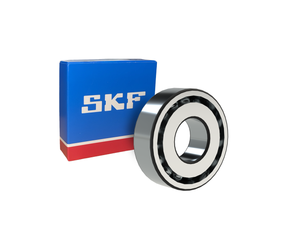

SKF BSD3572 CGA Axial Angular Contact Ball Bearing - 35 mm ID, 72 mm OD, 15 mm Width
- Regular price
- $596.58
- Sale price
- $596.58
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Key Features
- Precision bearing design
- Optimized for moderate to high loads
- Open design for flexibility
- Lightweight and low noise operation
- Precision tolerance class
Description
Axial Angular Contact Ball Bearing and lightweight cage
Axial Angular Contact Ball Bearings have raceways in the inner and outer rings that are displaced relative to each other in the direction of the bearing axis. They are designed to accommodate combined loads. Manufactured to precision tolerance class for demanding applications. Features a lightweight polyamide cage for reduced noise and friction. Suitable for use in a wide range of industrial applications where reliability and performance are essential.
Specifications
Dimensions
| Bore Diameter | 35 mm |
| Outside Diameter | 72 mm |
| Width | 15 mm |
Properties
| Cage | Polyamide cage |
| Contact angle | 62 degree |
| Fixing | Without fixing holes |
| Lubrication hole | Without lubrication groove |
| Material | Standard bearing steel |
| Operating direction | Single direction bearing |
| Preload | Light preload |
| Product range | Single bearing |
| Seal | None, open bearing |
| Temperature range | -20 to +120 °C |
| Tolerance class | Dimensional accuracy P4 or ABEC 7, running accuracy P2 or AB |
Logistics
| Product Net Weight | 0.3 |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
